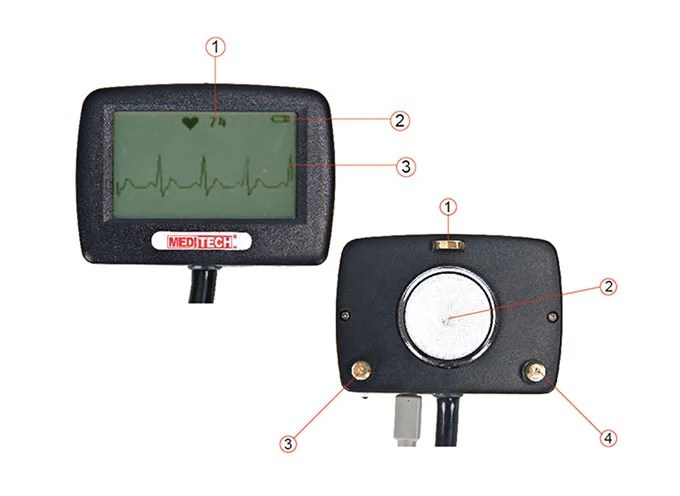

Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output
- Features ECG waveform display and heart rate display
- Includes SpO2 monitor for oxygen saturation measurement
- Displays pulse waveform, pulse rate, and battery power levels
- SKU
- OD-00411
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Multi-functional Visual Stethoscope VS2
Advanced portable diagnostic device combining auscultation sound output with real-time ECG waveform display, heart rate monitoring, and SpO2 measurement. Ideal for clinical assessment, patient monitoring, and point-of-care diagnostics across diverse patient populations.
Clinical overview
The Multi-functional Visual Stethoscope VS2 integrates traditional auscultation with modern digital diagnostics, delivering simultaneous acoustic and visual assessment of cardiac function. The device combines real-time ECG waveform display, heart rate measurement, and non-invasive SpO2 monitoring via external oximeter probe connectivity, enabling comprehensive haemodynamic evaluation in a single, portable instrument.
Designed for clinical environments ranging from primary care to acute settings, the VS2 supports rapid patient assessment, continuous monitoring capability, and extended battery life (20+ hours). Configurable SpO2 probes accommodate neonatal, paediatric, and adult patient populations, with optional accessories for specialized applications including ear clip, forehead, and veterinary monitoring.
Key features & surgeon benefits
Multi-parameter assessment
- Simultaneous auscultation sound output and visual ECG display
- Real-time heart rate, pulse waveform, and SpO2 measurement
- Integrated alarm function for critical threshold detection
Portable & intuitive operation
- Compact handheld design (87 × 63 × 19 mm, 180 g)
- 160 × 96 resolution LCD display with adjustable backlight and contrast
- 20+ hour battery life; USB charging for continuous clinical use
Cost-effective diagnostics
- Single device replaces multiple standalone monitors
- Reduces consumable waste and equipment footprint
- Durable lithium battery and robust construction minimise replacement costs
Flexible probe options
- 13+ SpO2 probe variants: neonatal, paediatric, adult finger clip, soft tip, ear clip, forehead, and veterinary
- Multi-site Y-type probes for simultaneous dual-site monitoring
- Silicone wrap and foam wrap options for enhanced patient comfort
Technical specifications
| Indications | Cardiac auscultation, heart rate monitoring, oxygen saturation measurement, pulse waveform analysis |
|---|---|
| Heart rate range | 30–300 bpm; resolution ±1 bpm; accuracy ±2 bpm |
| SpO2 range | 0–100%; resolution 1%; accuracy ±2% (70–100% range); ±4% in weak perfusion |
| Pulse rate range | 30–250 bpm; resolution 1 bpm; accuracy ±2 bpm or ±2% (select larger) |
| Display | 160 × 96 resolution LCD; 60 × 35 mm display area; adjustable backlight and contrast |
| Physical dimensions | 87 × 63 × 19 mm; weight 180 g (including battery) |
| Battery | Rechargeable lithium; 3.6–4.2 V DC; 20+ hours continuous operation; USB charging |
| Power consumption | < 0.3 VA |
| Operating environment | Temperature 5–40°C; relative humidity 20–80%; atmospheric pressure 70–106 kPa |
| Storage environment | Temperature −10 to +50°C; relative humidity 10–95%; atmospheric pressure 50–106 kPa |
| Safety classification | IEC60601-1:2005 compliant; EMC Group I Class B; Type B applied part; IPX1 liquid protection |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| SpO2 Cable (Adult) | Standard adult finger clip probe | 1 |
| USB Cable | For device charging and data transfer | 1 |
| USB Charger | Power adapter for battery charging | 1 |
| Cleaning Cloth | Microfibre cloth for display and sensor maintenance | 1 |
Optional SpO2 Probes: Neonatal, paediatric finger clip, adult finger clip, child finger clip, adult soft tip, child soft tip, infant soft tip, neonatal silicone wrap, multi-site Y-type, separate wrap, adult ear clip, veterinary tongue clip, multi-site clip, adult forehead, multi-site Y-type with foam wrap.
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customised probe configurations for your clinical setting.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
