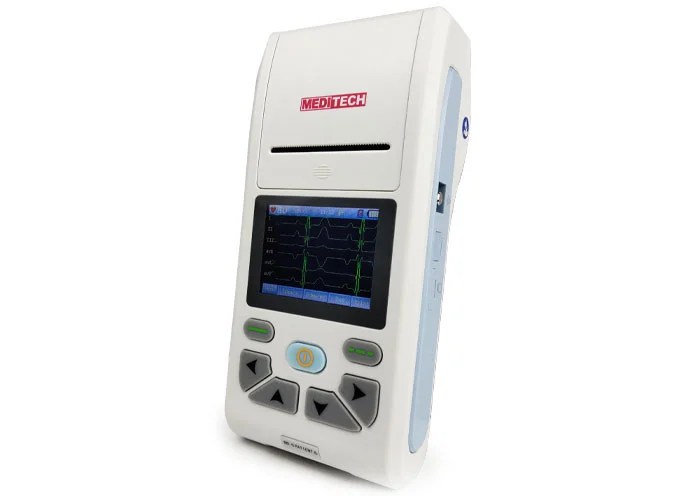

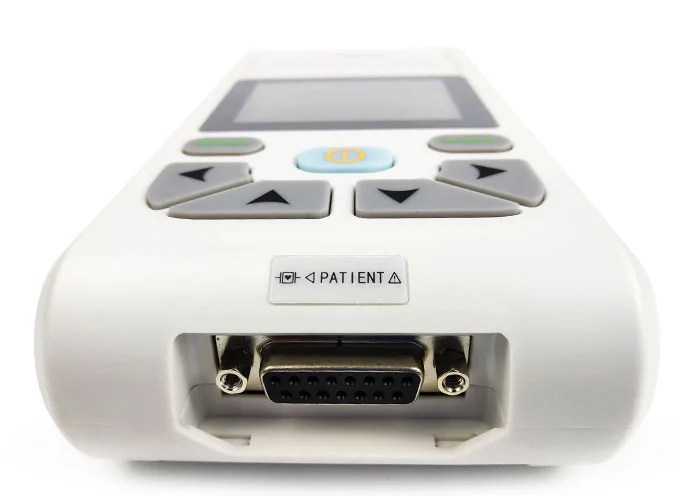

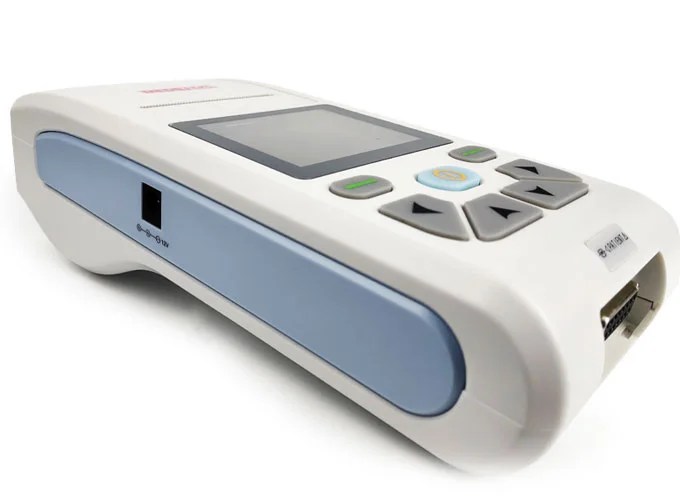

ECG Handheld Single Channel ECG101T
- High resolution thermal-array output system (8 dots/mm) 150Hz
- Large screen displays 12/6/3/1 Lead(s) and real-time remarks
- Safety Class: Class I Type CF with defibrillation protection
- Record and review up to 450 ECG cases
- Digital signal processing for higher quality ECG
- Lightweight and compact design
- Comes with PC Software for data transfer
- SKU
- OD-450
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ECG Handheld Single Channel ECG101T
Portable, high-resolution 12-lead ECG system with thermal-array printing, digital signal processing, and integrated data storage. Ideal for rapid patient assessment in clinical and field settings with Class I Type CF defibrillation protection.
Clinical overview
The ECG101T is a compact, handheld 12-lead electrocardiograph designed for rapid cardiac assessment in diverse clinical environments. Its high-resolution thermal-array output system (8 dots/mm at 150 Hz) delivers diagnostic-quality ECG tracings with real-time lead display and automated measurement parameters. The device combines Class I Type CF defibrillation protection with advanced digital signal processing (AC DFT and EMG filtering) to ensure reliable, artifact-free recordings even in electrically challenging settings.
With capacity to record and review up to 450 ECG cases, integrated SD card storage for up to 100 cases, and USB 2.0 connectivity with included PC software (CardioSoft Pro), the ECG101T supports efficient workflow integration and comprehensive patient data management. Dual power supply (AC 100–110V/240V and rechargeable 7.4 V lithium polymer battery) enables 4-hour continuous operation, making it suitable for both fixed clinical installations and mobile diagnostic programs.
Key features & surgeon benefits
High-Resolution Output
- 8 dots/mm thermal-array printing at 150 Hz sampling
- 12/6/3/1 lead display modes with real-time remarks
- Digital signal processing for superior ECG clarity
Rapid Assessment & Storage
- Auto-measurement and auto-diagnosis of ECG parameters
- Record up to 450 cases with instant review capability
- Selectable print modes and variable paper speeds (5–50 mm/s)
Compact & Lightweight Design
- 207 × 96 × 62 mm footprint; 0.5 kg net weight
- Dual power: AC mains and 4-hour rechargeable battery
- Touch TFT screen for intuitive operation
Integrated Connectivity
- USB 2.0 and external SD card (up to 100 cases)
- PC software (CardioSoft Pro) for data transfer and analysis
- Flexible synchronisation and storage modes
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, routine ECG screening |
|---|---|
| Lead configuration | Standard 12 leads |
| Recording system | Thermal-array printing; 50 mm (W) × 20 m (L) high-speed thermal paper |
| Resolution | 8 dots/mm; 150 Hz sampling rate |
| Paper speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Input impedance | ≥5 MΩ |
| Frequency response | 1–75 Hz |
| CMRR | >60 dB |
| EMG filter | 25/35 Hz (-3 dB) |
| Patient leak current | <10 μA |
| Noise level | ≤15 μVp-p |
| Safety classification | Class I Type CF with defibrillation protection |
| Power supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4 V, 3700 mAh rechargeable lithium polymer battery |
| Battery runtime | Up to 4 hours continuous operation (DC mode) |
| Data storage | 450 ECG cases internal; external SD card (up to 100 cases) |

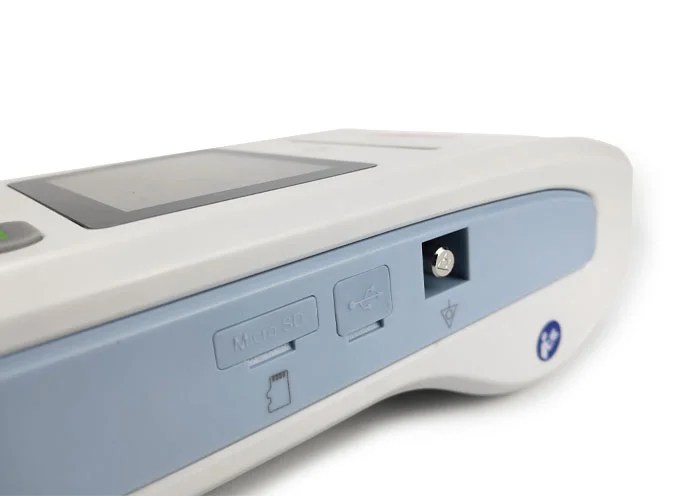

| Connectivity | USB 2.0; SD card slot |
| Dimensions | 207 mm (L) × 96 mm (W) × 62 mm (H) |
| Net weight | 0.5 kg |
| Operating environment | Temperature: +5 to +35 °C; Humidity: ≤80%; Pressure: 86–106 kPa |
| Storage environment | Temperature: -10 to +55 °C; Humidity: ≤95%; Pressure: 50–106 kPa |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard 12-lead chest electrode set | 6 |
| Clamp Electrode | Limb lead clamp electrodes | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | USB 2.0 data transfer cable | 1 |
| PC Software | CardioSoft Pro ECG analysis and management software | 1 |
| Ground Wire | Patient ground reference wire | 1 |
| Thermal Paper Roll | 50 mm × 20 m high-speed thermal paper | 1 |
| Power Cable | AC mains power cable (100–110V/240V) | 1 |
| Cleaning Cloth | Microfibre cleaning cloth for display and sensors | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quotation, arrange a demonstration, or discuss customisation options for the ECG101T. We provide rapid delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

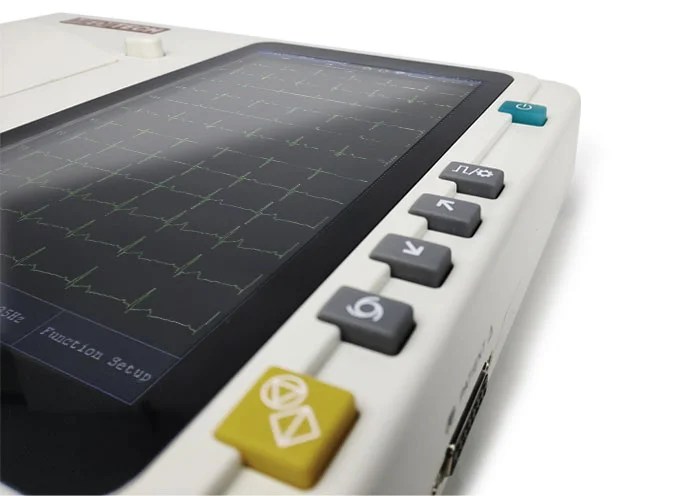

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
- Slim and lightweight 3-channel ECG machine - Large color touch screen for easy operation - Precise auto-interpretation program for accurate results - Simultaneous 3 leads ECG printing on 80mm thermal paper - Multiple operation modes: automatic, manual, arrhythmia analysis - Lead-off detection for reliable readings - Built-in rechargeable battery with 2 hours of continuous use

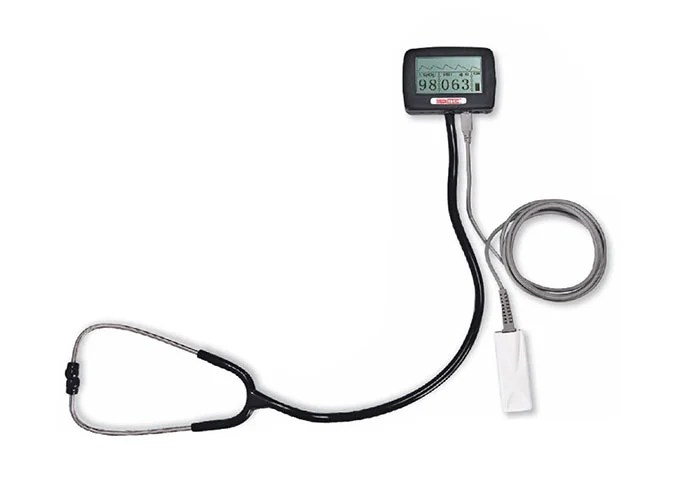

Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output - Features ECG waveform display and heart rate display - Includes SpO2 monitor for oxygen saturation measurement - Displays pulse waveform, pulse rate, and battery power levels
HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
- HeartRec® Lite Holter ECG Ambulatory ECG Analysis System with automatic duplex operation - Two work modes: 12-lead / 3-Channel switchable by changing patient cable - Compact size and light weight for easy portability - Fully programmable with high fidelity research-grade performance - Lightning data transfer with up to 7 days of recording - Includes EKG cable, plastic and leather case, batteries, SD card, and cleaning cloth; options for rechargeable battery and Panasonic charger available

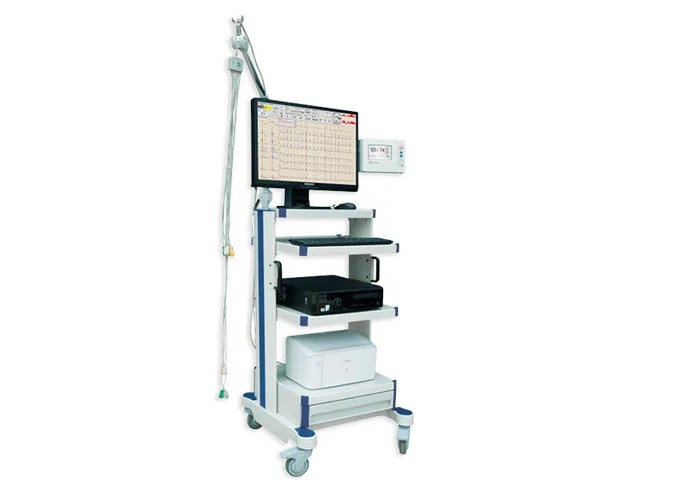

Cardios Pro Stress Test System
- Cardios Pro Stress Test System for comprehensive evaluation of exercise stress test - Features high resolution A/D for accurate measurements - Utilizes patented Meditech technology for precise results - Includes different selectable filters for enhanced data analysis - Offers various trends and live arrhythmia detection for thorough review

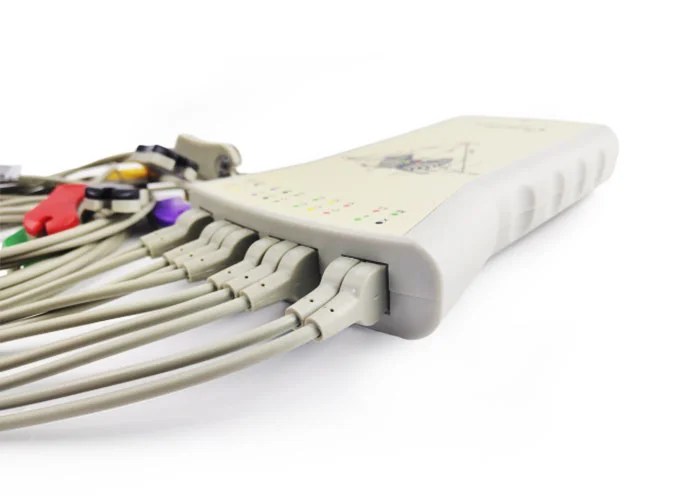

Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG with automatic measurement and interpretation - Pacemaker analysis feature for advanced cardiac monitoring - Multi-form printing capability for easy data visualization - One key operation for simplified use - VCG and VLP options for enhanced diagnostic capabilities - Isolated USB for secure data transfer - Comes with standard chest and clamp electrodes, plus cleaning cloth; optional PC accessories, trolley, and printer accessories available

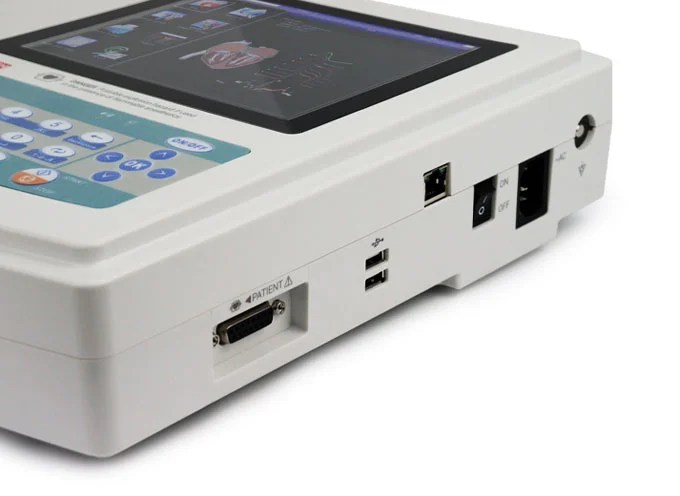

ECG Machine with 8 inch Touch and Color Screen ECG1212T
- 12 Channel Electrocardiograph - 8" TFT Color Screen - Touch screen and soft keyboard control for convenient operation - Simultaneous display of 12 leads - Auto-analysis and auto-interpretation - Up to 10,000 cases in internal memory - Provides more than 10 printing modes.

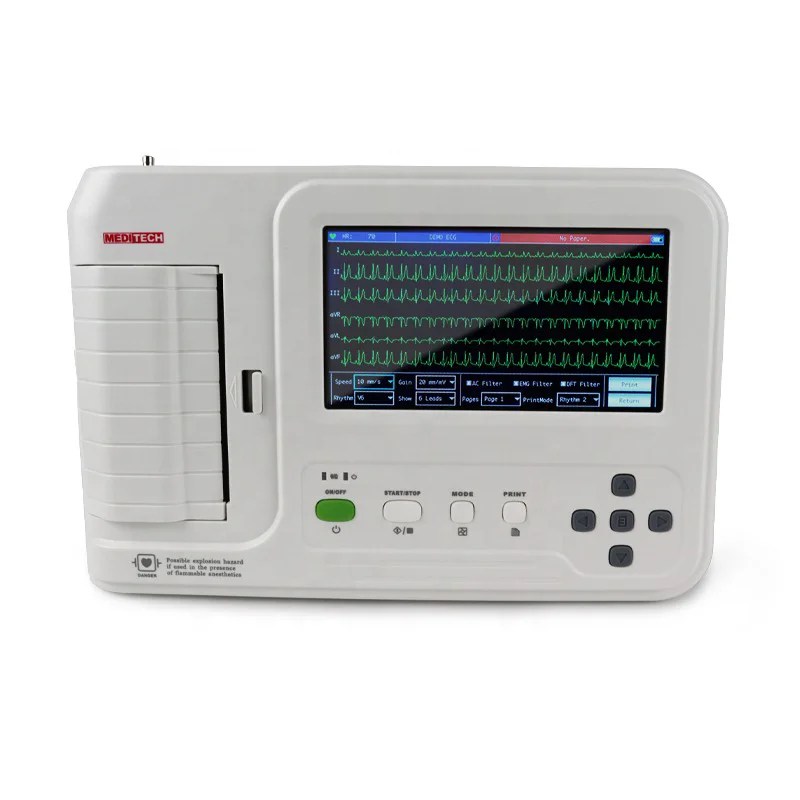

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
