Holter ECG Monitor Heart Rec ECO
- Compact design with OLED display
- 12 leads synchro analysis for more accurate QRS search
- Automatic Duplex Operation with 12 Channel and 3 Channel options
- Over 10 templates for various arrhythmia modules
- Atrial fibrillation analysis for quick and accurate diagnosis
- Powerful pacemaker analysis for different types of pacemakers
- Heart rate variability analysis for predicting risk of death and preventing arrhythmia
- SKU
- OD-00402
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

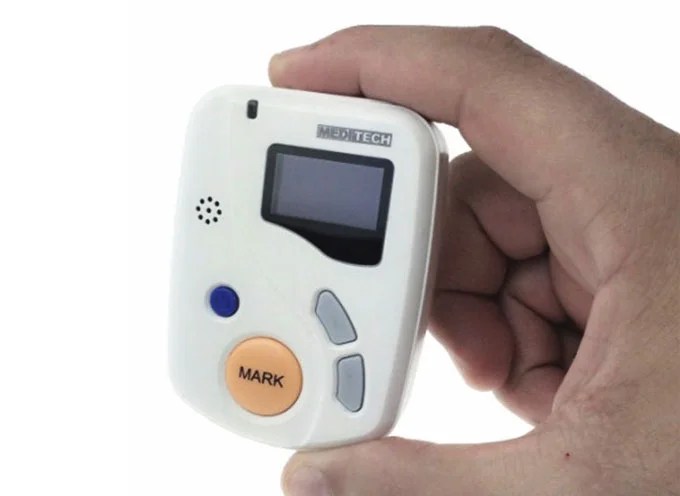

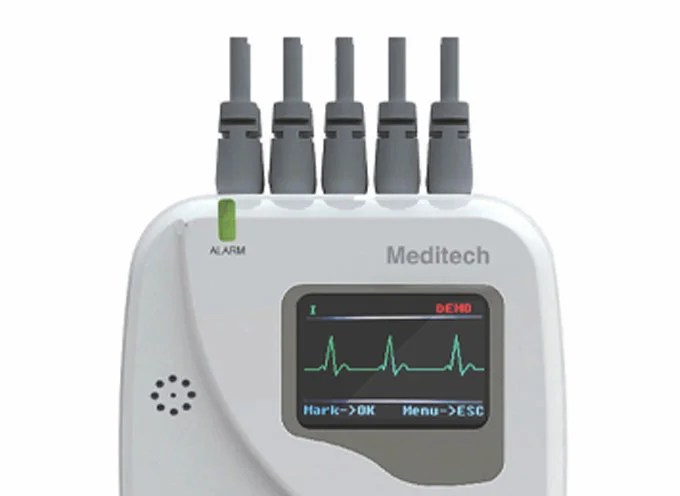

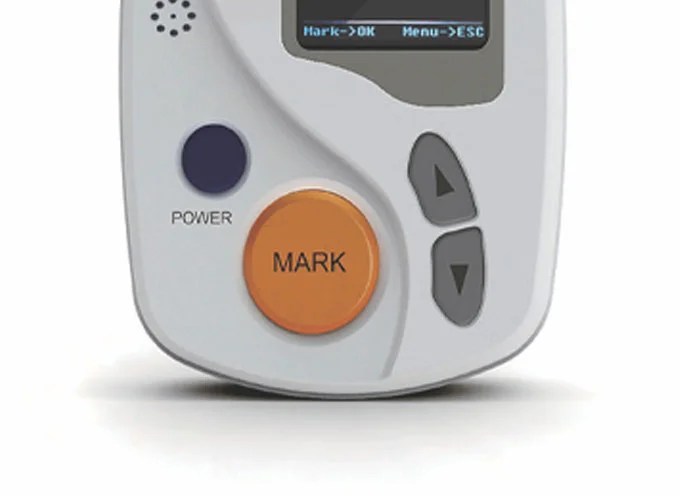

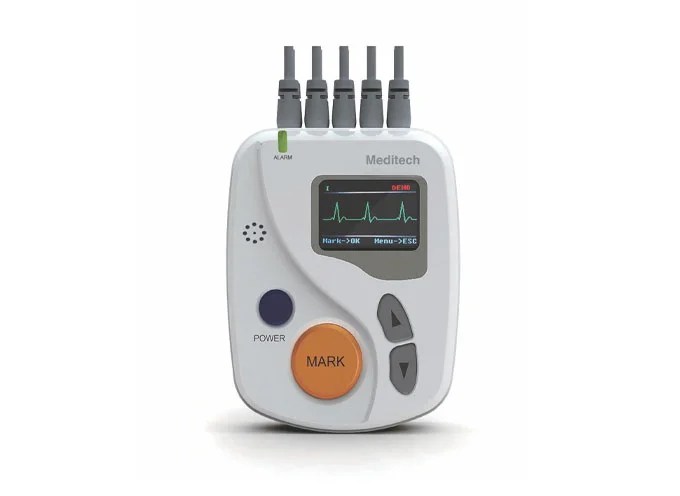

Holter ECG Monitor Heart Rec ECO
Compact 12-lead Holter ECG recorder with OLED display and advanced arrhythmia analysis. Delivers accurate QRS detection, atrial fibrillation assessment, and heart rate variability analysis for comprehensive cardiac monitoring and risk stratification.
Clinical overview
The Holter ECG Monitor Heart Rec ECO is a portable 12-lead cardiac recording system designed for comprehensive ambulatory ECG monitoring. With its clear operating interface and intuitive analysis software, clinicians can efficiently review, classify, and analyse stored ECG waveforms. The device supports multiple analysis functions including arrhythmia detection, heart rate variability (HRV), QT dispersion (QTD), and T-wave alternation (TWA).
The system features synchronous 12-lead isochronous ECG sampling with advanced QRS detection algorithms, enabling precise identification of cardiac abnormalities. Flexible atrial fibrillation analysis allows physicians to combine segmented automatic and manual assessment for rapid, accurate diagnosis. Powerful pacemaker analysis covers all major pacemaker types (AAI, VVI, DDD), while heart rate turbulence analysis predicts mortality risk in post-MI patients.
Key features & surgeon benefits
Comprehensive Arrhythmia Detection
- Over 10 pre-configured templates for atrial premature beats, ventricular premature beats, atrial flutter, atrial fibrillation, and long-interval arrhythmias
- User-defined templates for identification of rare or patient-specific pathological waveforms
- Automatic and manual analysis modes for flexible workflow
Portable & Easy-to-Use Design
- Compact form factor (80.5 × 59.5 × 22 mm) with OLED display for bedside or ambulatory use
- Removable TF card storage (up to 2GB) for flexible data management
- AAA battery operation with 60-hour endurance on standard batteries
Prognostic & Predictive Indices
- Heart rate variability analysis (5-minute and 1-hour modes) for comprehensive autonomic assessment
- Heart rate turbulence analysis to predict mortality risk in myocardial infarction patients
- T-wave alternation analysis for arrhythmia prevention and risk assessment
Dual-Mode Recording & Analysis
- Automatic duplex operation: 12-channel (10-wire) or 3-channel (5-wire/7-wire selectable)
- Separated electrodes for easy replacement and maintenance
- VCG, VLP, TVCG, and QTD analysis functions for enhanced diagnostic value
Technical specifications
| Indications | Arrhythmia detection, atrial fibrillation analysis, pacemaker assessment, HRV monitoring, myocardial infarction risk prediction |
|---|---|
| Sizes / range | 12-channel (10-wire cable) and 3-channel (5-wire or 7-wire selectable) |
| Material | Medical-grade electronics with OLED display |
| Sterilisation | As applicable |
| Packaging | Leather case, ECG cable, 2 × AAA batteries, SD card, cleaning cloth |
| Warranty | 2 Year Manufacturer Warranty |
Technical parameters
| Parameter | Specification |
|---|---|
| Scale voltage | 1 mV ±5% |
| Standard sensitivity | 10 mm/mV ±5% |
| Noise level | ≤30 μV p-p |
| CMRR | ≥60 dB |
| Frequency response | 0.5 Hz–55 Hz (−3 dB); 10 Hz benchmark |
| Time constant | ≥3.2 s |
| Scan speed | 25 mm/s ±5% |
| Polarization voltage endurance | ±300 mV DC; sensitivity shift ≤±10% |
| Minimum measurable signal | 50 μV p-p |
| Inter-channel interference | ≤0.5 mm scan track deflection |
| Product safety type | Type B (internally powered) |
| Dimensions | 80.5 mm (L) × 59.5 mm (W) × 22 mm (H) |
| Net weight | 61.5 g (without battery) |
| Battery life | 60 hours on standard AAA batteries |
| Storage capacity | Removable TF card up to 2 GB |
| Operating temperature | 10 °C–45 °C |
| Operating humidity | ≤85% (no condensation) |
| Operating pressure | 860–1060 hPa |
| Storage temperature | −40 °C to +55 °C |
| Storage humidity | ≤85% |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 12-lead or 3-lead configuration | 1 |
| Leather Case | Protective carrying case | 1 |
| Battery | AAA size | 2 |
| SD Card | Data storage | 1 |
| Cleaning Cloth | Device maintenance | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Rechargeable Battery | Extended-use power solution |
| Charger (Panasonic) | Compatible charging unit for rechargeable batteries |
Get in touch for pricing & availability
Contact our sales team to request a quotation, discuss clinical requirements, or arrange a product demonstration. We provide fast delivery, comprehensive technical support, and customisation options to meet your facility's cardiac monitoring needs.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

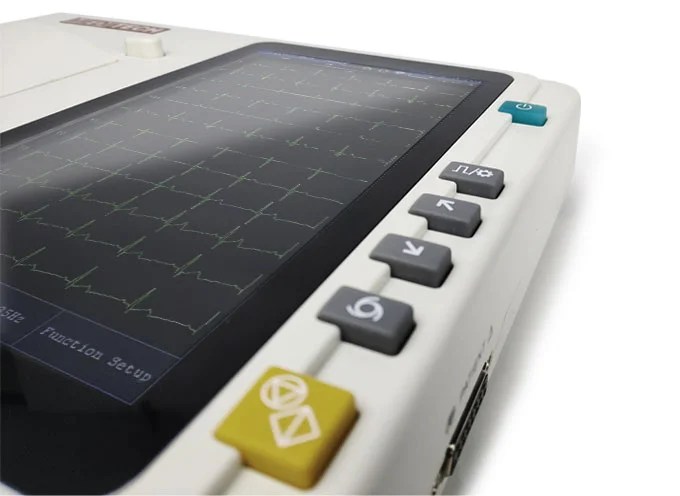

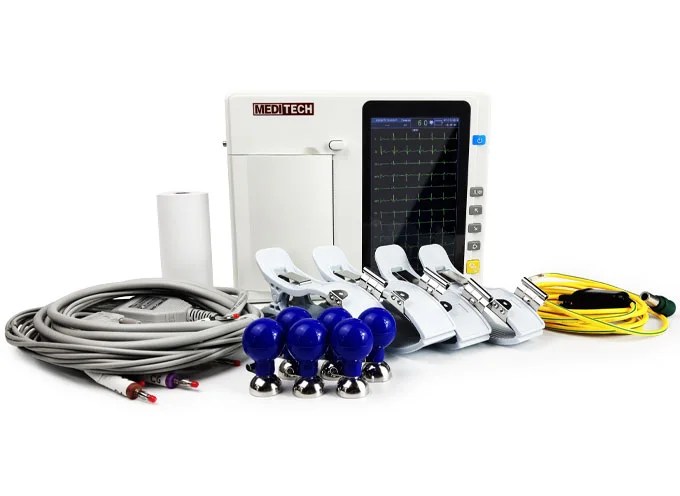

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
- Slim and lightweight 3-channel ECG machine - Large color touch screen for easy operation - Precise auto-interpretation program for accurate results - Simultaneous 3 leads ECG printing on 80mm thermal paper - Multiple operation modes: automatic, manual, arrhythmia analysis - Lead-off detection for reliable readings - Built-in rechargeable battery with 2 hours of continuous use
Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output - Features ECG waveform display and heart rate display - Includes SpO2 monitor for oxygen saturation measurement - Displays pulse waveform, pulse rate, and battery power levels
HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
- HeartRec® Lite Holter ECG Ambulatory ECG Analysis System with automatic duplex operation - Two work modes: 12-lead / 3-Channel switchable by changing patient cable - Compact size and light weight for easy portability - Fully programmable with high fidelity research-grade performance - Lightning data transfer with up to 7 days of recording - Includes EKG cable, plastic and leather case, batteries, SD card, and cleaning cloth; options for rechargeable battery and Panasonic charger available

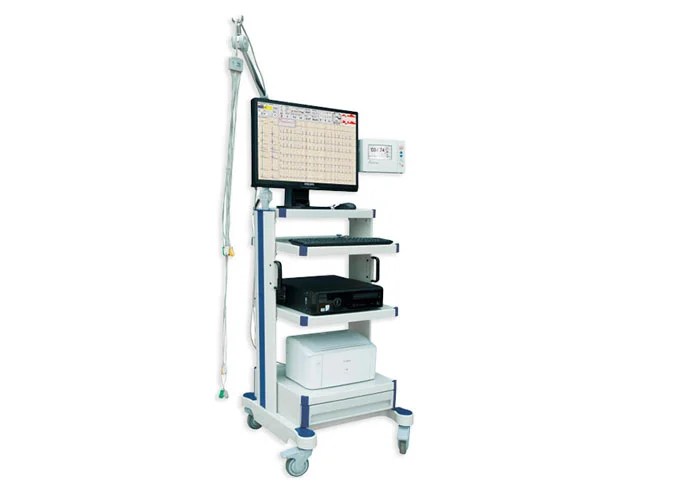

Cardios Pro Stress Test System
- Cardios Pro Stress Test System for comprehensive evaluation of exercise stress test - Features high resolution A/D for accurate measurements - Utilizes patented Meditech technology for precise results - Includes different selectable filters for enhanced data analysis - Offers various trends and live arrhythmia detection for thorough review

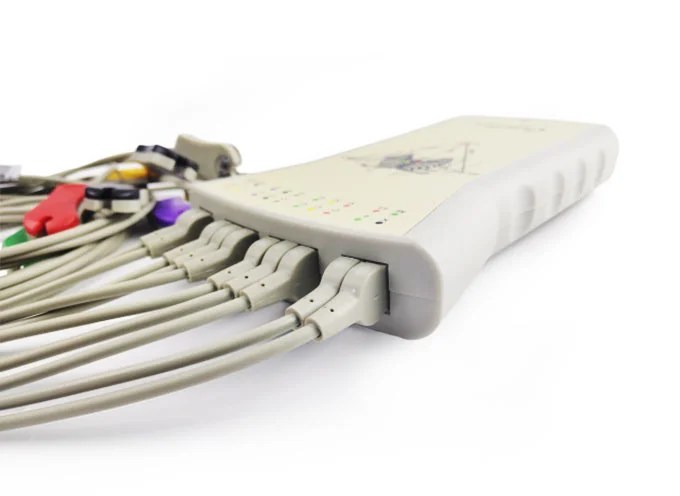

Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG with automatic measurement and interpretation - Pacemaker analysis feature for advanced cardiac monitoring - Multi-form printing capability for easy data visualization - One key operation for simplified use - VCG and VLP options for enhanced diagnostic capabilities - Isolated USB for secure data transfer - Comes with standard chest and clamp electrodes, plus cleaning cloth; optional PC accessories, trolley, and printer accessories available

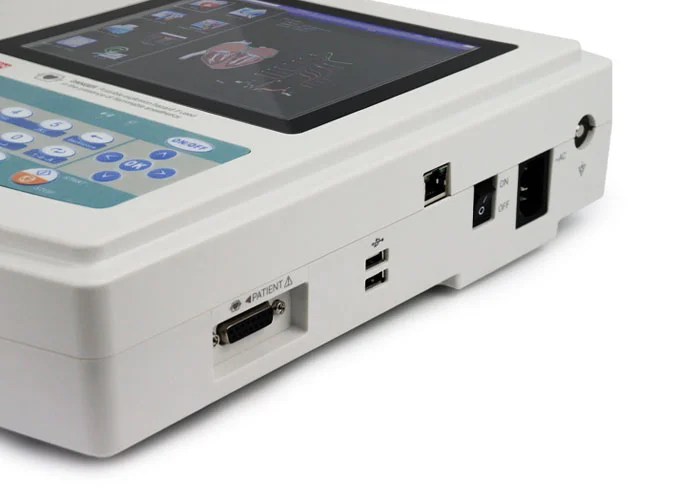

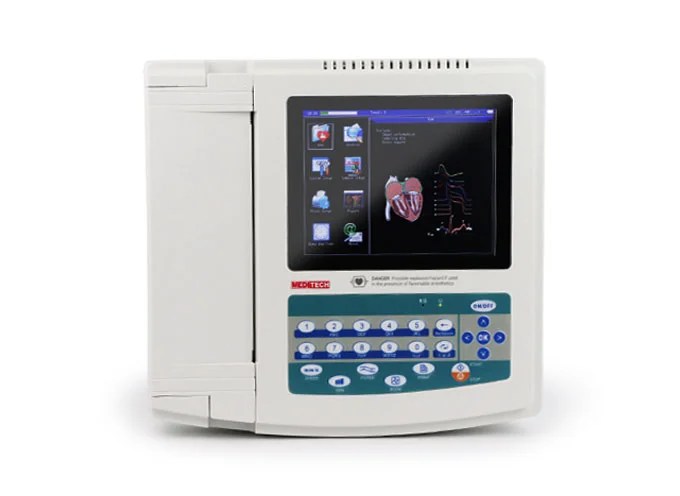

ECG Machine with 8 inch Touch and Color Screen ECG1212T
- 12 Channel Electrocardiograph - 8" TFT Color Screen - Touch screen and soft keyboard control for convenient operation - Simultaneous display of 12 leads - Auto-analysis and auto-interpretation - Up to 10,000 cases in internal memory - Provides more than 10 printing modes.

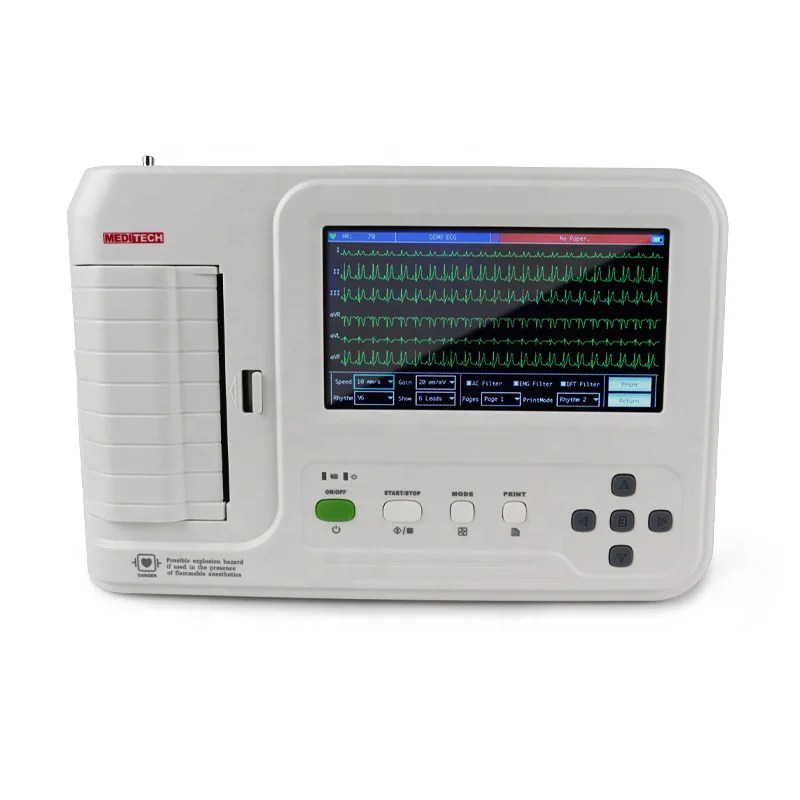

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
