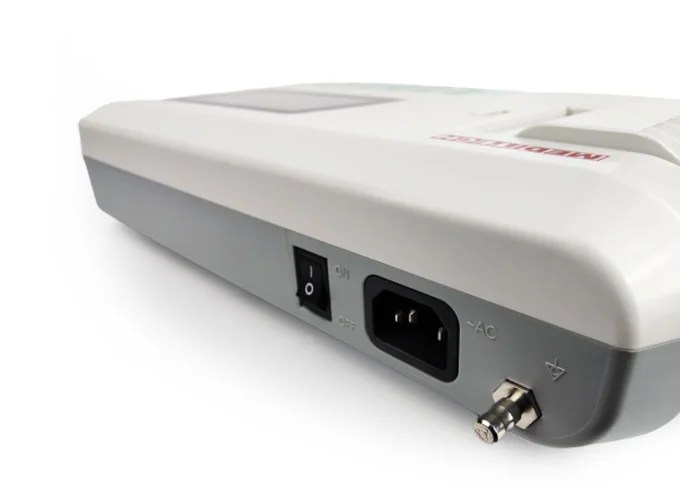

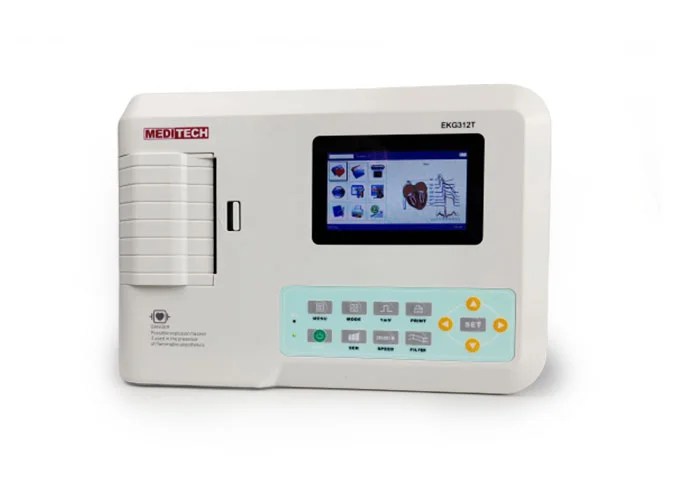

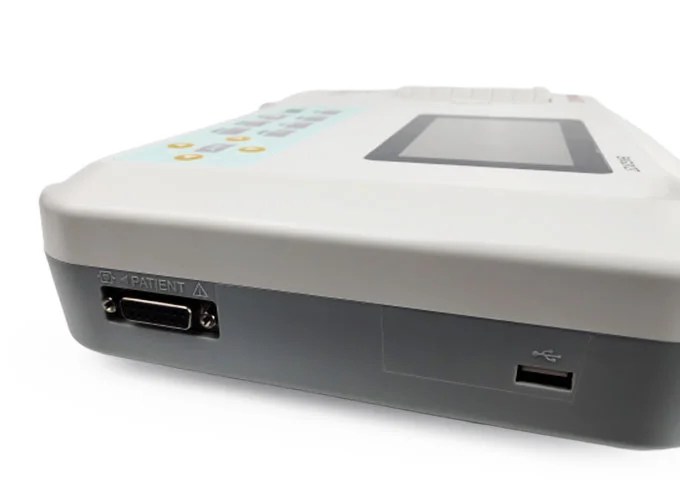

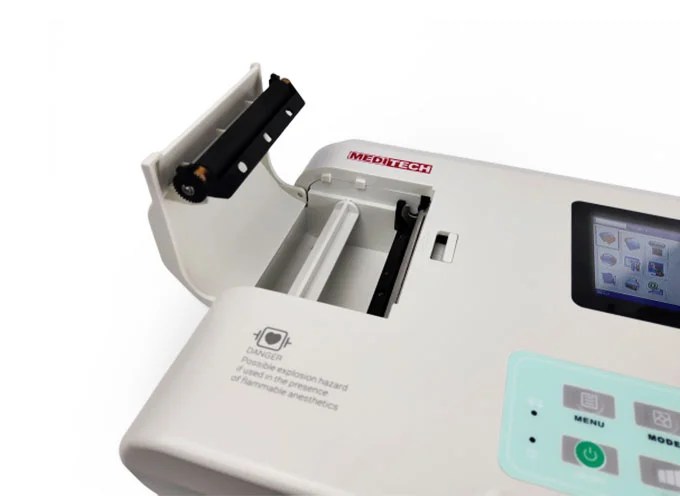

Color&Touch Screen ECG Machine ECG312T
- 3 Channel Electrocardiograph with a TFT Color screen
- Touch screen and soft keyboard control for convenient operation
- Simultaneous display of 12 leads
- Auto-analysis and auto-interpretation capabilities
- Multiple printing modes available
- Internal memory storing more than 1000 cases
- ECG-Sync software option for PC connectivity
- SKU
- OD-1000
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Color & Touch Screen ECG Machine ECG312T
Advanced 3-channel electrocardiograph with high-resolution TFT color display, touch screen control, and simultaneous 12-lead visualization. Features auto-analysis, auto-interpretation, and extensive internal memory for comprehensive cardiac diagnostics in clinical and hospital settings.
Clinical overview
The ECG312T is a professional-grade 3-channel electrocardiograph designed for rapid, accurate cardiac assessment in hospital, clinic, and emergency care environments. The high-resolution TFT color display (480 × 270 pixels, 16:9 aspect ratio) provides clear visualization of all 12 leads simultaneously, enabling clinicians to identify arrhythmias, ischemia, and conduction abnormalities with confidence. Touch screen and soft keyboard controls streamline workflow, reducing operator fatigue and improving throughput.
With integrated auto-analysis and auto-interpretation algorithms, the ECG312T delivers consistent, evidence-based diagnostic support. The thermal array printing system supports multiple recording modes and paper speeds, while internal memory stores over 1,000 cases for longitudinal comparison and quality assurance. Optional ECG-Sync software enables seamless integration with hospital information systems and electronic health records via USB connectivity.
Key features & surgeon benefits
High-Resolution Color Screen
- 480 × 270 pixel TFT display with 16:9 widescreen format
- Simultaneous 12-lead visualization for comprehensive rhythm assessment
- Touch screen and soft keyboard for intuitive, ergonomic operation
Efficient Recording & Analysis
- Auto-analysis and auto-interpretation with evidence-based algorithms
- Multiple printing modes (10+) and paper speeds (5–50 mm/s)
- Continuous printing capability: 90 minutes of recording, 150+ ECGs per session
Comprehensive Memory & Storage
- Internal memory stores 1,000+ patient cases for longitudinal comparison
- Optional ECG-Sync software for PC integration and EHR connectivity
- Multi-language support (English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish)
Advanced Filtering & Protection
- AC, baseline, and EMG filters for clean signal acquisition
- Input impedance ≥5 MΩ; patient leak current <10 μA
- Class I Type CF defibrillation-proof applied part; floating input protection
Technical specifications
| Lead Configuration | Standard 12 leads |
|---|---|
| Display | TFT Color Screen, 480 × 270 pixels, 16:9 aspect ratio |
| Input Impedance | ≥5 MΩ |
| Patient Leak Current | <10 μA |
| Frequency Response | 1 Hz – 75 Hz |
| Time Constant | >3.2 seconds |
| CMRR | >60 dB |
| EMG Filter | 25/35 Hz (-3 dB) |
| Noise Level | ≤15 μV peak-to-peak |
| Paper Speed (Auto/Rhythm) | 25 mm/s, 50 mm/s (±5% error) |
| Paper Speed (Manual) | 5, 6.25, 10, 12.5, 25, 50 mm/s (±5% error) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5% error; standard 10 mm/mV ±0.2 mm/mV) |
| Recording System | Thermal array printing |
| Continuous Print Capability | 90 minutes recording; 150+ ECGs per session |
| Internal Memory | 1,000+ patient cases |
| Measurement Parameters | HR, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1) |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Enduring Polarization Voltage | ±300 mV |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% relative humidity |
| Power Supply | AC: 100–110V/240V, 50/60 Hz; DC: 7.4 V, 3700 mAh rechargeable lithium battery |
| Atmospheric Pressure (Operating) | 86 kPa – 106 kPa |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% relative humidity |
| Storage Pressure | 50 kPa – 106 kPa |
| Fuse Specification | 2 × φ5×20 mm AC time lag; T1.6A/250V (110V/220V supply) |
| Languages Supported | English, Chinese, Spanish, Italian, German, French, Russian, Portuguese, Polish, Turkish |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard 12-lead electrode set | 6 |
| Clamp Electrode | Limb lead clamps | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | PC connectivity cable | 1 |
| Software CD | CardioSoft Pro diagnostic software | 1 |
| Ground Wire | Patient ground reference | 1 |
| Thermal Paper Roll | ECG recording paper | 1 |
| Power Cable | AC mains power cord | 1 |
| Cleaning Cloth | Display and electrode maintenance | 1 |
Optional Accessories: Protective case, thermal paper rolls, mobile trolley, PC/computer accessories, printer accessories.
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery schedules, and customisation options for the ECG312T. We provide comprehensive technical support and clinical training to ensure optimal integration into your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

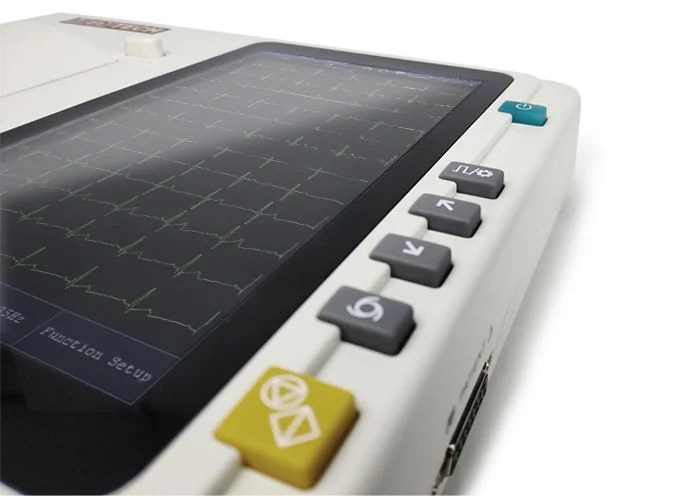

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
- Slim and lightweight 3-channel ECG machine - Large color touch screen for easy operation - Precise auto-interpretation program for accurate results - Simultaneous 3 leads ECG printing on 80mm thermal paper - Multiple operation modes: automatic, manual, arrhythmia analysis - Lead-off detection for reliable readings - Built-in rechargeable battery with 2 hours of continuous use

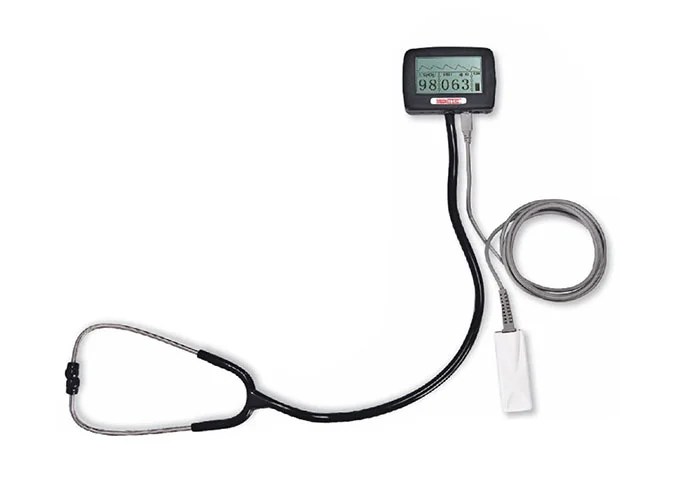

Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output - Features ECG waveform display and heart rate display - Includes SpO2 monitor for oxygen saturation measurement - Displays pulse waveform, pulse rate, and battery power levels

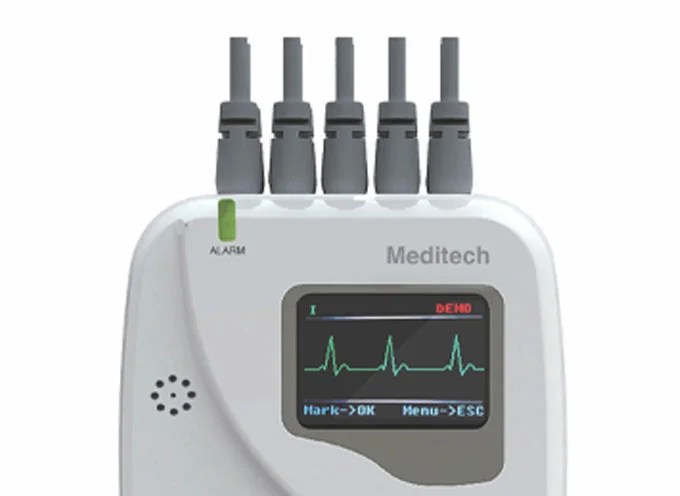

HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
- HeartRec® Lite Holter ECG Ambulatory ECG Analysis System with automatic duplex operation - Two work modes: 12-lead / 3-Channel switchable by changing patient cable - Compact size and light weight for easy portability - Fully programmable with high fidelity research-grade performance - Lightning data transfer with up to 7 days of recording - Includes EKG cable, plastic and leather case, batteries, SD card, and cleaning cloth; options for rechargeable battery and Panasonic charger available

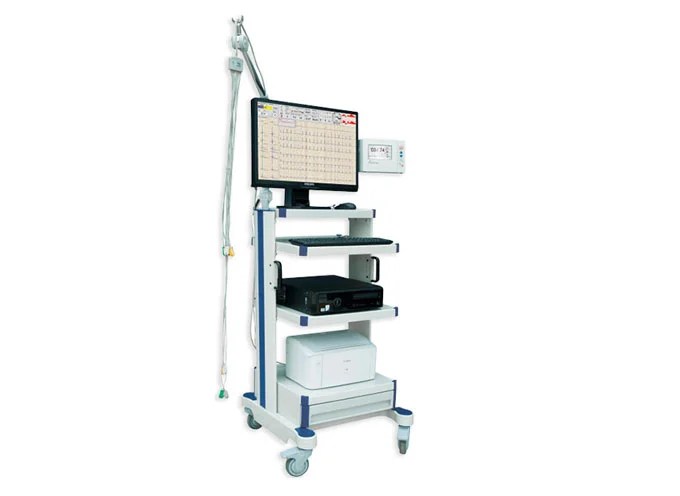

Cardios Pro Stress Test System
- Cardios Pro Stress Test System for comprehensive evaluation of exercise stress test - Features high resolution A/D for accurate measurements - Utilizes patented Meditech technology for precise results - Includes different selectable filters for enhanced data analysis - Offers various trends and live arrhythmia detection for thorough review

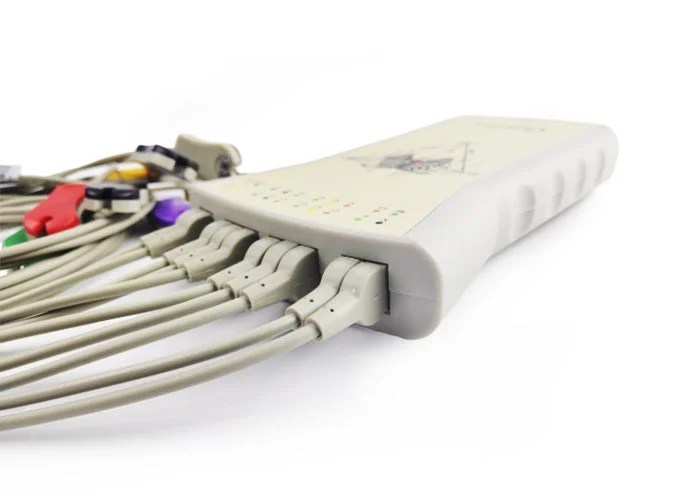

Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG with automatic measurement and interpretation - Pacemaker analysis feature for advanced cardiac monitoring - Multi-form printing capability for easy data visualization - One key operation for simplified use - VCG and VLP options for enhanced diagnostic capabilities - Isolated USB for secure data transfer - Comes with standard chest and clamp electrodes, plus cleaning cloth; optional PC accessories, trolley, and printer accessories available

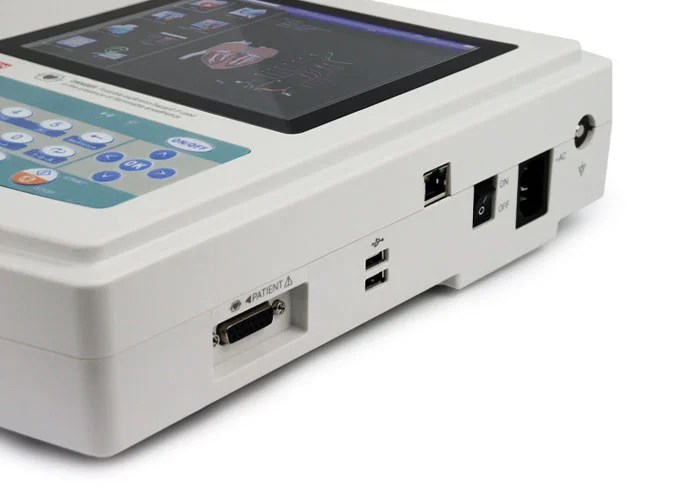

ECG Machine with 8 inch Touch and Color Screen ECG1212T
- 12 Channel Electrocardiograph - 8" TFT Color Screen - Touch screen and soft keyboard control for convenient operation - Simultaneous display of 12 leads - Auto-analysis and auto-interpretation - Up to 10,000 cases in internal memory - Provides more than 10 printing modes.

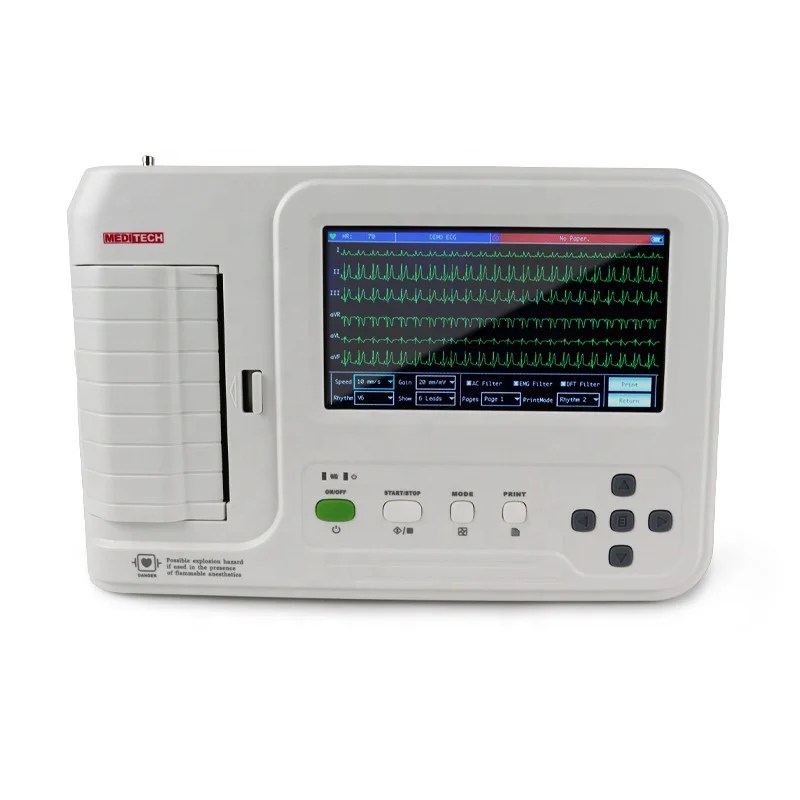

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
