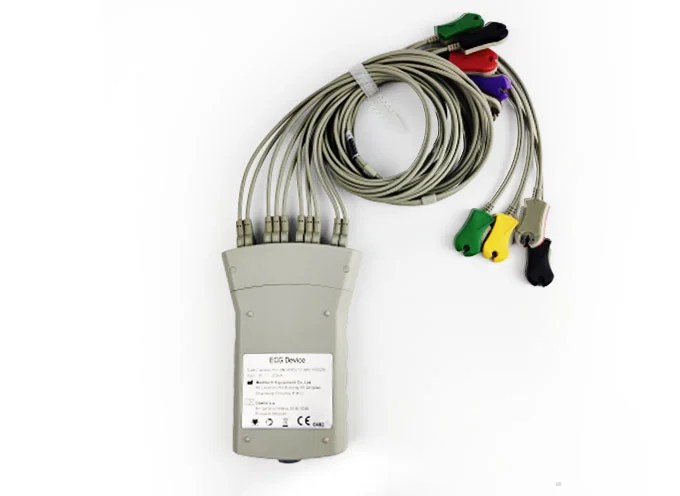

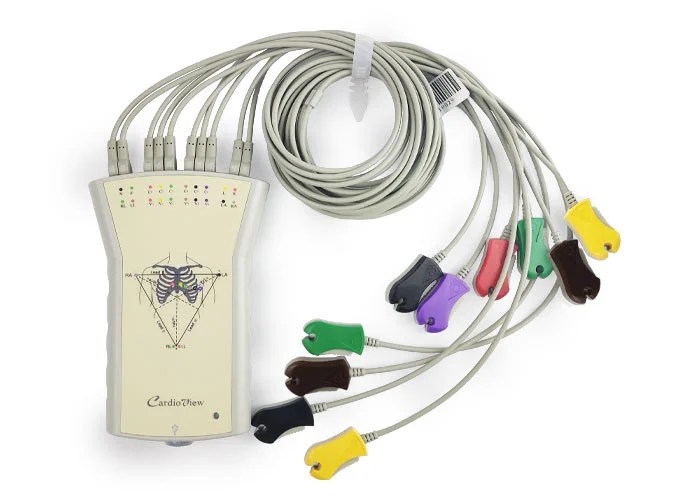

Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG with automatic measurement and interpretation
- Pacemaker analysis feature for advanced cardiac monitoring
- Multi-form printing capability for easy data visualization
- One key operation for simplified use
- VCG and VLP options for enhanced diagnostic capabilities
- Isolated USB for secure data transfer
- Comes with standard chest and clamp electrodes, plus cleaning cloth; optional PC accessories, trolley, and printer accessories available
- SKU
- OD-00408
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Cardios PC-Based ECG Machine
Advanced 12-lead simultaneous ECG system with automatic measurement, interpretation, and pacemaker analysis. Designed for comprehensive cardiac monitoring with intuitive one-key operation and secure USB data transfer for seamless clinical workflow.
Clinical overview
The Cardios PC-based ECG Machine delivers simultaneous 12-lead recording with automatic measurement and clinical interpretation, enabling rapid and accurate cardiac assessment. Advanced pacemaker analysis functionality supports specialized monitoring requirements, while multi-form printing capabilities facilitate comprehensive data visualization and documentation for clinical review and archival.
Built-in defibrillation protection and high-frequency filtering ensure patient safety and signal integrity. The isolated USB interface enables secure, interference-free data transfer to external systems, supporting seamless integration into modern cardiac care workflows and electronic health record systems.
Key features & surgeon benefits
Comprehensive Cardiac Assessment
- 12-lead simultaneous recording for complete cardiac evaluation
- Automatic measurement and interpretation algorithms
- Advanced pacemaker analysis for specialized monitoring
Simplified Operation
- One-key operation for rapid patient assessment
- Multi-form printing for flexible data visualization
- Real-time heart rate display with beat-by-beat updates
Secure Integration
- Isolated USB interface for interference-free data transfer
- VCG and VLP options for enhanced diagnostic capabilities
- Compatible with external software and electronic systems
Clinical-Grade Protection
- Built-in defibrillation protection and high-frequency filtering
- Patient current leakage <10μA for maximum safety
- 4000V isolation voltage for reliable operation
Technical specifications
| Indications | Cardiac monitoring, arrhythmia detection, pacemaker analysis, comprehensive ECG assessment |
|---|---|
| Recording channels | 8-channel simultaneous display; 12-lead capability |
| Sampling rate | A/D: 24K SPS/Channel; Recording: 1000 SPS/Channel |
| Quantization precision | A/D: 24 Bits; Recording: 16 Bits |
| Resolution | 0.4μV |
| Frequency response | 0.05–250 Hz (±3dB) |
| Common mode rejection | >90dB |
| Input impedance | >10MΩ |
| Time constant | ≥3.2 seconds |
| Maximum electrode potential | ±300mV DC |
| Dynamic range | ±12mV |
| Isolation voltage | 4000V |
| Patient current leakage | <10μA |
| Recording speeds | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Sensitivity options | 10 mm/mV, 5 mm/mV, 20 mm/mV |
| Heart rate display range | 30–300 bpm with real-time updates |

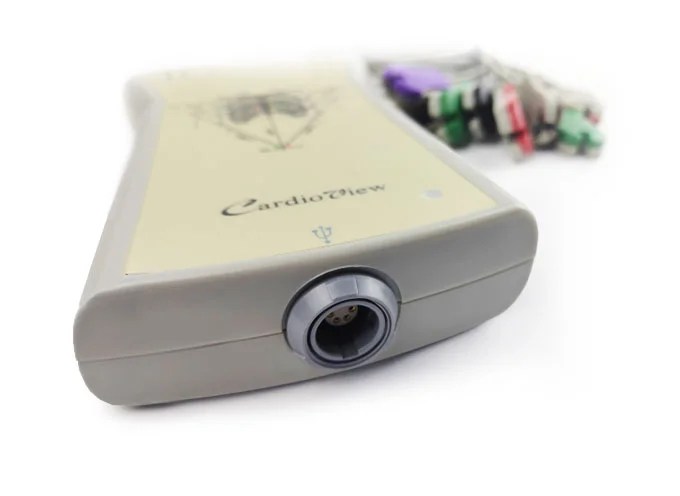

| PC interface | USB connector with isolated output (5V) |
| Patient cable | 10 wires independent, easy to remove |
| Protection | Built-in defibrillation protection and high-frequency filtering |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest electrodes | Standard adhesive chest electrodes for 12-lead recording | 6 |
| Clamp electrodes | Limb clamp electrodes for extremity leads | 4 |
| Cleaning cloth | Maintenance cloth for electrode and device care | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your cardiac monitoring requirements, request a detailed quote, or arrange a product demonstration. We provide comprehensive support for system integration and clinical training.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
