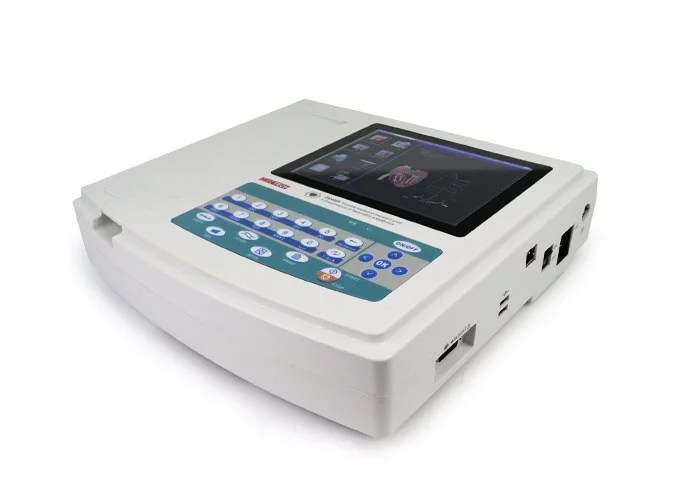

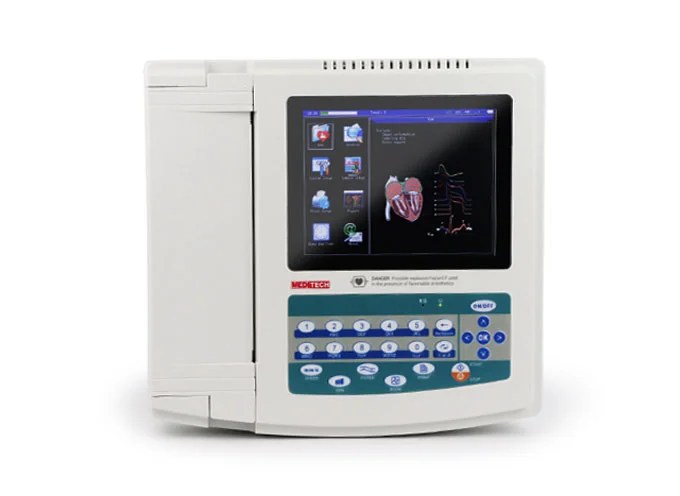

ECG Machine with 8 inch Touch and Color Screen ECG1212T
– 12 Channel Electrocardiograph
– 8″ TFT Color Screen
– Touch screen and soft keyboard control for convenient operation
– Simultaneous display of 12 leads
– Auto-analysis and auto-interpretation
– Up to 10,000 cases in internal memory
– Provides more than 10 printing modes.
Original price was: £990.00.£950.00Current price is: £950.00.
Guaranteed Safe Checkout
Features & Compatibility
ECG Machine with 8 inch Touch and Color Screen ECG1212T
A comprehensive 12-channel electrocardiograph with 8″ TFT color touchscreen display, simultaneous 12-lead visualization, and advanced auto-analysis capabilities. Designed for efficient clinical workflow with extensive memory capacity and multiple printing modes.
Clinical overview
The ECG1212T is a fully integrated 12-channel electrocardiograph system designed to streamline cardiac assessment in clinical and hospital environments. The 8-inch TFT color touchscreen provides intuitive operation with simultaneous display of all 12 leads, enabling rapid diagnosis and comprehensive patient evaluation. Advanced signal processing includes AC filtering, baseline correction, and EMG interference suppression to ensure high-quality waveform acquisition across diverse patient presentations.
With auto-analysis and auto-interpretation capabilities, the system reduces operator dependency and accelerates diagnostic workflow. The device supports multiple recording modes (auto, rhythm, and manual) with flexible paper speeds and sensitivity selections, accommodating both routine screening and detailed diagnostic requirements. Internal memory capacity of up to 10,000 cases enables efficient case management and historical comparison without external storage dependencies.
Key features & surgeon benefits
8″ Color Touchscreen Interface
- Simultaneous 12-lead display for comprehensive rhythm assessment
- Intuitive touchscreen and soft keyboard control
- High-resolution TFT color output for clear waveform visualization
Efficient Recording & Analysis
- Auto-analysis and auto-interpretation reduce manual assessment time
- Multiple recording modes: auto, rhythm, and manual
- Flexible paper speeds (5–50 mm/s) with ±5% accuracy
Extensive Memory & Printing
- Up to 10,000 cases in internal memory for case history and comparison
- Continuous printing capability: 90 minutes operation, 150+ ECGs per session
- More than 10 printing modes for flexible output formats
Advanced Filtering & Protection
- AC, baseline, and EMG filters for noise reduction
- Defibrillation-proof applied part (Class I Type CF)
- Input impedance ≥5MΩ; patient leak current <10μA
Technical specifications
| Indications | Cardiac rhythm monitoring, electrocardiographic diagnosis, arrhythmia detection |
|---|---|
| Leads | Standard 12 leads |
| Display | 8″ TFT Color Touchscreen |

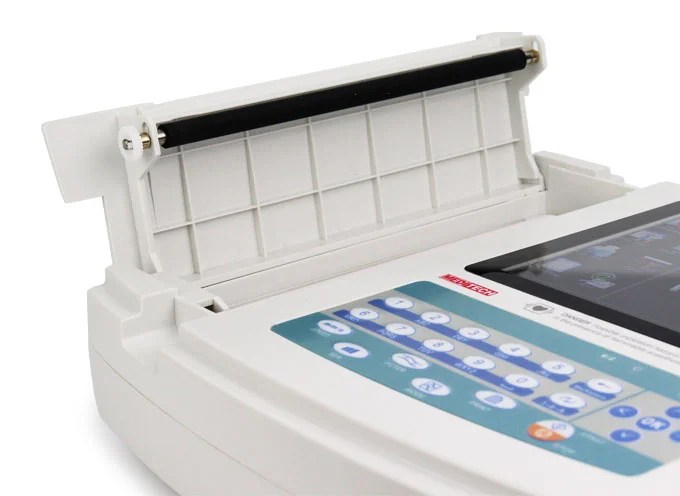

| Recording Method | Thermal array printing system; 80mm (W) × 20m (L) high-speed thermal paper |
| Paper Speed | Auto/Rhythm: 25, 50 mm/s (±5%); Manual: 5, 6.25, 10, 12.5, 25, 50 mm/s (±5%) |
| Sensitivity | 2.5, 5, 10, 20, 40 mm/mV (±5%); standard 10 mm/mV ±0.2 mm/mV |
| Input Impedance | ≥5MΩ |
| Patient Leak Current | <10μA |
| Frequency Response | 1 Hz – 75 Hz |
| Time Constant | >3.2s |
| CMRR | >60dB |
| EMG Filter | 25/35 Hz (-3dB) |
| Noise Level | ≤15μVp-p |
| Enduring Polarization Voltage | ±300mV |
| Memory Capacity | Up to 10,000 cases |
| Printing Capability | 90 minutes continuous operation; 150+ ECGs per session; >10 printing modes |
| Power Supply | AC: 100–240V, 50/60Hz; DC: 7.4V, 3700 mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% |
| Storage Temperature | -10°C to +55°C |
| Storage Humidity | ≤95% |
| Atmospheric Pressure | Operating: 86–106 kPa; Storage: 50–106 kPa |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Fuse Specification | 2 × φ5×20mm AC time lag; T1.6A/250V (220V supply) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest electrode | 6 |
| Clamp Electrode | Limb lead clamp electrodes | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| USB Cable | Data transfer and connectivity | 1 |
| CardioSoft Pro Software | Analysis and management software on CD | 1 |
| Ground Wire | Patient ground reference | 1 |
| Thermal Paper Roll | 80mm × 20m high-speed thermal paper | 1 |
| Power Cable | AC mains power cable | 1 |
| Cleaning Cloth | Display and device maintenance | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Carrying Case | Protective transport and storage case |
| Thermal Paper | Additional 80mm × 20m thermal paper rolls |
| Trolley | Mobile stand for bedside or clinic use |
| PC Accessories | Computer interface and connectivity components |
| Printer Accessories | Thermal printer consumables and maintenance kits |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the ECG1212T system. We provide comprehensive technical support and clinical guidance to ensure optimal integration into your facility.
