Meditech

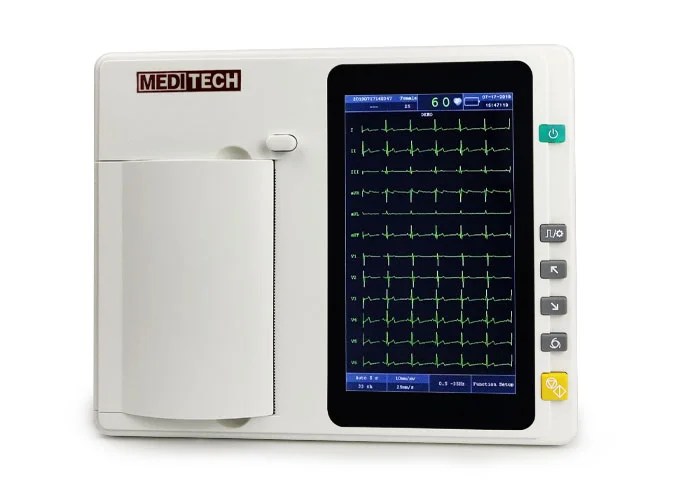

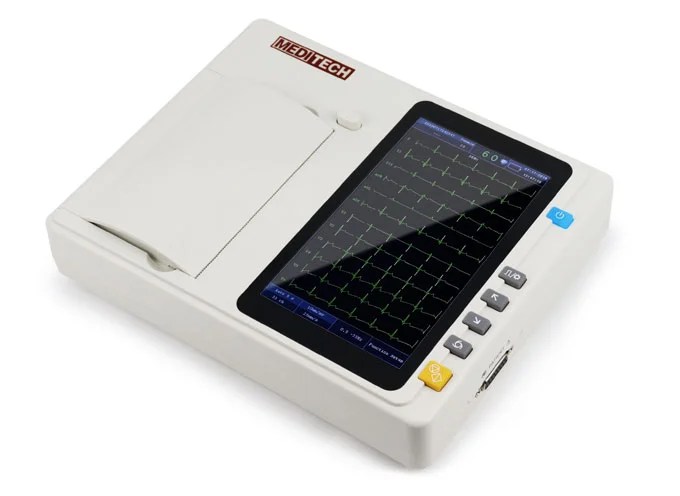

ECG Device 3 Channel ECG machine, Slim, Advanced and Light Weight EKG-6A
5.0(2 reviews)- Slim and lightweight 3-channel ECG machine
- Large color touch screen for easy operation
- Precise auto-interpretation program for accurate results
- Simultaneous 3 leads ECG printing on 80mm thermal paper
- Multiple operation modes: automatic, manual, arrhythmia analysis
- Lead-off detection for reliable readings
- Built-in rechargeable battery with 2 hours of continuous use
- SKU
- OD-00412
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic ECG
ECG Device 3 Channel ECG Machine, Slim, Advanced and Lightweight EKG-6A
Portable 3-channel ECG machine with large 7-inch color touch screen and precise auto-interpretation. Simultaneous 12-lead acquisition with 3-lead thermal printing on 80mm paper. Multiple operation modes including automatic, manual, and arrhythmia analysis with advanced digital filtering and built-in rechargeable battery for 2 hours continuous use.
Ordering Ref.
On request
Configuration12-lead simultaneous
MaterialMedical-grade electronics
ApplicationClinical & portable ECG
Customisation available: case, trolley, thermal paper, and PC accessories on request.
Clinical overview
The EKG-6A is a slim, lightweight 3-channel ECG machine designed for clinical environments requiring portable, reliable cardiac monitoring. The large 7-inch color touch screen provides intuitive patient management with fields for name, age, ID, and sex. Precise auto-interpretation algorithms deliver accurate diagnostic results, while simultaneous 12-lead acquisition and asynchronous modes support diverse clinical workflows. Real-time ECG waveform display and lead-off detection ensure data integrity and patient safety.
Advanced digital filtering eliminates EMG, AC, and baseline drift interference, maintaining signal fidelity across all measurement ranges (±5mVpp). The device supports multiple recording modes—automatic, manual, and rhythm analysis—with selectable sensitivities (2.5, 5, 10, 20 mm/mV) and paper speeds (6.25–50 mm/s). External USB storage accommodates up to 1000 reports, while built-in USB/RS232 interfaces and SD card support enable seamless data management and software upgrades.
Key features & surgeon benefits
Display & Interface
Intuitive Touch Screen Operation
- Large 7-inch color touch screen for easy navigation
- Integrated keyboard for rapid patient data entry
- Real-time ECG waveform visualization
Acquisition & Analysis
Simultaneous 12-Lead Capability
- Simultaneous 12-lead acquisition and asynchronous modes
- Precise auto-interpretation program for diagnostic accuracy
- Arrhythmia analysis and rhythm detection
Portability & Power
Slim, Lightweight Design
- Built-in rechargeable Li-ion battery (2 hours continuous use)
- AC/DC dual power supply (100–110V/240V, 50/60Hz)
- Compact form factor for point-of-care deployment
Data Management
Flexible Storage & Connectivity
- External USB storage for up to 1000 reports
- Network interface, USB Master/Slave, and SD card support
- Automatic software upgrade via USB
Technical specifications
| Indications | Cardiac rhythm monitoring, arrhythmia detection, ECG screening and diagnosis |
|---|---|
| Lead Configuration | Standard 12 leads; simultaneous 12-lead acquisition and asynchronous acquisition |
| Measurement Range | ±5mVpp |
| Sensitivity | 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
| Input Impedance | ≥50MΩ |
| Frequency Response | 0.05 Hz–150 Hz (-3dB) |
| Time Constant | ≥3.2s |
| Noise Level | <15µVp-p |
| Patient Current Leakage | <10µA (110V/220V–110V/240V) |
| Input Circuit Current | <0.05µA |
| CMRR | 100dB |
| Sample Rate | 1000 sps/channel |
| Recording Paper | 80mm thermal roll (30m) |
| Paper Speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s |
| Recording System | Thermal matrix printing; automatic (3CH×4+1R, 3CH×4, 6CH×2), manual (4CH, 3CH, 2CH, 1CH), rhythm (any lead selectable) |
| Filters | EMG (25/30/40 Hz), Low Pass (75/100/150 Hz), DFT (0.05/0.15/0.25/0.32/0.5/0.67 Hz, ADS), AC (50/60 Hz) |
| Power Supply | AC: 100–110V/240V, 50/60Hz, 30VA–100VA; DC: 14.8V/2200mAh built-in lithium battery |
| Battery Life | 2 hours continuous working |
| Interfaces | Network interface, USB Master/Slave, SD card |
| Data Storage | External USB card: up to 1000 reports |
| Safety Standard | IEC I/CF (defibrillator-protected input circuit) |
| Warranty | 2 Year Manufacturer Warranty |

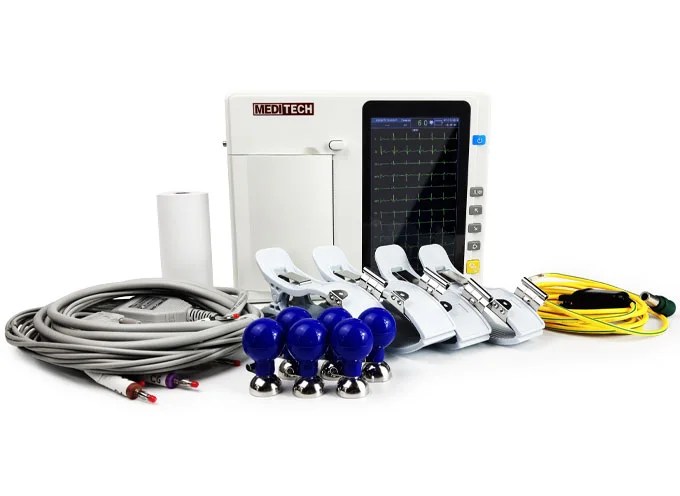

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard ECG chest leads | 6 |
| Clamp Electrode | Limb lead clamps | 4 |
| ECG Cable | Patient lead cable assembly | 1 |
| Ground Wire | Patient ground reference | 1 |
| Thermal Paper Roll | 80mm × 30m recording paper | 1 |
| Power Cable | AC mains power cable | 1 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options (case, trolley, thermal paper, PC accessories), or arrange a technical demonstration of the EKG-6A.
Phone: +44 (7463) 676084
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
5.0· 2 reviewsWould buy again
Picked this up on a colleague's recommendation and the value at this price point is hard to beat. The build quality is genuinely reassuring. A dependable choice for any clinic.
Alexandra Wood, Procurement LeadVerified buyerNov 30, 2024
Related products
See all →
Meditech
Multi-functional Visual Stethoscope VS2
- Multi-functional visual stethoscope with auscultation sound output - Features ECG waveform display and heart rate display - Includes SpO2 monitor for oxygen saturation measurement - Displays pulse waveform, pulse rate, and battery power levels
£285.00
£190.00
Meditech
HeartRec® Lite Holter ECG Ambulatory ECG Analysis System
3.7(3)
- HeartRec® Lite Holter ECG Ambulatory ECG Analysis System with automatic duplex operation - Two work modes: 12-lead / 3-Channel switchable by changing patient cable - Compact size and light weight for easy portability - Fully programmable with high fidelity research-grade performance - Lightning data transfer with up to 7 days of recording - Includes EKG cable, plastic and leather case, batteries, SD card, and cleaning cloth; options for rechargeable battery and Panasonic charger available
£870.00
£590.00
Meditech
Cardios Pro Stress Test System
- Cardios Pro Stress Test System for comprehensive evaluation of exercise stress test - Features high resolution A/D for accurate measurements - Utilizes patented Meditech technology for precise results - Includes different selectable filters for enhanced data analysis - Offers various trends and live arrhythmia detection for thorough review
£2,980.00
£2,480.00
Orthopedic Drills
Cardios PC based ECG Machine
- 12-Lead Simultaneous ECG with automatic measurement and interpretation - Pacemaker analysis feature for advanced cardiac monitoring - Multi-form printing capability for easy data visualization - One key operation for simplified use - VCG and VLP options for enhanced diagnostic capabilities - Isolated USB for secure data transfer - Comes with standard chest and clamp electrodes, plus cleaning cloth; optional PC accessories, trolley, and printer accessories available
£1,990.00
Meditech

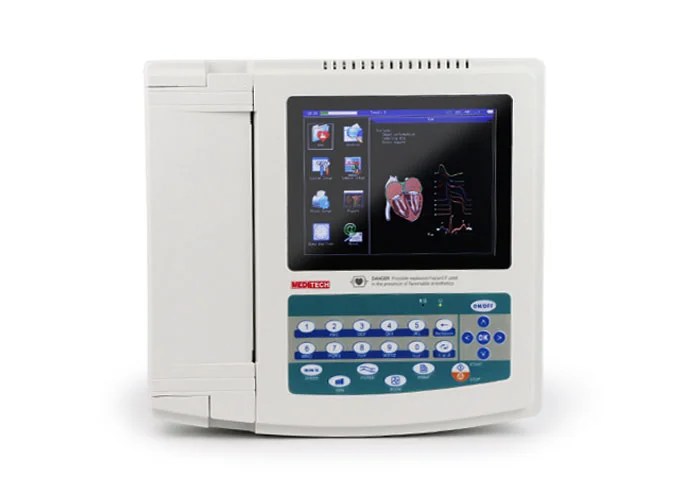

ECG Machine with 8 inch Touch and Color Screen ECG1212T
