Meditech

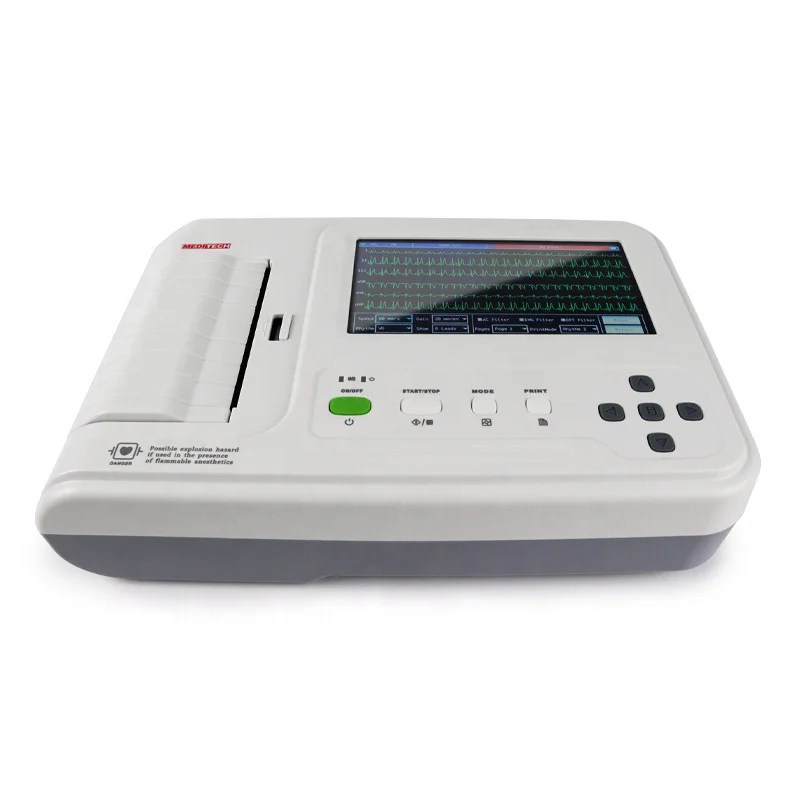

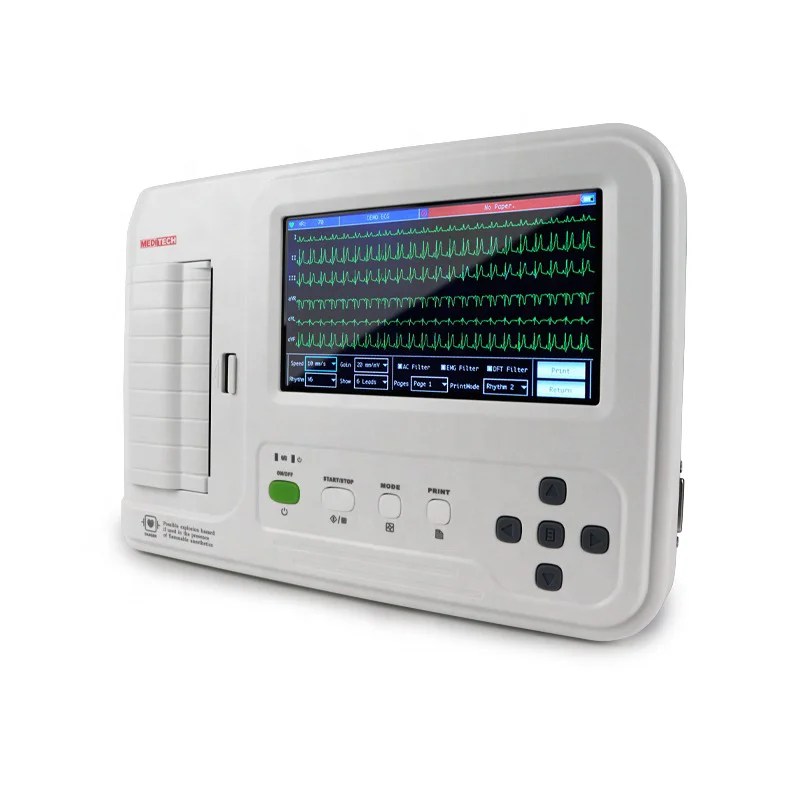

7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
4.0(3 reviews)- 7-inch TFT touch screen ECG machine with 3+1/6 channel functionality
- Digital isolation technology and signal processing for accurate readings
- Built-in memory or mini SD card storage for over 1000 pieces of archive
- Comes with PC Software for easy data transfer
- Standard 12 lead ECG with auto-measurement, auto-analysis, and auto-interpretation
- Includes various accessories like chest electrodes, EKG cable, USB cable, and more for comprehensive use
- SKU
- OD-ECG6012
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic ECG
7 Inch TFT Touch Screen 3+1/6 Channel ECG Machine ECG6012
Advanced 12-lead simultaneous ECG system with 7-inch TFT touch screen, digital isolation technology, and comprehensive patient management. Delivers accurate cardiac diagnostics with auto-measurement, auto-analysis, and auto-interpretation capabilities for clinical and point-of-care environments.
Ordering Ref.
ECG6012
Configuration3+1/6 Channel, 12-Lead
MaterialMedical-grade electronics
ApplicationDiagnostic & Clinical ECG
Customisation available: case, trolley, thermal paper, and PC accessories on request.
Clinical overview
The ECG6012 is a professional-grade 12-lead simultaneous ECG system designed for diagnostic accuracy and clinical reliability. Featuring a 7-inch TFT touch screen with multi-language support (English, German, French, Italian, Turkish, Spanish), the device integrates digital isolation technology and advanced signal processing to eliminate noise and interference. The system delivers precise cardiac measurements and automated interpretation, making it ideal for hospital cardiology departments, outpatient clinics, and emergency care settings.
With built-in lithium rechargeable battery, wide thermal printing system, and comprehensive data storage (over 1000 patient records via built-in memory or mini SD card), the ECG6012 supports seamless workflow integration. USB and LAN connectivity enable direct data transfer to PC via included CardioSoft Pro software, facilitating electronic health record integration and remote consultation capabilities.
Key features & surgeon benefits
Coverage
Comprehensive 12-Lead Acquisition
- Simultaneous 3+1/6 channel recording
- Standard 12-lead ECG configuration
- Digital isolation and defibrillation protection
Workflow
Intuitive Touch Interface & Automation
- 7-inch TFT touch screen with patient management (name, age, ID)
- Auto-measurement, auto-analysis, auto-interpretation
- Multi-language support for global deployment
Economics
Cost-Effective Operation
- Rechargeable lithium battery for portable use
- High-speed thermal printing reduces consumable costs
- Over 1000-record storage eliminates external archiving
Customisation
Flexible Configuration Options
- Optional carrying case and mobile trolley
- Thermal paper and printer accessories available
- PC software integration for data management
Technical specifications
| Indications | Resting ECG, cardiac screening, diagnostic cardiology, patient monitoring |
|---|---|
| Lead Configuration | Standard 12 leads, 3+1/6 channel simultaneous recording |
| Display | 7-inch TFT touch screen with LED backlight |
| Patient Leak Current | <10μA |
| Input Impedance | ≥5MΩ |
| Frequency Response | 1Hz–75Hz |
| Time Constant | >3.2s |
| CMRR | >60dB |
| EMG Interference Filter | 25/35Hz (–3dB) |
| Recording Method | Thermal array printing system |
| Paper Specification | 80mm (W) × 20m (L) high-speed thermal paper |
| Paper Speed (Auto/Rhythm) | 25mm/s, 50mm/s (error ±5%) |
| Paper Speed (Manual) | 5, 6.25, 10, 12.5, 25, 50mm/s (error ±5%) |
| Sensitivity Options | 2.5, 5, 10, 20, 40mm/mV (standard 10mm/mV ±0.2mm/mV) |
| Measurement Parameters | HR, P-R, P Duration, QRS Duration, T Duration, Q-T, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) |
| Safety Classification | Class I Type CF defibrillation-proof applied part |
| Enduring Polarization Voltage | ±300mV |
| Noise Level | ≤15μVp-p |
| Power Supply (AC) | 100–110V/240V, 50/60Hz |
| Power Supply (DC) | 7.4V, 3700mAh rechargeable lithium battery |
| Operating Temperature | +5°C to +35°C |
| Operating Humidity | ≤80% |
| Storage Temperature | –10°C to +55°C |
| Storage Humidity | ≤95% |
| Memory | Built-in memory or mini SD card; stores >1000 patient records |
| Connectivity | USB, LAN socket; PC software (CardioSoft Pro) included |
| Languages | English, German, French, Italian, Turkish, Spanish |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Chest Electrode | Standard diagnostic electrode | 6 |
| Clamp Electrode | Limb lead electrode | 4 |
| EKG Cable | Patient lead cable assembly | 1 |
| USB Cable | Data transfer and connectivity | 1 |
| CD CardioSoft Pro | PC software for data management and analysis | 1 |
| Ground Wire | Safety ground connection | 1 |
| Paper Roll | 80mm × 20m thermal recording paper | 1 |
| Power Cable | AC mains connection | 1 |
| Cleaning Cloth | Screen and device maintenance | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the ECG6012. We provide comprehensive support and rapid turnaround on orders.
Phone: +44 (7463) 676084
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.0· 3 reviewsQuick and intuitive
Lead placement prompts on screen speed up acquisition and the touch interface is responsive. A reliable little ECG unit.
Sandra Coombes, RN, CNORMay 21, 2026
Clean traces, easy touch operation
The 6-channel output gives clear, low-noise traces and the touch screen makes acquiring a pre-operative ECG quick. Handy compact footprint for a busy pre-assessment clinic.
Dr. Marcus Trelawney, MD, FACSSep 24, 2024
