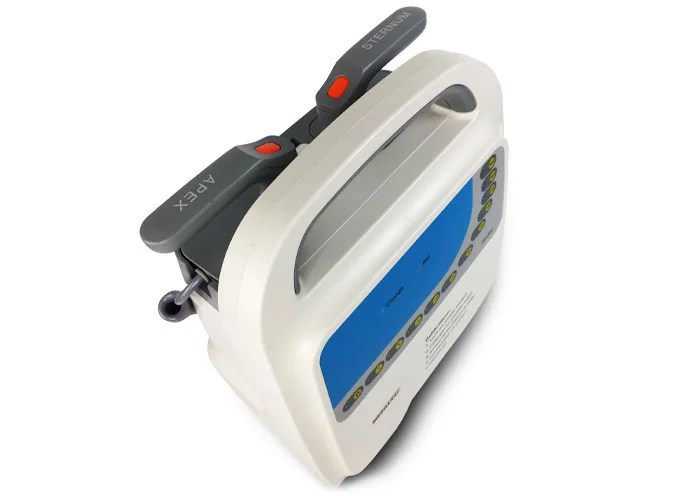

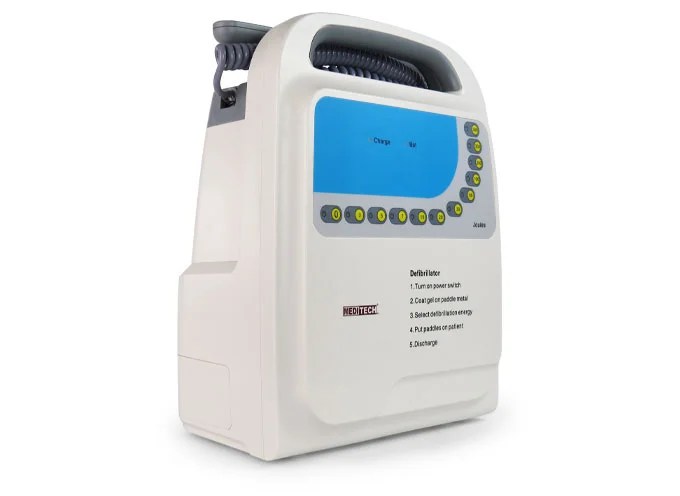

Portable Monophasic Defibrillator Defi®7
- Portable Monophasic Defibrillator Defi®7 with manual synchronized output waveform
- Energy selection ranging from 0.3 to 360 joules for accurate defibrillation
- Comes with standard adult/pediatric paddles and two batteries for longer capacity
- Fast charging time of maximum 8 seconds to 360 Joules
- AC power supply of 110V 60Hz / 220V 50Hz and vehicle voltage DC 12V compatible
- SKU
- OD-360
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

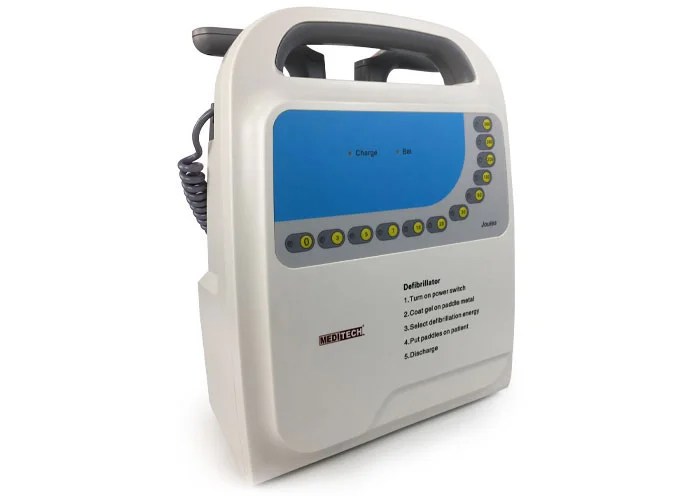

Portable Monophasic Defibrillator Defi®7
A reliable, portable monophasic defibrillator with manual synchronized output and flexible energy selection from 0.3 to 360 joules. Rapid charging to full capacity in 8 seconds, dual battery support, and multi-voltage compatibility for emergency and clinical environments.
Clinical overview
The Defi®7 is a portable monophasic defibrillator designed for rapid cardiac defibrillation in emergency and clinical settings. With energy accuracy of ±1% and selectable outputs from 0.3 to 360 joules, it provides clinicians with precise control over energy delivery. The manual synchronized mode ensures safe, controlled defibrillation while the integrated adult/pediatric paddle system accommodates diverse patient populations.
Fast charging to 360 joules in a maximum of 8 seconds minimizes time-to-therapy, critical in cardiac emergencies. Dual battery support and multi-voltage power compatibility (110V 60Hz, 220V 50Hz, and 12V DC vehicle supply) ensure operational readiness across diverse clinical and mobile environments. The rechargeable lead-acid or optional lithium battery provides 120 minutes of continuous monitoring and 30 full-energy discharges per charge cycle.
Key features & surgeon benefits
Precise Defibrillation
- 11-step energy selection from 0.3 to 360 joules
- ±1% energy accuracy for consistent therapy
- Monophasic waveform technology with optional biphasic upgrade
Rapid Response
- Maximum 8-second charging to full 360 joules
- Integrated adult and pediatric paddles
- Manual synchronized output for controlled therapy
Extended Capacity
- Dual battery system for extended operation
- 120 minutes continuous monitoring per charge
- 30 full-energy discharges per battery cycle
Multi-Environment Deployment
- AC power (110V 60Hz / 220V 50Hz) and 12V DC vehicle supply
- Portable design for emergency and clinical use
- Optional wall mounts, trolleys, and carry bags available
Technical specifications
| Defibrillator Type | Manual Synchronized / Asynchronized |
|---|---|
| Output Waveform | Monophasic technology (Biphasic optional) |
| Energy Accuracy | ±1% |
| Energy Selection | 0.3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at 50Ω) |
| Charging Time | Maximum 8 seconds to 360 joules |

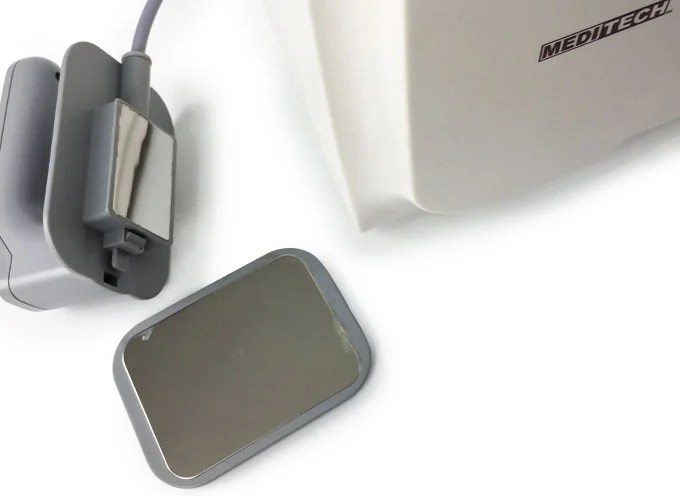

| Paddles | Reusable external adult paddles with integrated pediatric paddles |

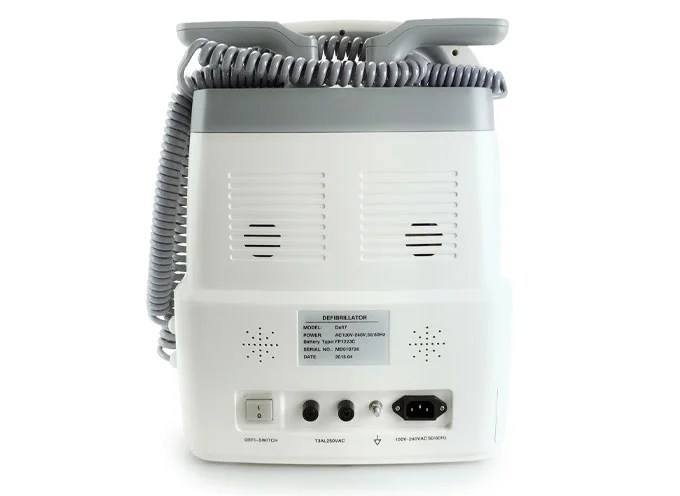

| AC Power Supply | 110V 60Hz / 220V 50Hz |
| Vehicle Voltage | DC 12V compatible |
| Battery Type | Rechargeable lead-acid or lithium (optional) |
| Battery Charging Time | Minimum 4 hours for full charge |
| Battery Capacity | 120 minutes monitoring + 30 discharges at 360 joules per full charge |
| Low Battery Indication | Red LED indicator |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Ground Wire | Standard grounding cable | 1 |
| Battery | Rechargeable lead-acid or lithium battery | 2 |
| Power Cable | AC power supply cable | 1 |
| Fuse | Replacement fuses | 2 |
| Cleaning Cloth | Device maintenance cloth | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| Defibrillator Wall Mounts | 3 mounting models for fixed installation |
| Defibrillator Trolley | 5 mobile trolley configurations for transport |

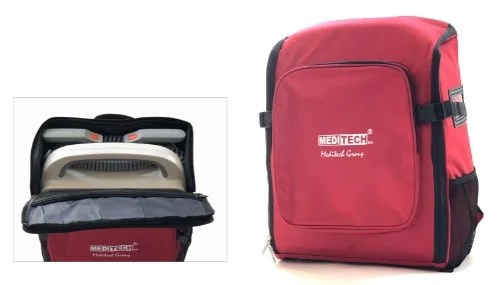

| Carry Bag | Protective carrying case for portability |
| Biphasic Technology Upgrade | Optional waveform enhancement |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical specifications, or arrange a demonstration of the Defi®7 portable defibrillator. We provide fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

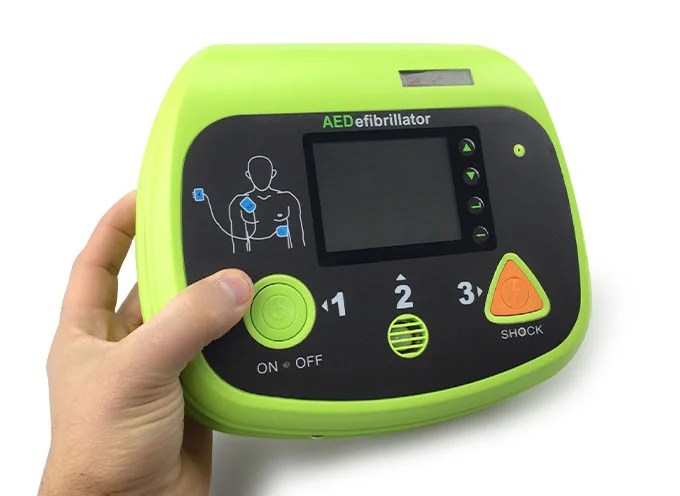

Portable Color Screen AED Defibrillator with ECG, Multi Language, SD Socket For Data Transfer from AED Device Defi 6
- Portable AED defibrillator with ECG capability - Color screen for clear ECG wave visualization - Multi-language voice and monitor for user convenience - SD card for data recording, Infra-red for easy data transfer - Adult and Pediatric defibrillation options available

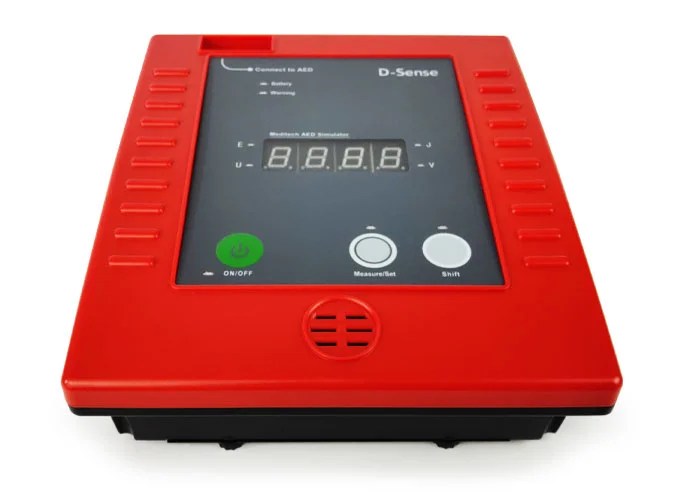

Medical Equipment DSense Defibrillator Analyzer for AED Defibrillator and Monitor Energy Test
- Safe and effective operation - Large LED display for easy viewing - Compact and easy to use design - Battery operation for portability - Simulates five types of waveforms - Ideal for all AEDs
Defi 5C Medical equipment D-Sense Defibrillator analyzer for AED defibrillator and monitor energy test
- Defi 5C Medical equipment D-Sense Defibrillator analyzer for AED defibrillator and monitor energy test - Three-step defibrillation process - Extensive voice and visual prompts for the operator - Device has an internal memory (60 hours) - Can work with rechargeable battery - Biphasic energy output - Carrying case included

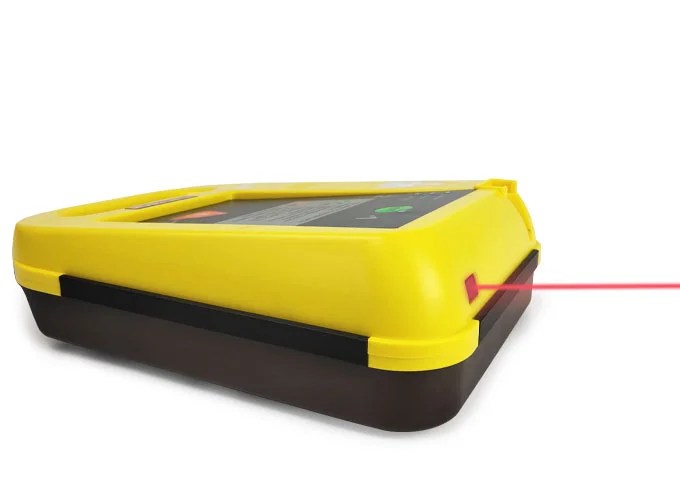

Defi 5 AED with Lock-out Protection to Prevent Inadvertent Defibrillation, Automated External Defibrillator
- Defi 5 AED with lock-out protection to prevent inadvertent defibrillation - Features a three-step defibrillation process and two-button operation - Equipped with extensive voice and visual prompts for the operator - Includes biphasic energy output and internal memory for ECG signal storage

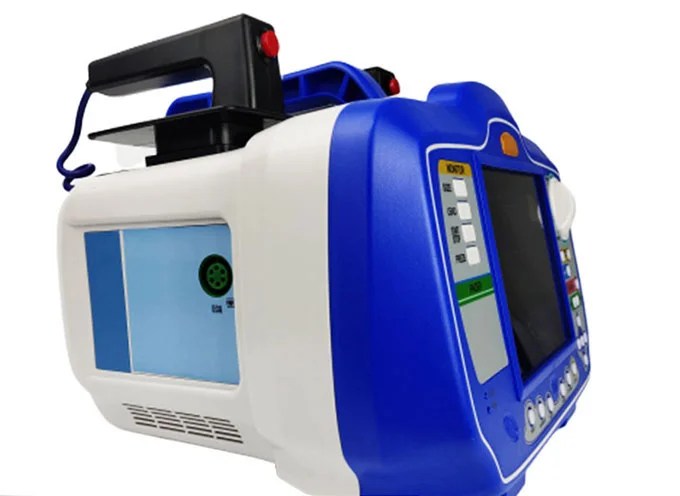

High Quality Defi Xpress Portable Defibrillator Monitor Biphasic and AED, Built-in Printer
- High-quality portable defibrillator monitor with built-in printer - Biphasic waveform for efficient energy delivery - Features ECG monitoring with adjustable lead selection - Rechargeable Ni-MH battery for continuous use

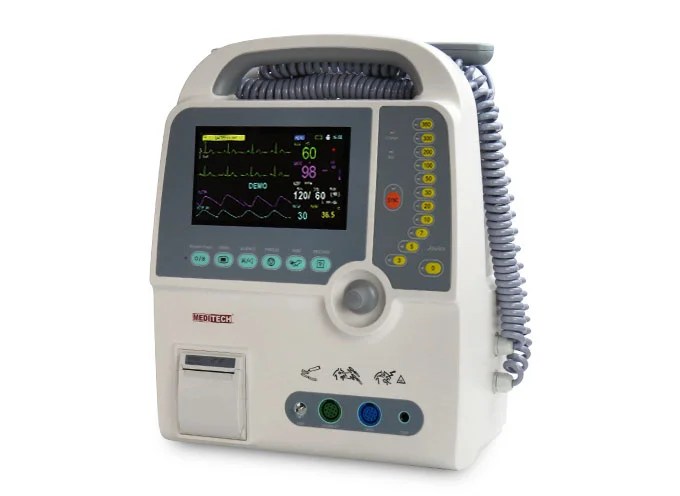

Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
- Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9 - Large TFT screen 7 inch - Built-in multi-parameter patient monitor including ECG, SpO2, NIBP, RESP, PR, TEMP - Energy selection range from 0.3 to 360 joules - Comes with two batteries for extended capacity - Standard Adult/Pediatric Paddles for ease of use

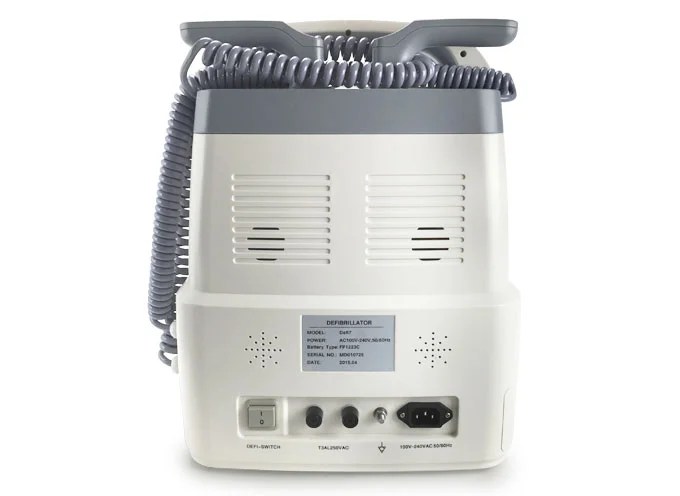

Defibrillator Professional Heart Shock Device with ECG Monitor Defi®8
