Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
- Emergency First Aid Defibrillator monitor with Biphasic and Monophasic Technology Defi 9
- Large TFT screen 7 inch
- Built-in multi-parameter patient monitor including ECG, SpO2, NIBP, RESP, PR, TEMP
- Energy selection range from 0.3 to 360 joules
- Comes with two batteries for extended capacity
- Standard Adult/Pediatric Paddles for ease of use
- SKU
- OD-00393
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

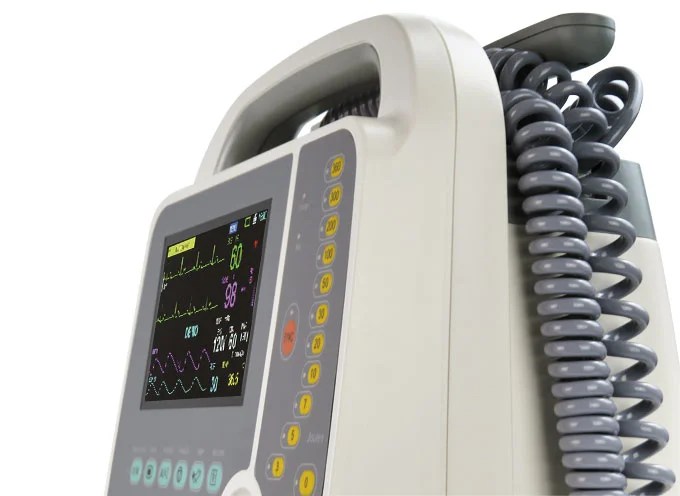

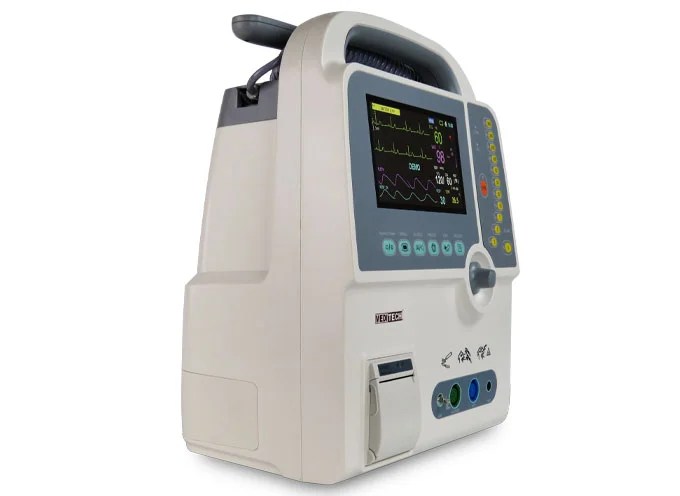

Defi 9 Emergency First Aid Defibrillator Monitor
Advanced biphasic and monophasic defibrillation with integrated multi-parameter patient monitoring. The Defi 9 combines a large 7-inch TFT display, comprehensive vital sign monitoring (ECG, SpO₂, NIBP, RESP, PR, TEMP), and flexible energy selection from 0.3 to 360 joules for emergency response in hospitals, clinics, and first aid settings.
Clinical overview
The Defi 9 is a professional-grade emergency defibrillator monitor designed for rapid cardiac response in hospitals, emergency departments, clinics, and first aid environments. It combines manual and synchronized defibrillation modes with biphasic and monophasic waveform options, ensuring flexibility in treating various cardiac arrhythmias. The device delivers energy with ±1% accuracy across a wide range (0.3–360 joules), with maximum charging time of 8 seconds to full capacity.
Integrated multi-parameter patient monitoring provides real-time assessment of ECG (12-lead capability), SpO₂, non-invasive blood pressure (NIBP), respiration rate, pulse rate, and temperature on a large 7-inch TFT display. The system supports adult, pediatric, and neonatal patient populations with appropriate sensor and cuff options. Dual battery system ensures extended operational capacity for continuous emergency response.
Key features & surgeon benefits
Dual-Waveform Technology
- Monophasic and biphasic output options for treatment flexibility
- Energy range 0.3–360 J with ±1% accuracy
- Rapid charging: maximum 8 seconds to 360 J
- Manual and synchronized modes for diverse clinical scenarios
Comprehensive Vital Signs
- 12-lead ECG with I, II, III, aVR, aVL, aVF, V1–V6 capability
- SpO₂ pulse oximetry (0–99%) with waveform display
- NIBP with automatic and manual modes; adult, pediatric, neonatal ranges
- Pulse rate (0–300 bpm, ±2 bpm accuracy) and temperature monitoring
Large TFT Screen
- 7-inch TFT display for clear, real-time patient data visualization
- Standard adult and pediatric paddles (reusable external)
- Intuitive interface for rapid emergency deployment
- Dual battery system for extended operational capacity
Flexible Accessory Options
- Multiple ECG cable configurations (3-lead, 5-lead, alligator clips)
- SpO₂ sensors: adult, pediatric, neonatal (hard/soft shell, finger clip, multi-site)
- NIBP cuffs: infant, child, small/standard/large adult, thigh sizes
- Optional thermal printer, wall mounts, trolleys, and carry bags
Technical specifications
| Defibrillation Type | Manual, Synchronized, Asynchronized |
|---|---|
| Output Waveform | Monophasic; Biphasic (optional) |
| Energy Accuracy | ±1% |
| Energy Selection | 0.3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at 50 Ω) |
| Charging Time | Maximum 8 seconds to 360 J |
| Paddles | Standard adult/pediatric reusable external paddles |
| Display | 7-inch TFT screen |
| ECG Leads | I, II, III, aVR, aVL, aVF, V1–V6 |
| Pulse Rate Range | 0–300 bpm; Accuracy ±2 bpm |
| NIBP Range (Adult) | 10–250 mmHg |
| NIBP Range (Pediatric) | 10–200 mmHg |
| NIBP Range (Neonatal) | 10–135 mmHg |
| SpO₂ Range | 0–99% (adult, pediatric, neonatal) |
| Temperature Range | 20–45°C |
| Batteries | 2 units for extended capacity |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 5-lead configuration | 1 |
| SpO₂ Sensor | Standard adult finger clip | 1 |
| SpO₂ External Cable | Standard | 1 |
| Temperature Probe | Standard | 1 |
| NIBP Cuff | Standard adult size | 1 |
| NIBP Tube | Standard length | 1 |
| Ground Wire | Standard | 1 |
| Battery | Rechargeable lithium-ion | 2 |
| Power Cable | AC mains | 1 |
| Fuse | Replacement fuses | 2 |
| Cleaning Cloth | Microfiber | 1 |
Optional accessories & configurations
| Category | Options |
|---|---|
| ECG Cables | 3-lead configuration; Alligator clips (metal) |
| SpO₂ Sensors | Adult hard shell; Adult soft shell; Pediatric hard shell; Pediatric soft shell; Neonatal soft shell; Child finger clip; Multi-site Y-type |
| NIBP Cuffs | Infant (8–14 cm); Child (13–20 cm); Small adult (18–26 cm); Adult (26–35 cm); Adult long (29–38 cm); Large adult (32–42 cm); Large adult long (35–44 cm); Thigh (42–50 cm) |
| NIBP Accessories | Extended tube (150 cm) |

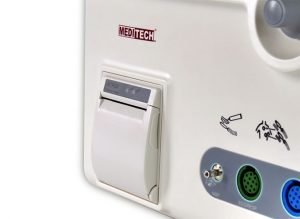

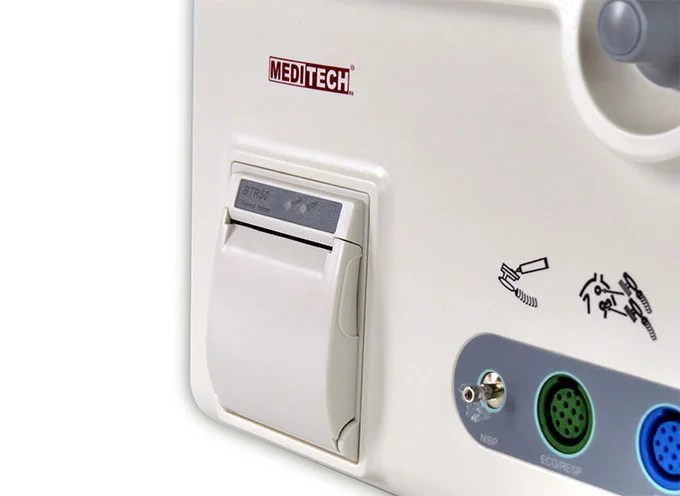

| Recording & Printing | Thermal printer; Paper rolls |
| Mounting & Transport | Wall mounts (3 models); Trolleys (5 models); Carry bag |
Get in touch for pricing & availability
Contact our medical device team to discuss the Defi 9 defibrillator monitor, customisation options, bulk pricing, and delivery timelines. We provide comprehensive technical support and clinical guidance for emergency care environments.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
