Defi 5 AED with Lock-out Protection to Prevent Inadvertent Defibrillation, Automated External Defibrillator
- Defi 5 AED with lock-out protection to prevent inadvertent defibrillation
- Features a three-step defibrillation process and two-button operation
- Equipped with extensive voice and visual prompts for the operator
- Includes biphasic energy output and internal memory for ECG signal storage
- SKU
- OD-00395
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping

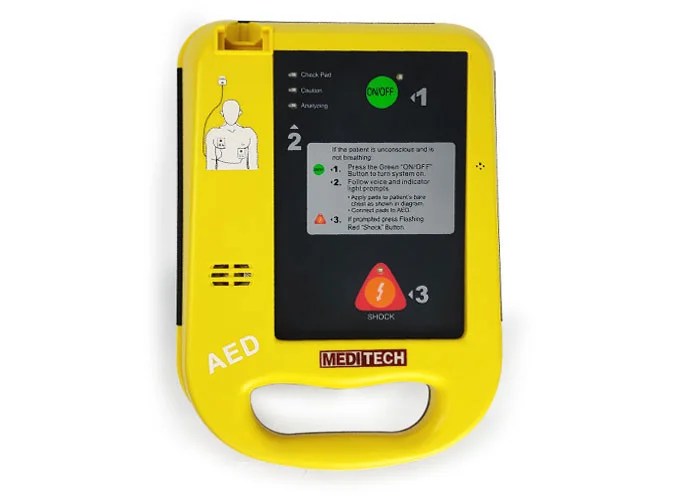

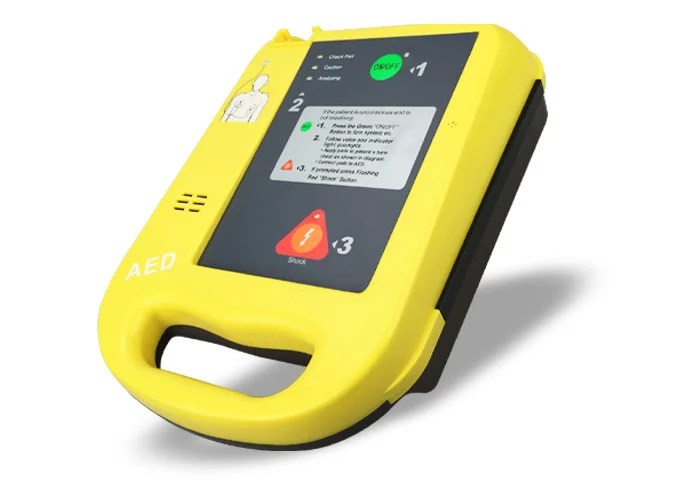

Defi 5 AED with Lock-out Protection
The Defi 5 is a fully automated external defibrillator featuring advanced lock-out protection to prevent inadvertent defibrillation. With a three-step defibrillation process, two-button operation, and comprehensive voice and visual prompts, it delivers biphasic energy output with internal ECG memory for reliable emergency response.
Clinical overview
The Defi 5 Automated External Defibrillator is a portable, user-friendly device designed for rapid response to sudden cardiac arrest in both clinical and public access settings. Its three-step defibrillation process—rhythm analysis, charging, and shock delivery—is fully automated, requiring minimal operator training. The device features lock-out protection to prevent inadvertent defibrillation, ensuring patient safety during the resuscitation process.
Equipped with 22 audible prompts and LED visual indicators, the Defi 5 guides operators through each step of the resuscitation protocol. The biphasic truncated exponential waveform delivers energy levels of 150J, 150J, and 200J across a wide impedance range (25–175Ω), optimising efficacy across diverse patient populations. With 60 hours of internal memory and ECG signal storage, the device enables comprehensive post-event analysis and data transfer via optional software.
Key features & surgeon benefits
Lock-out Protection & Automated Analysis
- Lock-out protection prevents inadvertent defibrillation
- Fully automated rhythm analysis and shock delivery
- Biphasic energy output optimised for efficacy
Comprehensive Guidance & Prompts
- 22 audible voice prompts in multiple languages
- LED visual indicators for each step
- Two-button operation for simplicity
Internal Memory & ECG Transfer
- 60-hour internal memory for event storage
- ECG signals and events transferable to computer
- Optional software for waveform analysis and reporting
Ready-to-Deploy Design
- Lightweight (2.0 kg) with carrying handle
- Supplied with protective carrying case
- Long-life battery (5+ years) with rechargeable option
Technical specifications
| Indications | Ventricular fibrillation and pulseless ventricular tachycardia in adult patients |
|---|---|
| Energy output | 150J, 150J, 200J (biphasic truncated exponential) |
| Charge time | 10 seconds to 150J; 15 seconds to 200J |
| Shock delivery time | 9 seconds |
| Dimensions | 303 × 216 × 89 mm |
| Weight | 2.0 kg |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 30% to 95% (non-condensing) |
| Storage temperature | −20°C to 55°C (without battery) |
| Storage humidity | Up to 93% (non-condensing) |
| Power source | Internal battery only (LiMnO2 disposable or rechargeable) |
| Battery life | Minimum 5 years |
| Internal memory | 60 hours of ECG and event data |
| Patient impedance range | 20Ω to 200Ω |
| Energy accuracy | ±15% into any impedance 25–175Ω |
| Voice prompts | 22 audible prompts with LED visual indicators |
| Controls | Two buttons: On/Off and Shock |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Standard adult defibrillation pads | 1 |
| Battery | LiMnO2 disposable or rechargeable battery pack | 1 |
| Carrying case | Protective hard-shell case with handle | 1 |
| Cleaning cloth | Microfibre cloth for device maintenance | 1 |
Optional accessories & software
| Option | Description |
|---|---|
| Paediatric AED pads | Reduced-energy pads for paediatric patients |
| AED cabinet | Wall-mounted or stand-alone storage cabinet with alarm |
| IrDA USB adapter | Data transfer interface for ECG signal download |
| AED storage software | Event documentation, real-time ECG display, waveform analysis, and reporting |
| CD software | ECG data transfer and archival software |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the Defi 5 AED. We offer volume discounts and support for hospital, clinic, and public access programmes.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
