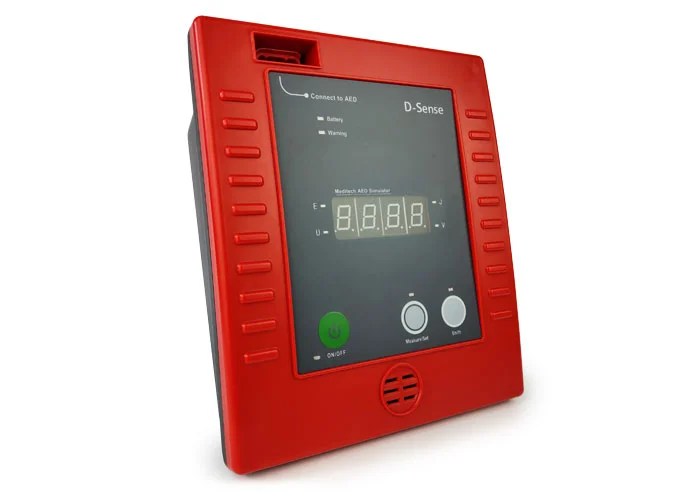

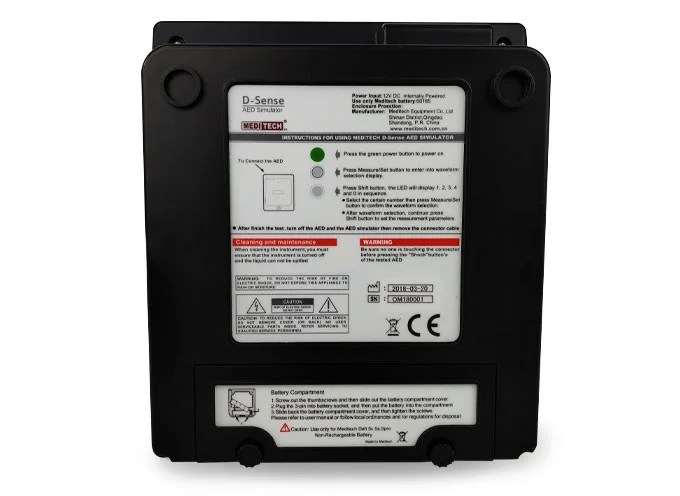

Medical Equipment DSense Defibrillator Analyzer for AED Defibrillator and Monitor Energy Test
- Safe and effective operation
- Large LED display for easy viewing
- Compact and easy to use design
- Battery operation for portability
- Simulates five types of waveforms
- Ideal for all AEDs
- SKU
- OD-00397
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
DSense Defibrillator Analyzer for AED Energy Testing
Portable, battery-operated analyzer for safe and effective AED defibrillator testing. Features large LED display, five waveform simulations, and energy measurement from 2–250 Joules with ±2% accuracy. Ideal for all AED models and maintenance protocols.
Clinical overview
The DSense Defibrillator Analyzer is a compact, portable testing device designed for validation and maintenance of automated external defibrillators (AEDs) and cardiac monitors. It provides accurate energy measurement and waveform simulation across five clinically relevant cardiac rhythms, enabling healthcare facilities and biomedical technicians to verify device performance and ensure patient safety compliance.
With battery operation, a large LED display, and intuitive controls, the DSense analyzer simplifies routine AED testing protocols while maintaining measurement accuracy within ±2% across the full 2–250 Joule range. Its robust design and comprehensive waveform library make it suitable for all major AED platforms.
Key features & surgeon benefits
Precise Energy Measurement
- Energy range 2–250 Joules with ±2% accuracy ± 2 Joules
- Internal test load with ±1% tolerance
- Validated for all major AED models
Portable & Easy to Use
- Compact, lightweight design (1 kg)
- Battery-powered for field testing
- Large 4-digit LED display for clear readout
Five Waveform Types
- VFIB – ventricular fibrillation
- VTAC – ventricular tachycardia @ 140 bpm
- NSR – normal sinus rhythm @ 90 bpm
Maintenance & Validation
- Supports routine AED maintenance protocols
- Enables device performance verification
- Ideal for biomedical technician testing
Technical specifications
| Indications | AED defibrillator and monitor energy testing; waveform simulation; device validation |
|---|---|
| Energy range | 2–250 Joules |
| Energy resolution | 1 Joule |
| Energy accuracy | ±2% reading ± 2 Joules |
| Internal test load | Ohms ± 1% |
| Pulse width | As applicable |
| Waveform simulation | VFIB, VTAC @ 140 bpm, NSR @ 90 bpm |
| Display | 4-digit LED display |
| Power | LiMnO2 12-Volt battery |
| Weight | 1 kg |
| Dimensions | 256 × 220 × 65–80 mm (L × W × H) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

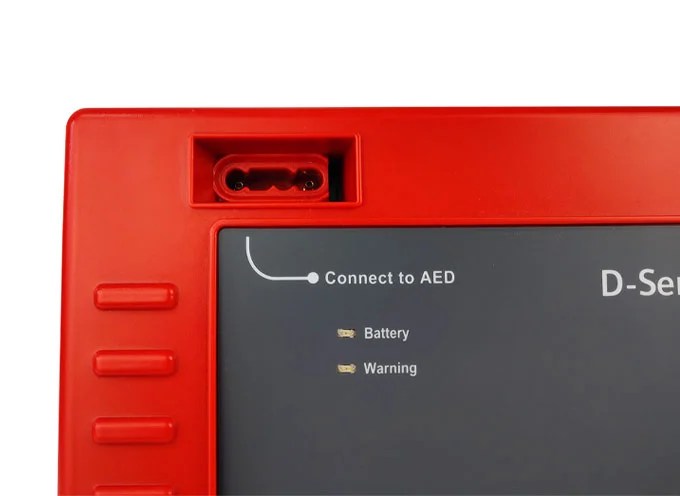

| Connector | AED-DSense connector | 1 |
| Battery | LiMnO2 12-Volt | 1 |
| Carrying case | Protective storage case | 1 |
| Cleaning cloth | Microfiber cleaning cloth | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss your testing requirements, or arrange a product demonstration. We provide fast delivery and comprehensive technical support for all DSense analyzer systems.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
