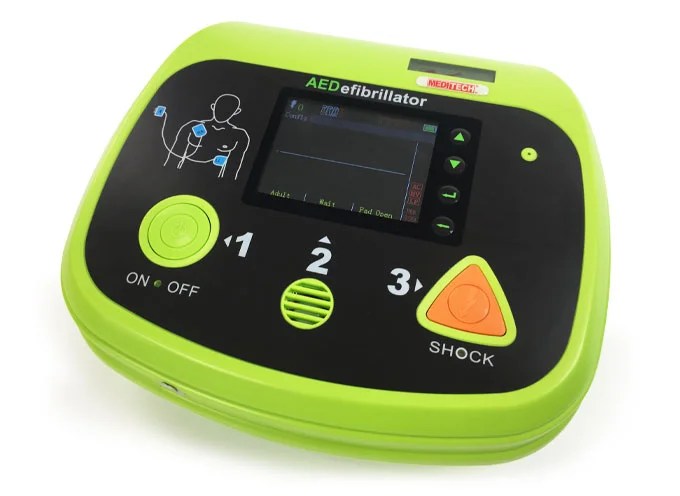

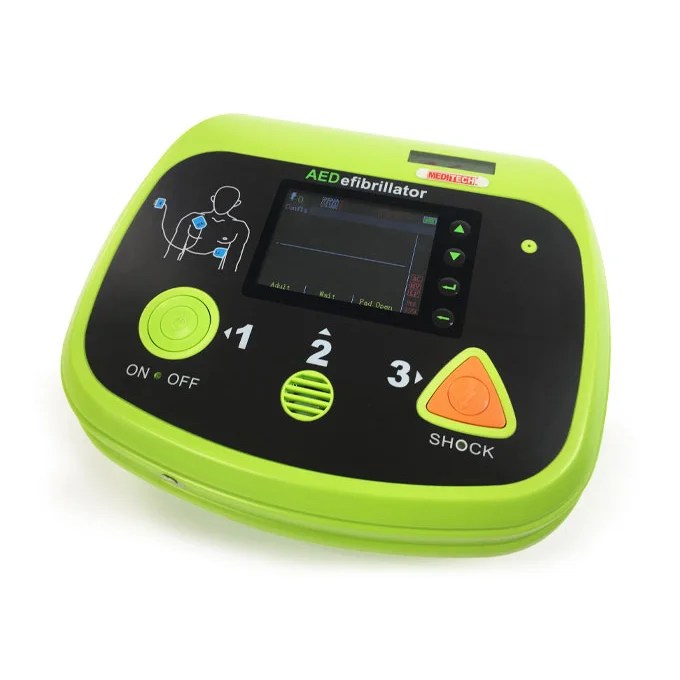

Portable Color Screen AED Defibrillator with ECG – Defi 6
Advanced portable AED with color screen ECG visualization, multi-language voice guidance, and SD card data recording. Delivers biphasic defibrillation with adult and pediatric modes, designed for rapid emergency response in clinical and public settings.
Clinical overview
The Defi 6 is a fully automated external defibrillator combining ease of use with advanced clinical capability. Its color LCD screen provides real-time ECG visualization, enabling operators to monitor cardiac rhythm and device status simultaneously. The three-step defibrillation process with two-button operation minimizes user error, while extensive voice and visual prompts guide the operator through each phase of resuscitation.
Biphasic truncated exponential energy output (150J–200J adult; 50J–100J pediatric) is delivered with high accuracy across a wide impedance range. Continuous event recording and optional CPR coaching support both immediate response and post-event documentation. The integrated SD card and infrared data transfer enable seamless integration with hospital information systems and regulatory compliance reporting.
Key features & surgeon benefits
Color LCD Screen with ECG
- Real-time ECG waveform display for rhythm assessment
- Clear visualization of device settings and battery status
- Multi-language voice and visual prompts for operator guidance
Simplified Two-Button Operation
- Three-step defibrillation process with minimal user interaction
- 20 audible prompts and LED self-test indicators
- Lock-out protection prevents inadvertent defibrillation
Comprehensive Event Recording
- SD card storage for continuous event documentation
- Infrared data transfer to computer or printer
- AED storage software for real-time ECG display and waveform analysis
Modular Accessory Suite
- Optional 3-lead ECG cable for enhanced cardiac monitoring
- CPR coaching module available for training and real-time guidance
- AED cabinet and IrDA USB adapter for institutional deployment
Technical specifications
| Indications | Ventricular fibrillation and pulseless ventricular tachycardia in adult and pediatric patients |
|---|---|
| Energy Output | Biphasic truncated exponential; 150J–200J (adult), 50J–100J (pediatric) |
| Charge Time | 8 sec to 150J; 4 sec to 50J/100J; 10 sec to 200J (new battery) |
| Analysis Time | 9 seconds |
| Output Accuracy | ±15% into any impedance from 25 to 175 Ω |
| Impedance Range | Output enabled: 20–200 Ω |
| Display | Color LCD screen with ECG waveform and settings visualization |
| Controls | Two buttons: On/Off and Shock |
| Audible Prompts | 20 voice prompts in multiple languages |
| Visual Indicators | LED automatic self-test; battery capacity indicator |
| Data Recording | SD card storage; infrared data transfer capability |
| Battery Type | Non-rechargeable 15V DC, 2.8Ah |
| Battery Capacity | 100 discharges at 200J or 120 discharges at 150J |
| Battery Shelf Life | 10 years (5 years storage + 5 years standby); 5 years standby after installation |
| Dimensions | 220 × 170 × 70 mm |
| Weight | 1.5 kg |
| Operating Humidity | 30–95% relative humidity (non-condensing) |
| Storage Temperature | −20 °C to +55 °C (with battery) |
| Storage Humidity | Up to 93% (non-condensing, without battery) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| AED Pad | Disposable defibrillation electrode pads (adult/pediatric) | 1 |
| Battery | Non-rechargeable 15V DC, 2.8Ah lithium battery | 1 |
| AED Case | Protective carrying case for transport and storage | 1 |
| Cleaning Cloth | Microfiber cloth for device maintenance | 1 |
Optional accessories & software
| Option | Description |
|---|---|
| ECG Cable (3-Lead) | Enhanced cardiac monitoring and rhythm analysis |
| AED Cabinet | Wall-mounted storage cabinet with alarm and access control |
| IrDA USB Adapter | Infrared data transfer interface for computer connectivity |
| AED Storage Software | Event documentation, real-time ECG display, waveform analysis, and selective printing |
| CPR Coaching Module | Real-time CPR guidance and compression rate feedback |
