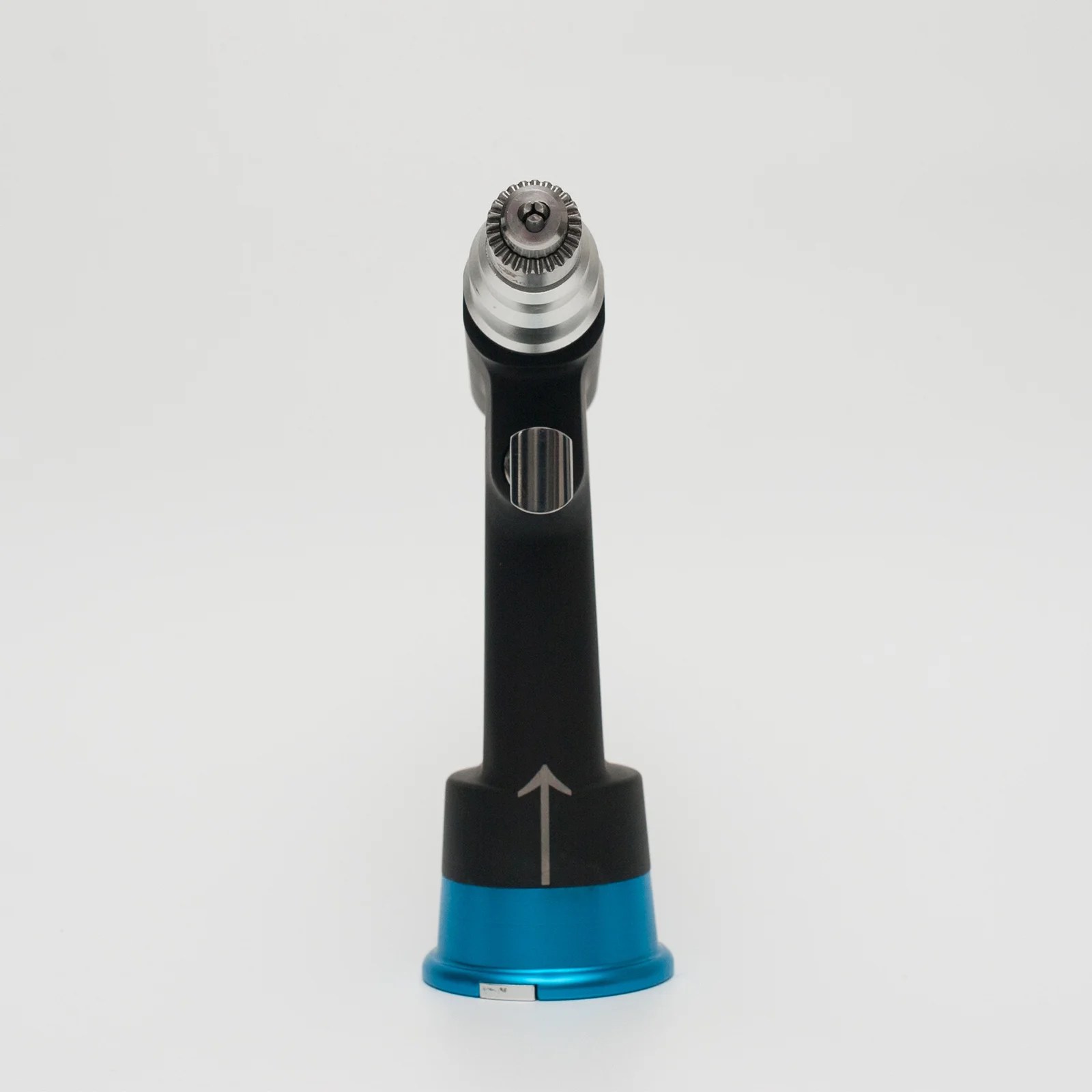

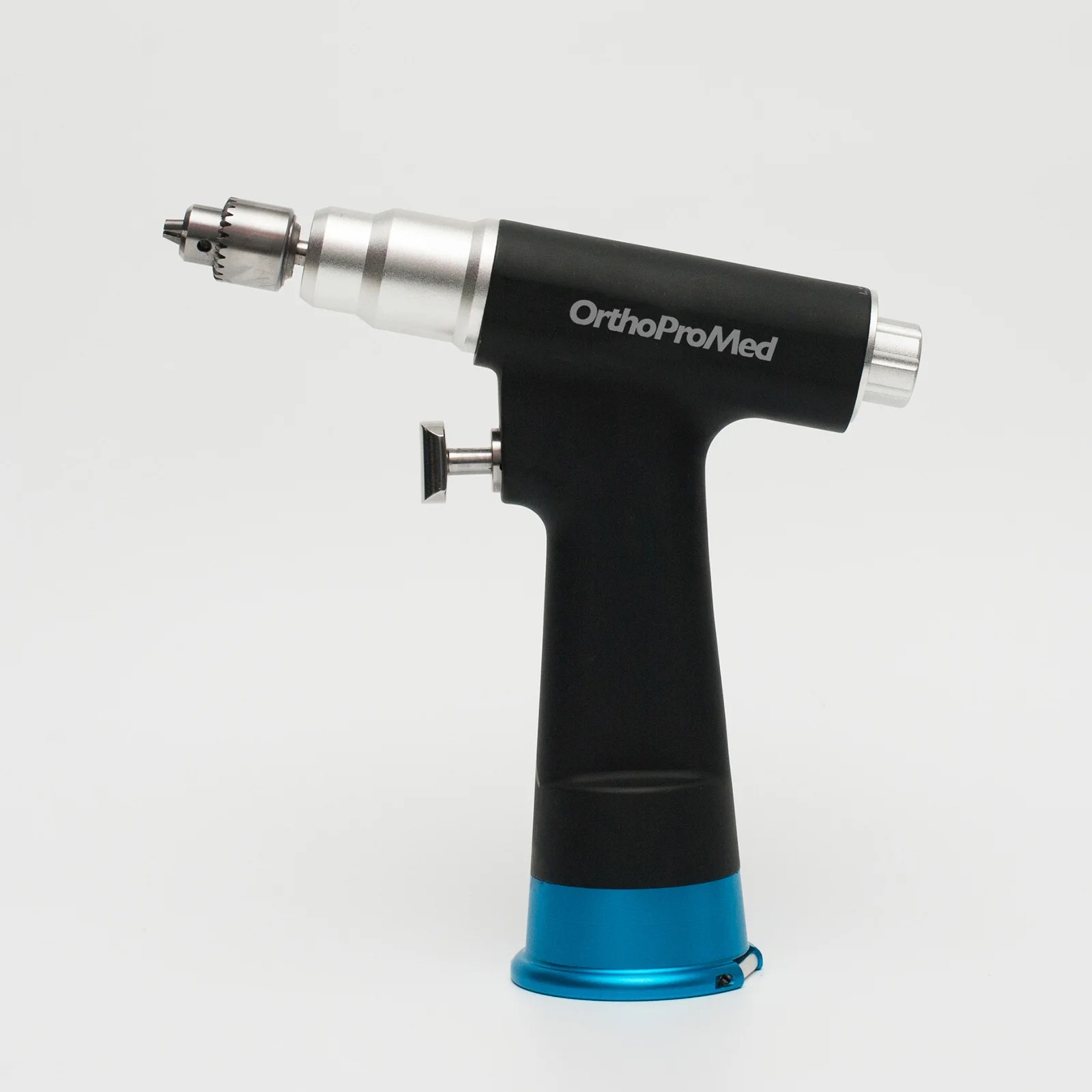

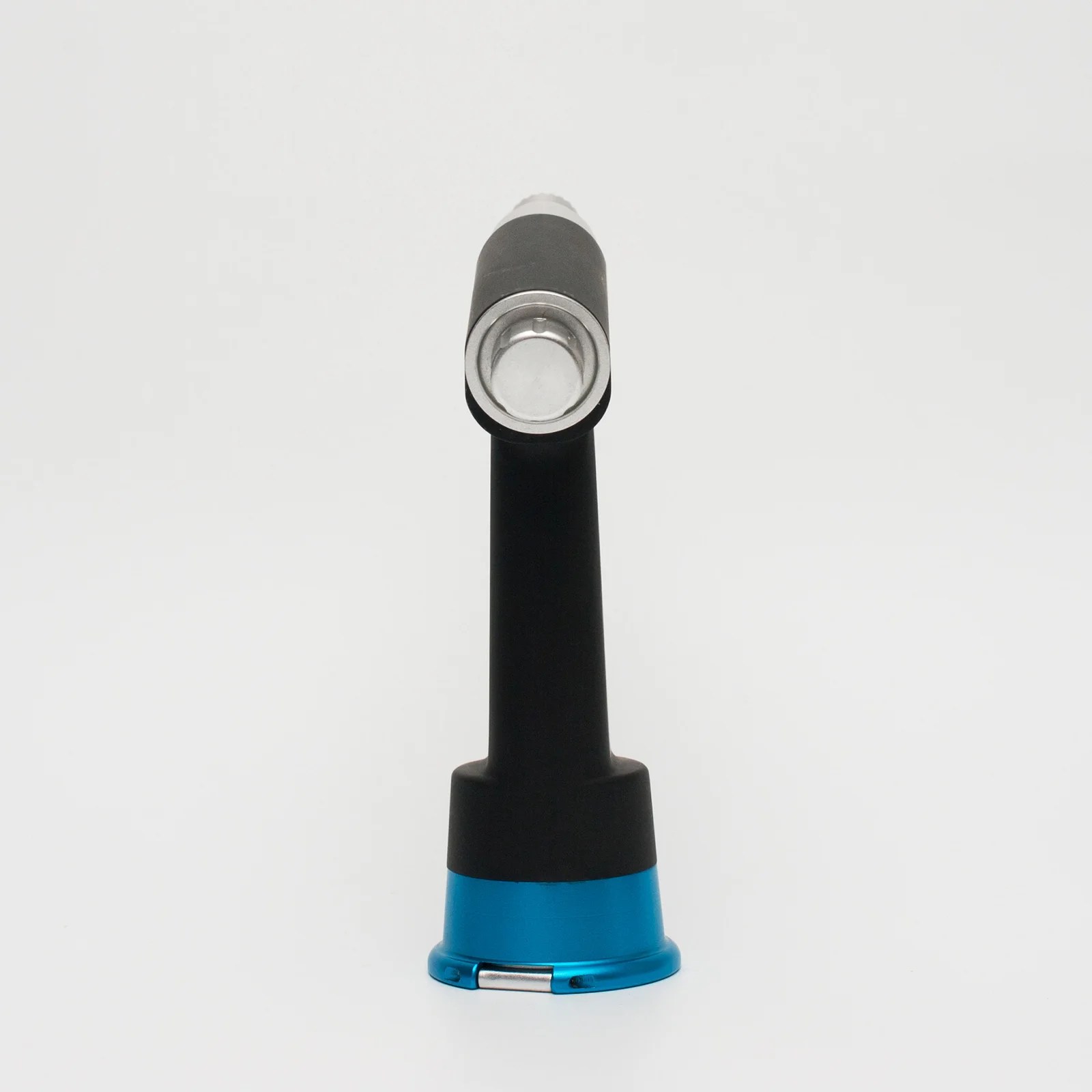

Medical Electric Minimal Invasive Bone Drill (Specially For Ankles Operation) 106
- Suitable for all types of orthopedic trauma surgery
- Mainly used for drilling holes for plate and screw placement during trauma surgery
- Variable speed with low noise and high coaxiality
- Long service life for extended use
- 0-4mm diameter drill chuck
- Input voltage range of 110V-240V/50Hz
- Battery capacity of 1600mA/h and rated speed of 0-1000rpm (customizable)
- SKU
- B154E7B21B2F
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Medical Electric Minimal Invasive Bone Drill (Specially For Ankles Operation) 106
Precision-engineered electric bone drill designed for minimal invasive orthopedic trauma surgery. Variable speed control with low noise operation and high coaxiality ensures reliable plate and screw placement. Ideal for hand, foot, and ankle procedures with extended battery life and universal voltage compatibility.
Clinical overview
The Model 106 electric bone drill is purpose-designed for minimal invasive orthopedic trauma surgery, with particular application in ankle, hand, and foot procedures. The device excels in drilling precise holes for plate and screw placement during complex trauma cases, delivering consistent performance across a wide range of bone densities and surgical scenarios.
Variable speed control (0–1000 rpm, customizable) combined with low noise operation (≤60 dB) and high coaxiality ensures surgeon confidence and patient comfort. The compact, ergonomic handpiece design facilitates access to confined surgical fields, while the 1600 mAh battery provides extended runtime per charge. Universal voltage input (110–110V/240V/50/60Hz) and HTHP sterilization compatibility make this system suitable for deployment in diverse clinical environments worldwide.
Key features & surgeon benefits
High Coaxiality & Accuracy
- Minimal runout ensures precise hole placement
- Consistent drilling performance across bone types
- Reduces risk of screw misalignment
Variable Speed Control
- 0–1000 rpm adjustable speed (customizable)
- Low noise operation (≤60 dB) minimizes OR stress
- Smooth torque delivery (4.5 Nm rated)
Extended Service Life
- Robust motor design for high-volume use
- 1600 mAh battery capacity for sustained runtime
- HTHP sterilization compatible (134–138°C)
Global Deployment Ready
- Universal voltage input (110–110V/240V/50/60Hz)
- 0–4mm drill chuck accommodates standard bits
- Compact design for hand and foot surgery access
Technical specifications
| Indications | Orthopedic trauma surgery, plate and screw placement, hand and foot surgery |
|---|---|
| Drill chuck diameter | 0–4 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Battery capacity | 1600 mAh |
| Rated speed | 0–1000 rpm (customizable) |
| Rated torque | 4.5 Nm |
| Charging voltage | 7.2 V |
| Sterilisation method | HTHP |
| Sterilising temperature | 134–138°C |
| Noise level | ≤60 dB |
| Warranty | 2 Year Manufacturer Warranty |

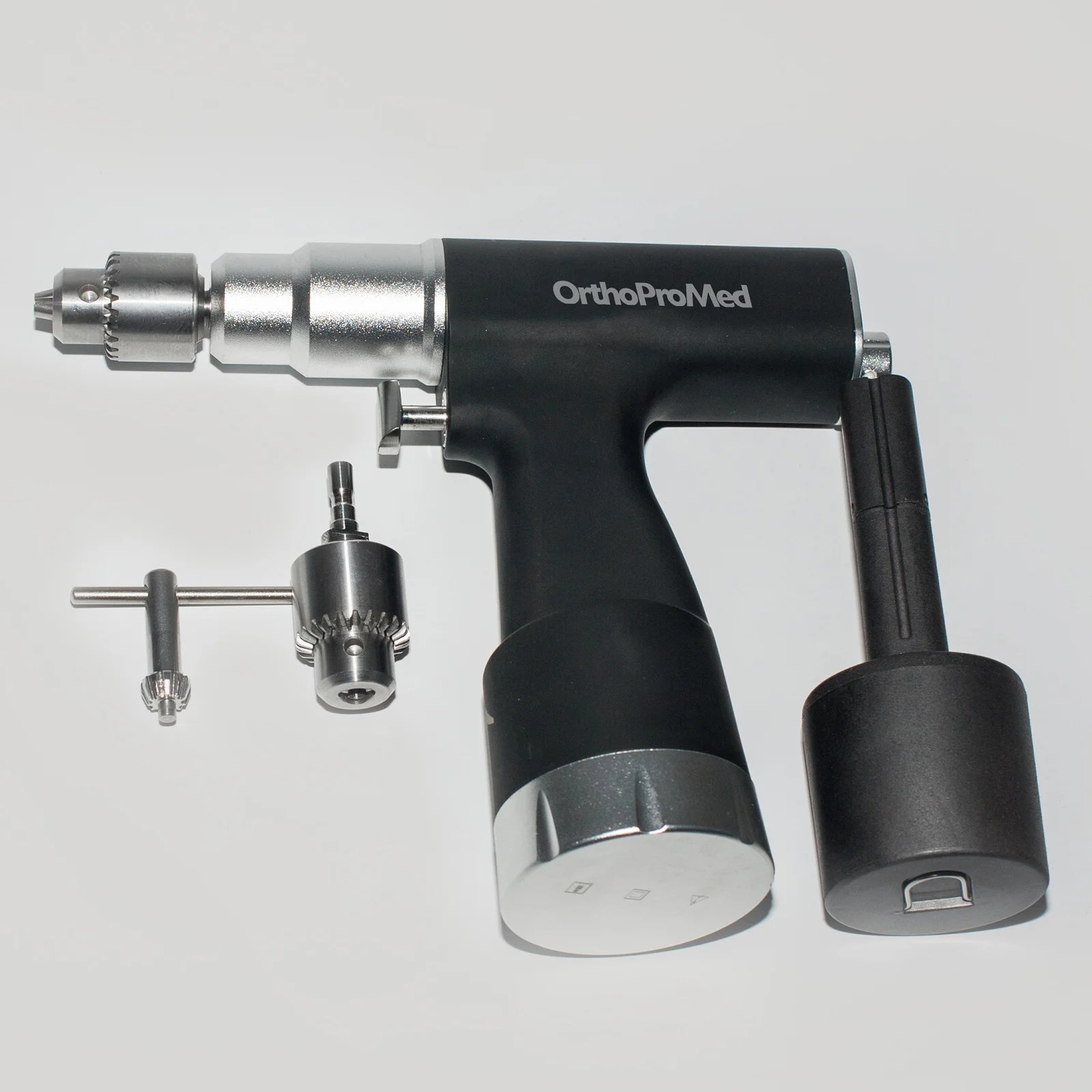

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Electric bone drill motor unit with 0–4 mm chuck | 1 |
| Battery pack | 1600 mAh rechargeable lithium-ion battery | 1 |
| Charger unit | 7.2V mains charger (110–110V/240V compatible) | 1 |
| Drill bits | Standard orthopedic drill bits (assorted sizes, 0–4 mm) | As applicable |
| Carrying case | Protective transport and storage case | 1 |
