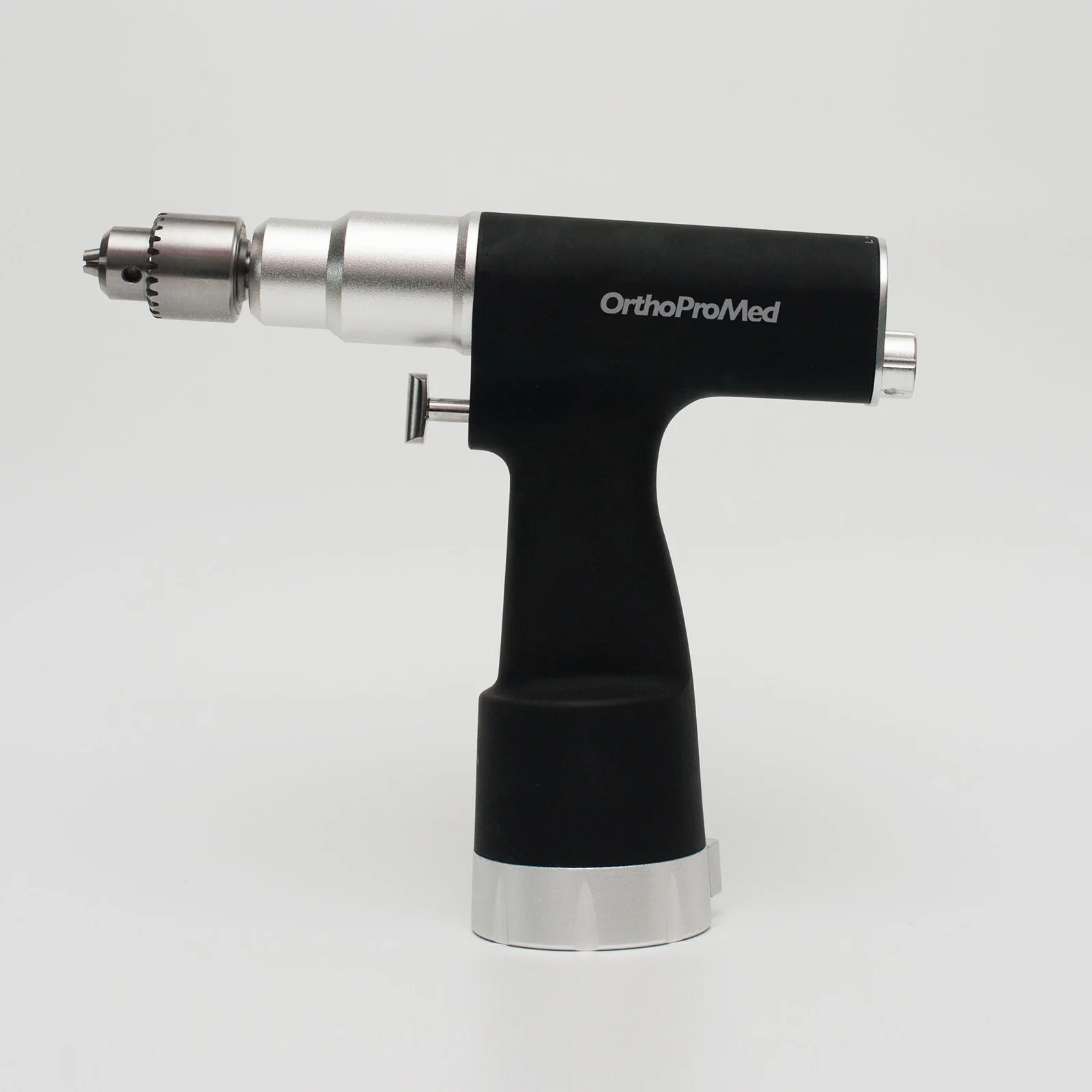

Medical Electric Cannulated Bone Drill 602
- Suitable for intramedullary nail and kirschner wire operations
- Center hole diameter is 4.0mm for improved accuracy
- Adjustable drill chuck diameter from 0-8mm
- Input voltage range of 110V-240V/50Hz
- Output power of ≤120W
- Rated speed of 0-1000rpm with customized options available
- SKU
- 5E8A5161DE49
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Medical Electric Cannulated Bone Drill 602
Precision-engineered electric cannulated bone drill designed for intramedullary nail and Kirschner wire operations. Features a 4.0 mm center hole diameter for superior accuracy and concentricity, with adjustable chuck diameter from 0–8 mm and variable speed control up to 1000 rpm.
Clinical overview
The Medical Electric Cannulated Bone Drill 602 is engineered for all brands of intramedullary nail and Kirschner wire operations. The 4.0 mm center hole diameter ensures precise concentricity, improving operational accuracy and delivering superior clinical outcomes. This instrument is suitable for a wide range of orthopedic trauma procedures requiring reliable, controlled drilling performance.
With variable speed control (0–1000 rpm) and adjustable chuck diameter (0–8 mm), the drill accommodates diverse surgical applications. The compact, ergonomic design and low noise output (≤60 dB) enhance surgeon comfort during extended procedures, while the robust 6.3 Nm rated torque provides consistent power delivery across all drilling tasks.
Key features & surgeon benefits
Cannulated Design
- 4.0 mm center hole diameter for guide wire compatibility
- Precise concentricity improves accuracy of nail placement
- Reduces operative time and tissue trauma
Variable Speed Control
- 0–1000 rpm adjustable speed for optimal bone engagement
- Customized speed options available for specific applications
- Smooth acceleration and consistent torque delivery
Universal Compatibility
- Adjustable chuck diameter 0–8 mm accommodates various instruments
- Compatible with all major intramedullary nail systems
- Suitable for Kirschner wire and standard drilling procedures
Robust Performance
- 6.3 Nm rated torque for consistent power delivery
- Low noise operation (≤60 dB) reduces fatigue
- HTHP sterilizable at 134–138°C for infection control
Technical specifications
| Indications | Intramedullary nail operations, Kirschner wire procedures, orthopedic trauma fixation |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Center hole diameter | 4.0 mm |
| Input voltage | 110V–240V / 50 Hz |
| Output power | ≤120 W |
| Rated speed | 0–1000 rpm (customized options available) |
| Rated torque | 6.3 Nm |
| Battery capacity | 1800 mA/h |
| Charging voltage | 14.4 V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤60 dB |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill unit | Electric cannulated bone drill with variable speed control | 1 |
| Power cord | 110V–240V / 50 Hz input cable | 1 |
| Charging unit | 14.4 V battery charger | 1 |
| Battery pack | 1800 mA/h rechargeable battery | 1 |
| Chuck key | Adjustable drill chuck key (0–8 mm) | 1 |
| Sterilization case | Protective carrying and sterilization case | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, arrange a demonstration, or discuss customized configurations for your surgical facility. We provide fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
