- Versatile bone drill suitable for intramedullary nail and kirschner wire operations
- Precise concentricity for improved operation accuracy
- Adjustable drill chuck diameter from 0-8mm
- Input voltage range of 110V-240V/50Hz
- Output power ≤120W for efficient performance
- Battery capacity of 1800mA/h for extended use
- Customizable rated speed up to 1000rpm
Versatile electric-powered bone drill engineered for intramedullary nail and Kirschner wire operations. Delivers precise concentricity and improved operational accuracy with adjustable chuck diameter and customizable speed control for optimal surgical performance.

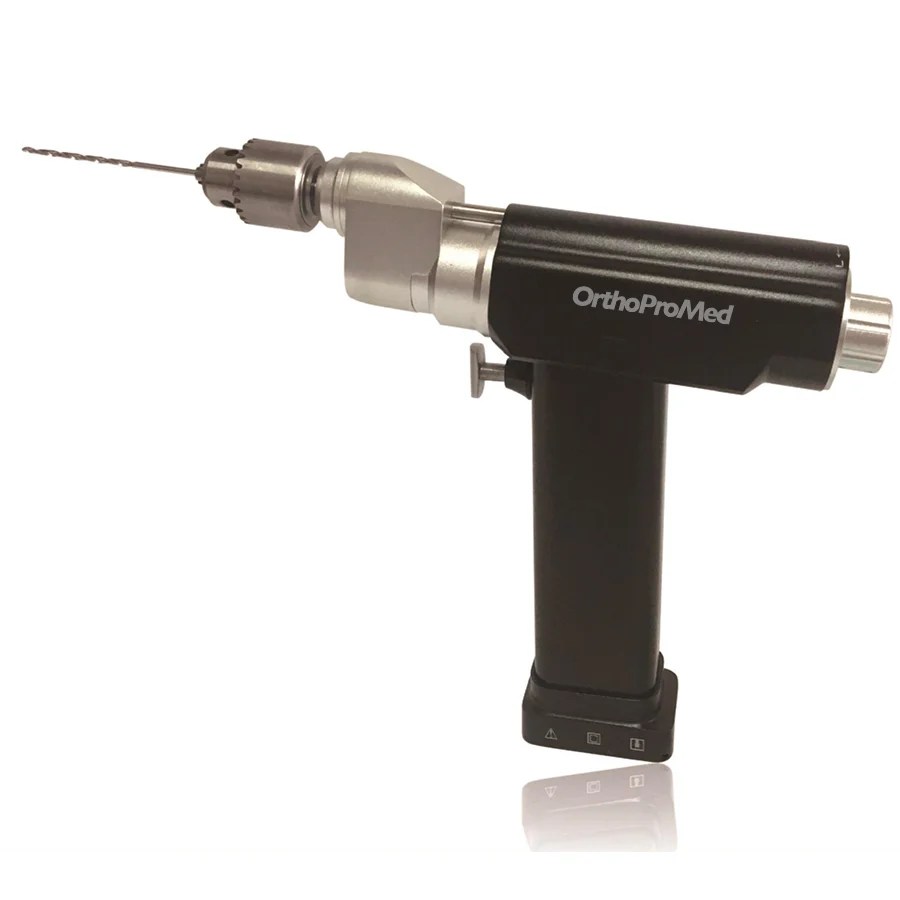

The Medical Electric Cannulated Bone Drill 601 is purpose-designed for precision drilling in intramedullary nail and Kirschner wire procedures. Its precise concentricity ensures superior accuracy and reproducibility, reducing operative time and improving surgical outcomes. The 4.0 mm centre hole accommodates standard guide wires, while the adjustable chuck (0–8 mm) provides versatility across a wide range of implant systems and wire gauges.
With input voltage flexibility (110–110V/240V / 50/60Hz) and compact, ergonomic design, this drill integrates seamlessly into existing OR workflows. The unit delivers consistent torque (6.3 Nm) and customizable speed control (0–1000 rpm) for controlled bone engagement and reduced thermal necrosis. HTHP sterilization compatibility ensures full integration with standard surgical protocols.
| Indications | Intramedullary nail fixation, Kirschner wire placement, cannulated bone drilling |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Centre hole diameter | 4.0 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120 W |
| Rated torque | 6.3 Nm |
| Rated speed | 0–1000 rpm (customizable) |
| Battery capacity | 1800 mAh/h |
| Charging voltage | 7.2 V |
| Noise level | ≤60 dB |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Drill unit | Electric cannulated bone drill handpiece with adjustable chuck | 1 |
| Power cable | Universal voltage input cable (110–110V/240V / 50/60Hz) | 1 |
| Battery pack | Rechargeable battery 1800 mAh/h, 7.2 V charging voltage | 1 |
| Charger | Standard charger unit | 1 |
| Sterilization container | HTHP-compatible storage and sterilization tray | 1 |
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Medical Electric Cannulated Bone Drill 601. We offer flexible ordering and rapid dispatch to UK and international locations.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
