- Suitable for all brands of intramedullary nail and kirschner wire operations
- Features a center hole diameter of 4.0mm for precise concentricity
- Offers a drill chuck diameter range of 0-8mm
- Operates on an input voltage of 110V-240V/50Hz
- Equipped with an output power of ≤120W
- Has a rated speed of 0-1000rpm with customization available
Precision-engineered electric cannulated bone drill designed for intramedullary nail and Kirschner wire operations. Features a 4.0mm center hole diameter for superior concentricity and operational accuracy across all major implant systems.

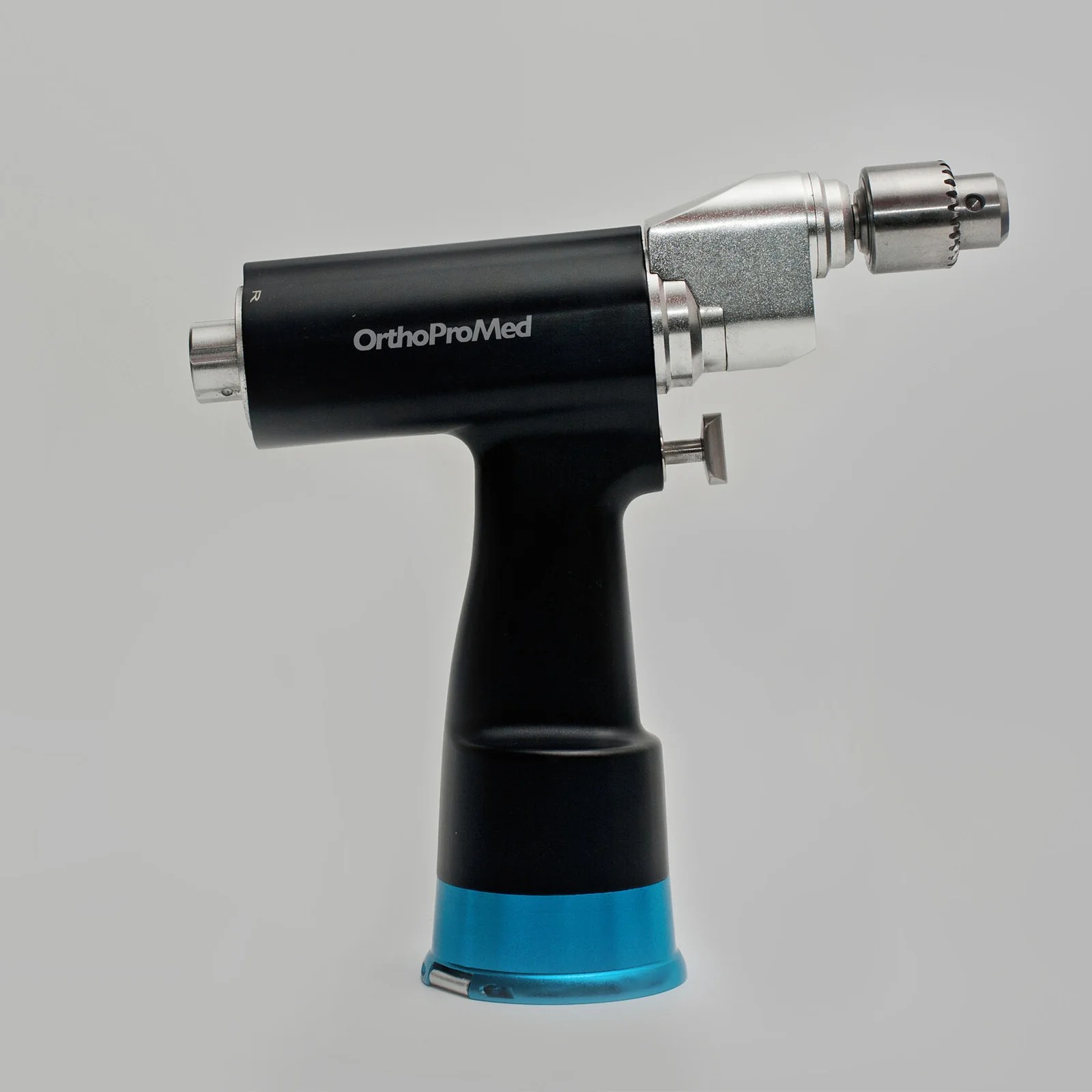

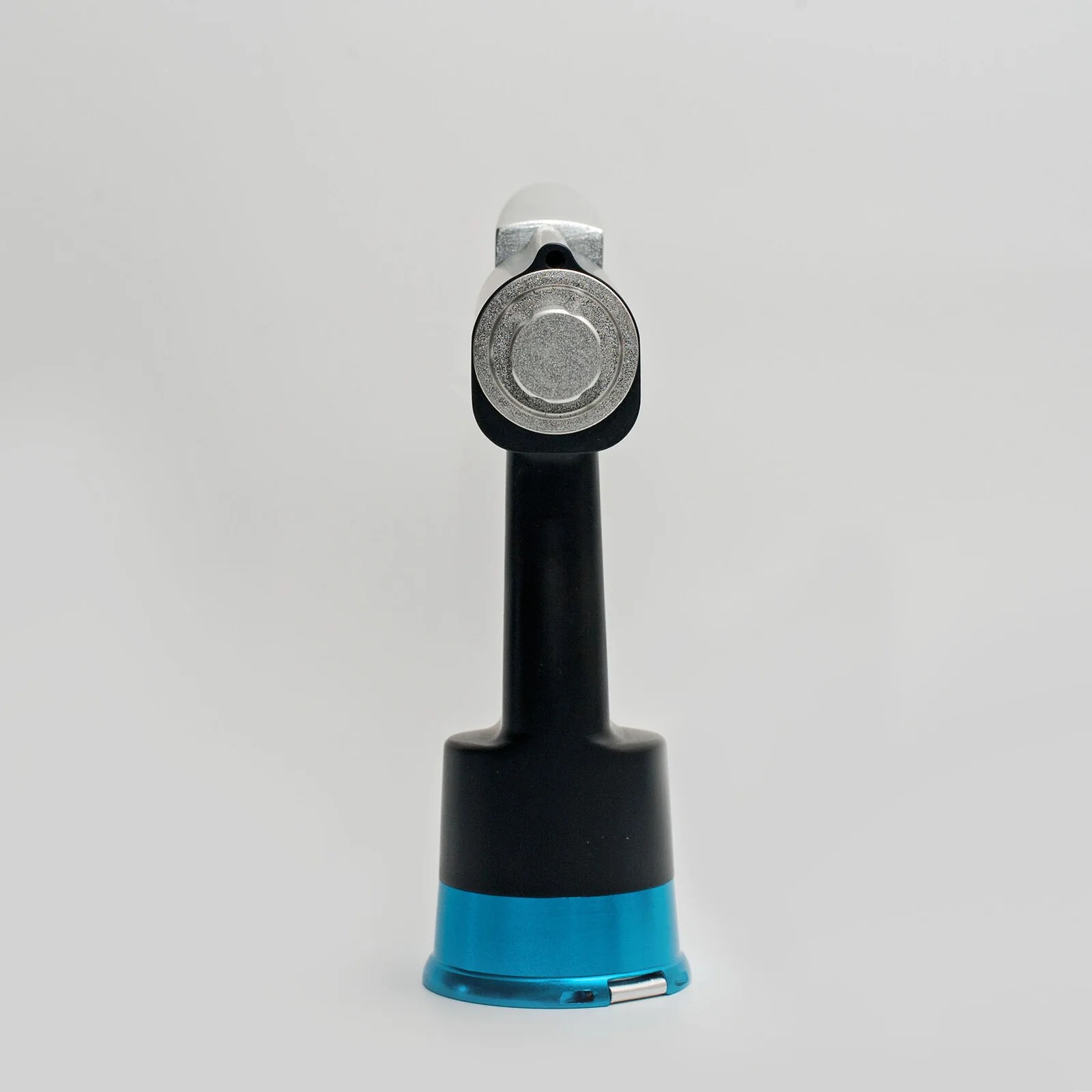

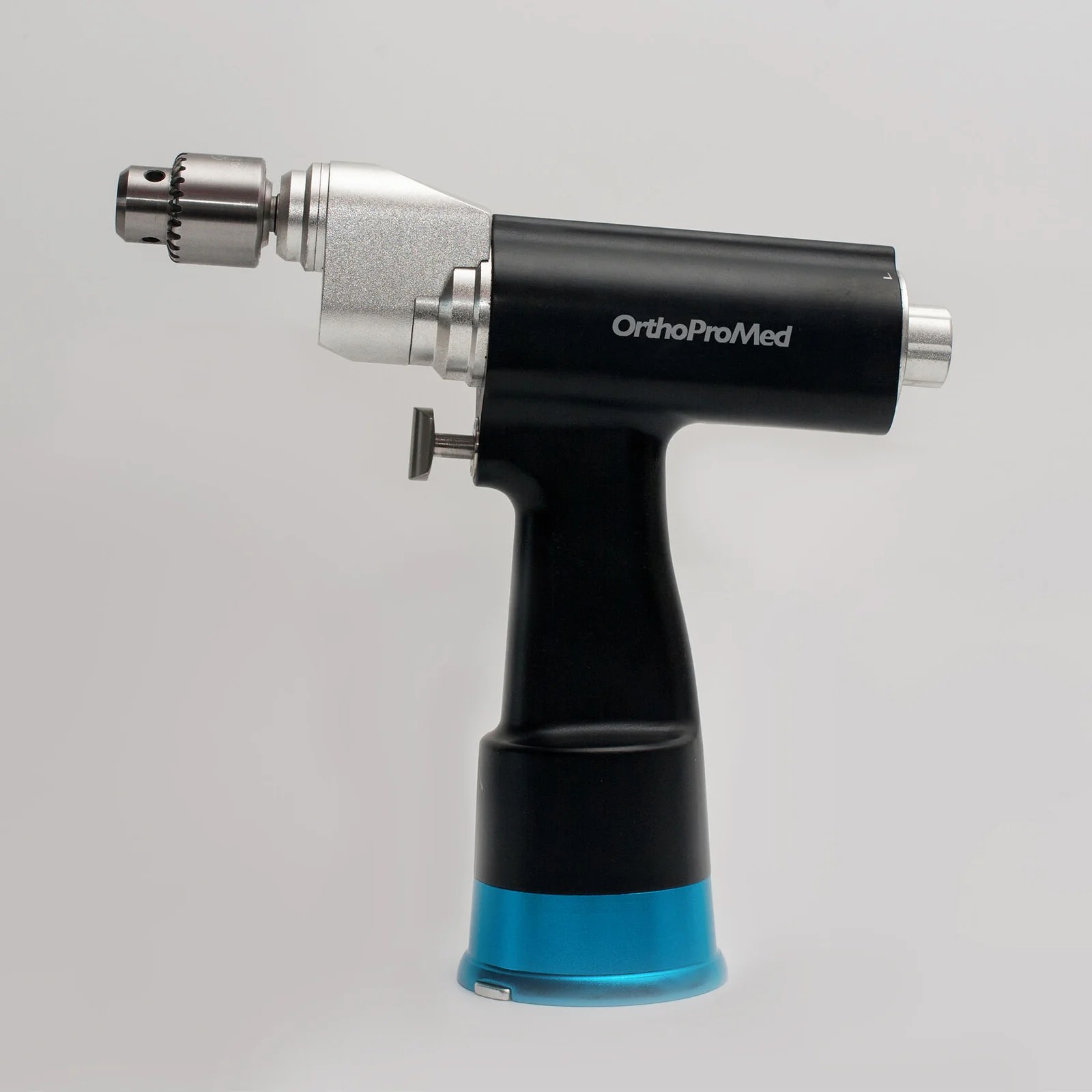

The Medical Electric Cannulated Bone Drill 605 is engineered for universal compatibility with all major brands of intramedullary nail systems and Kirschner wire applications. The 4.0mm center hole diameter ensures precise concentricity, significantly improving operational accuracy and delivering superior clinical outcomes. This design minimizes deviation during drilling, reducing tissue trauma and enhancing implant positioning reliability.
With variable speed control (0–1000rpm), surgeons can optimize drilling parameters for different bone densities and surgical scenarios. The compact, ergonomic design combined with low noise operation (≤60dB) supports extended operative procedures while maintaining surgeon comfort and patient safety.
| Indications | Intramedullary nail fixation, Kirschner wire placement, cannulated bone drilling |
|---|---|
| Sizes / range | Chuck diameter 0–8mm; rated speed 0–1000rpm (customisation available) |
| Material | Surgical steel and composite construction |
| Sterilisation | HTHP (134–138°C) |
| Input voltage | 110V–240V / 50Hz |
| Output power | ≤120W |
| Rated torque | 6.3Nm |
| Battery capacity | 1800mA/h |
| Charging voltage | 14.4V |
| Noise level | ≤60dB |
| Packaging | Sterile single-unit or multi-pack configurations available |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|

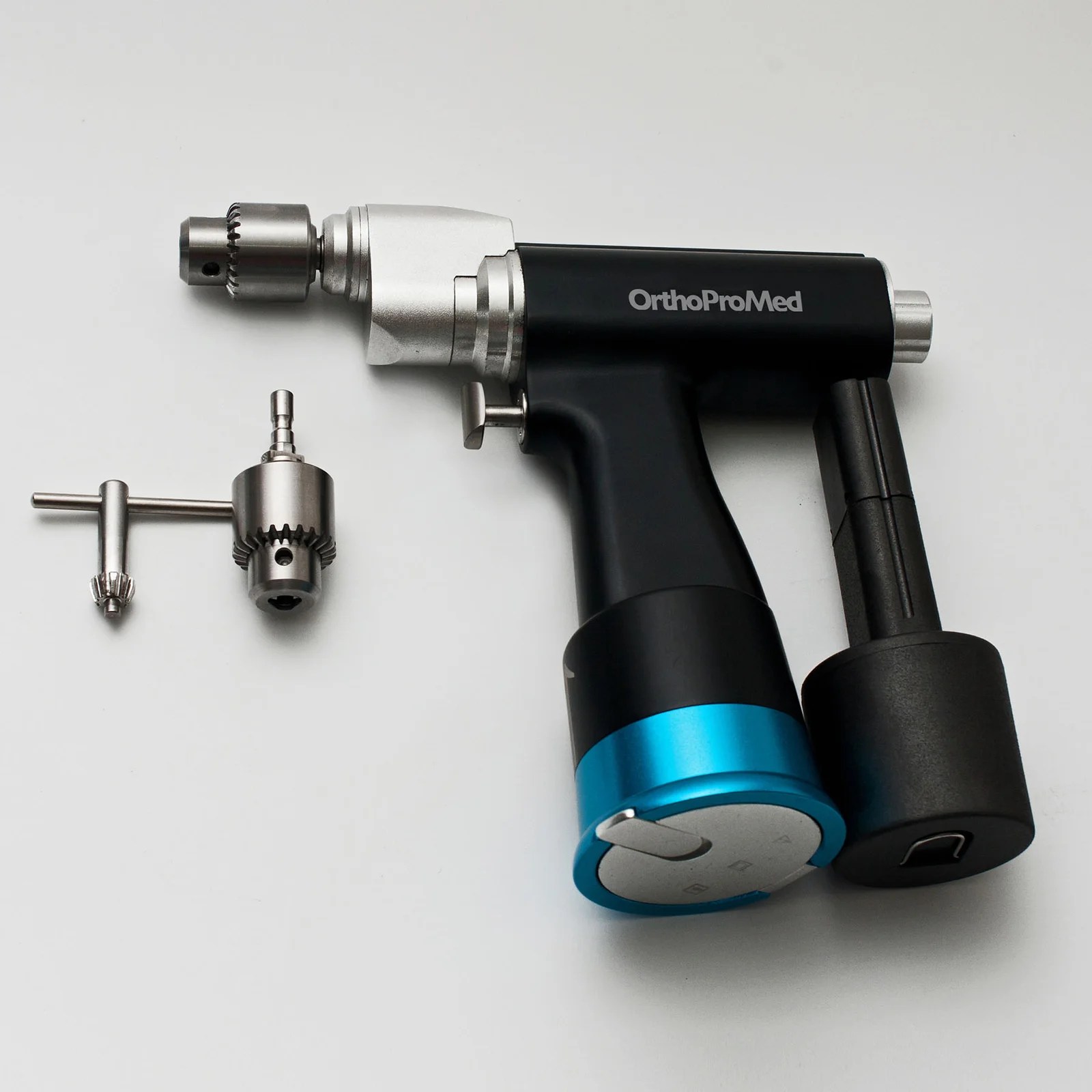

| Electric Cannulated Bone Drill Unit | Complete corded drill with variable speed control and 4.0mm center hole | 1 |
| Power Cable | Universal 110V–240V / 50Hz compatible cable | 1 |
| Chuck Key | Standard drill chuck adjustment key | 1 |
| User Manual | Multilingual surgical and maintenance guide | 1 |
Contact our sales team to discuss pricing, bulk orders, and customisation options for the Medical Electric Cannulated Bone Drill 605. We offer rapid delivery and comprehensive technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
The cannulation runs true over a K-wire so my cannulated screws follow the guide precisely with no drift at the cortex. Torque is ample for hip and ankle fixation.
Dr. Gordon Fairbanks, MD, FRCS (Orth)Verified buyerFeb 15, 2026
Assembles quickly for the scrub team and the trigger control is predictable. Has reprocessed reliably in our department.
Teresa Langford, RN, CNORVerified buyerAug 28, 2024
Smooth wire passage through the cannula and steady power under load. The corded design means I never worry about battery state mid-case.
Dr. Noor Abbasi, MD, FAAOSApr 10, 2026
