- Suitable for all kinds of orthopedic trauma surgery
- Features a diameter of drill chuck up to 8mm
- Operates on a versatile input voltage range of 110V-240V/50Hz
- Equipped with an output power of ≤120W
- Battery capacity of 1800mA/h for extended use
- Customizable rated speed of 0-1200rpm
- Designed with a sterilization method of HTHP at 134-138°C
A versatile, high-performance electric bone drill engineered for precision drilling and positioning in orthopedic trauma surgery. Features variable speed control, compact design, and robust construction for reliable performance across diverse surgical applications.

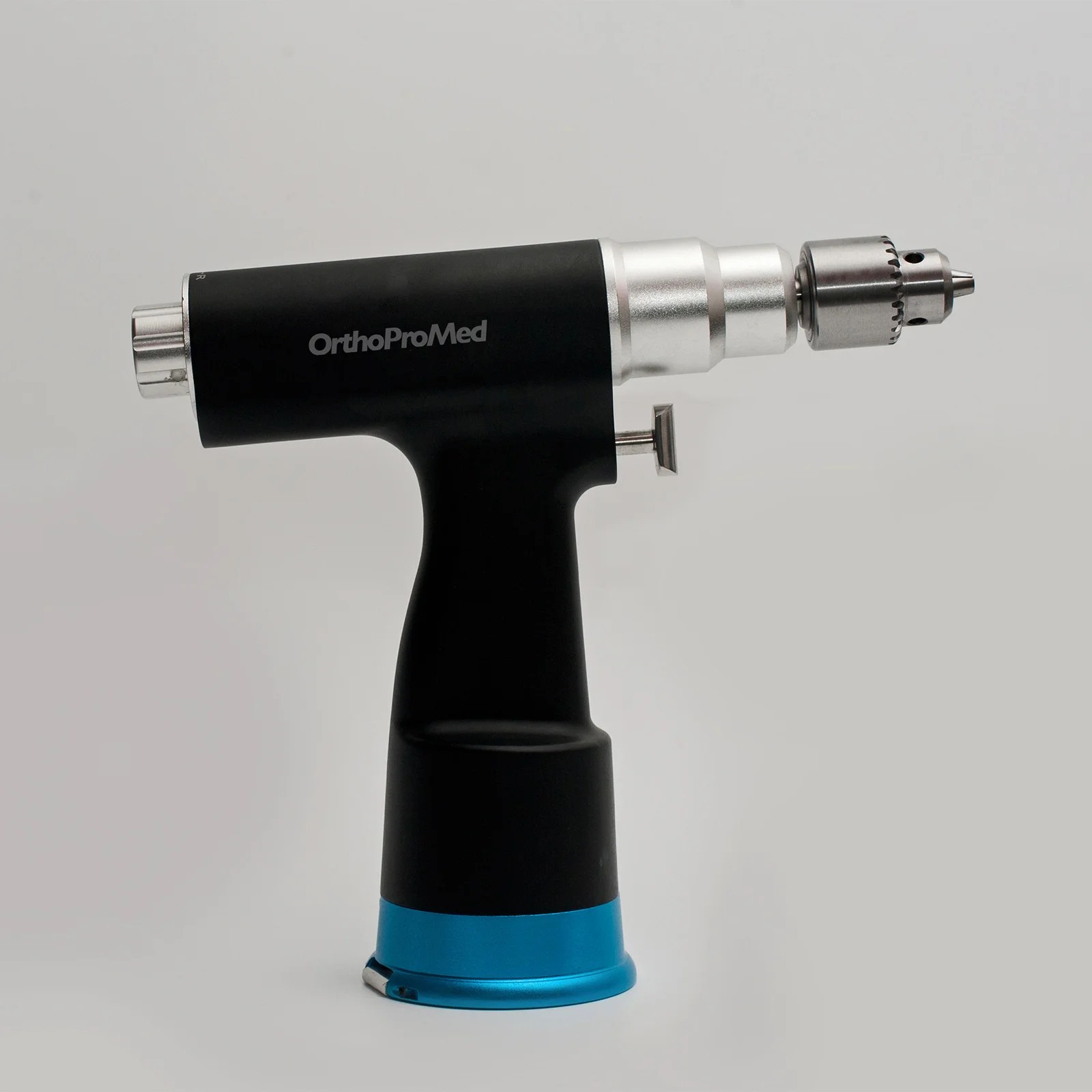

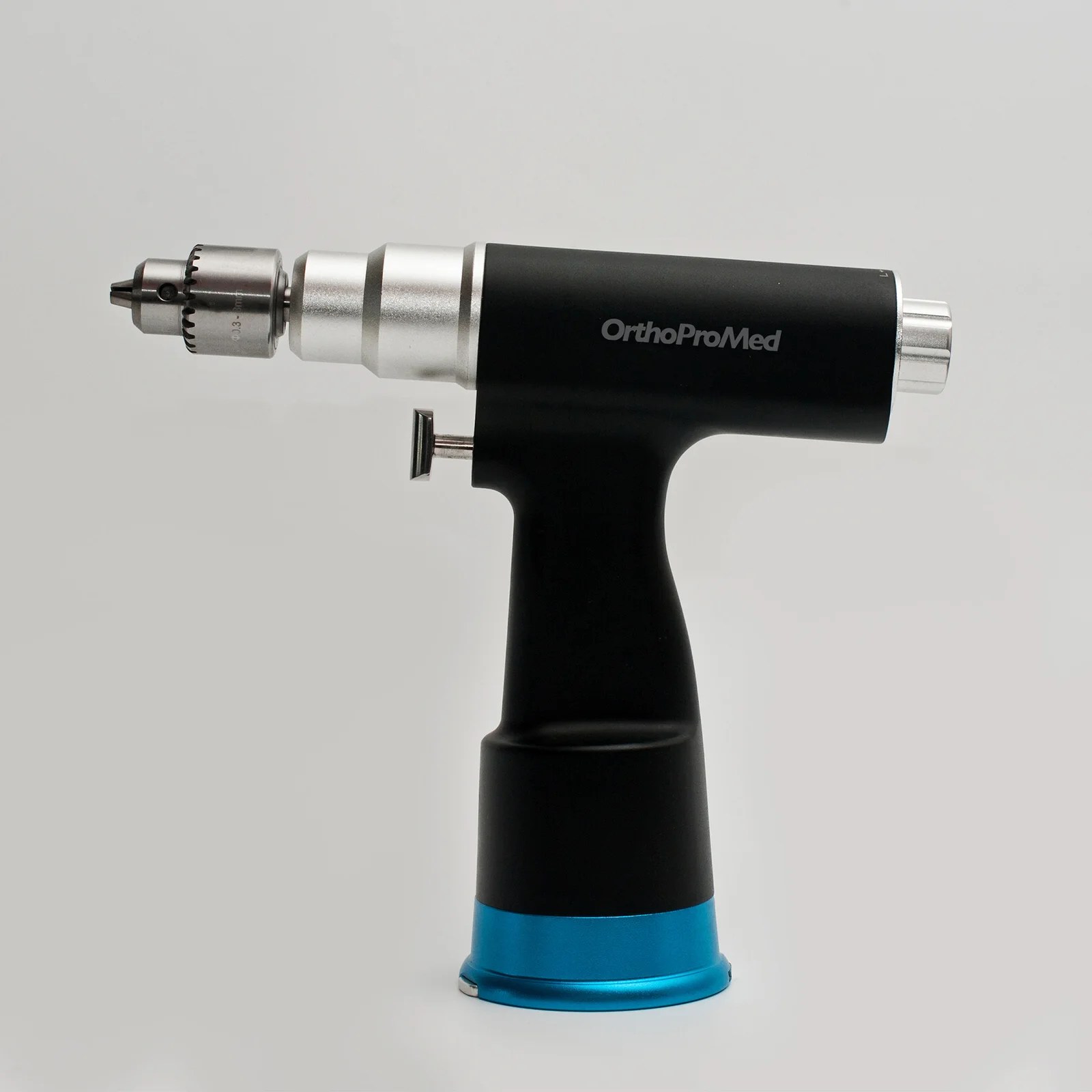

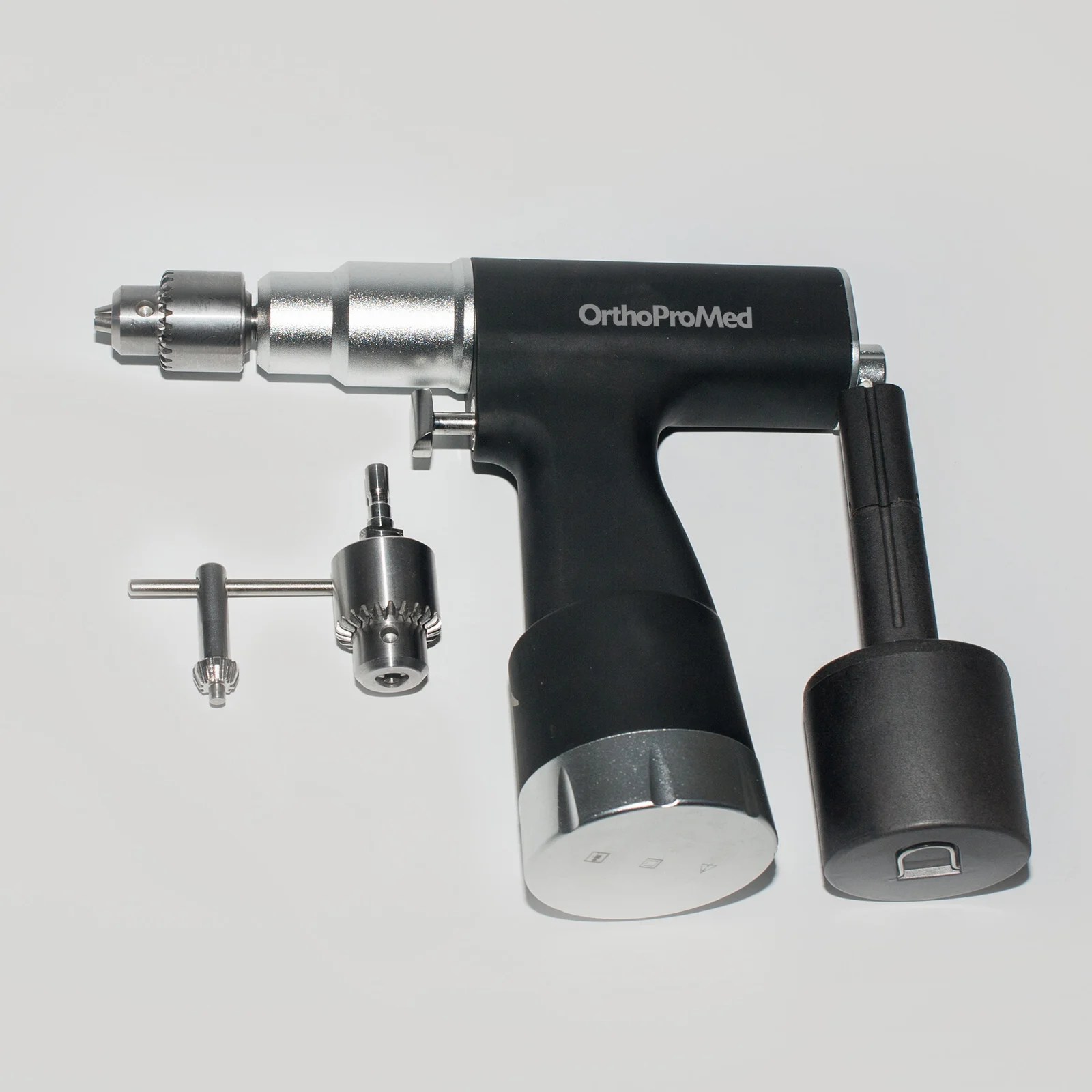

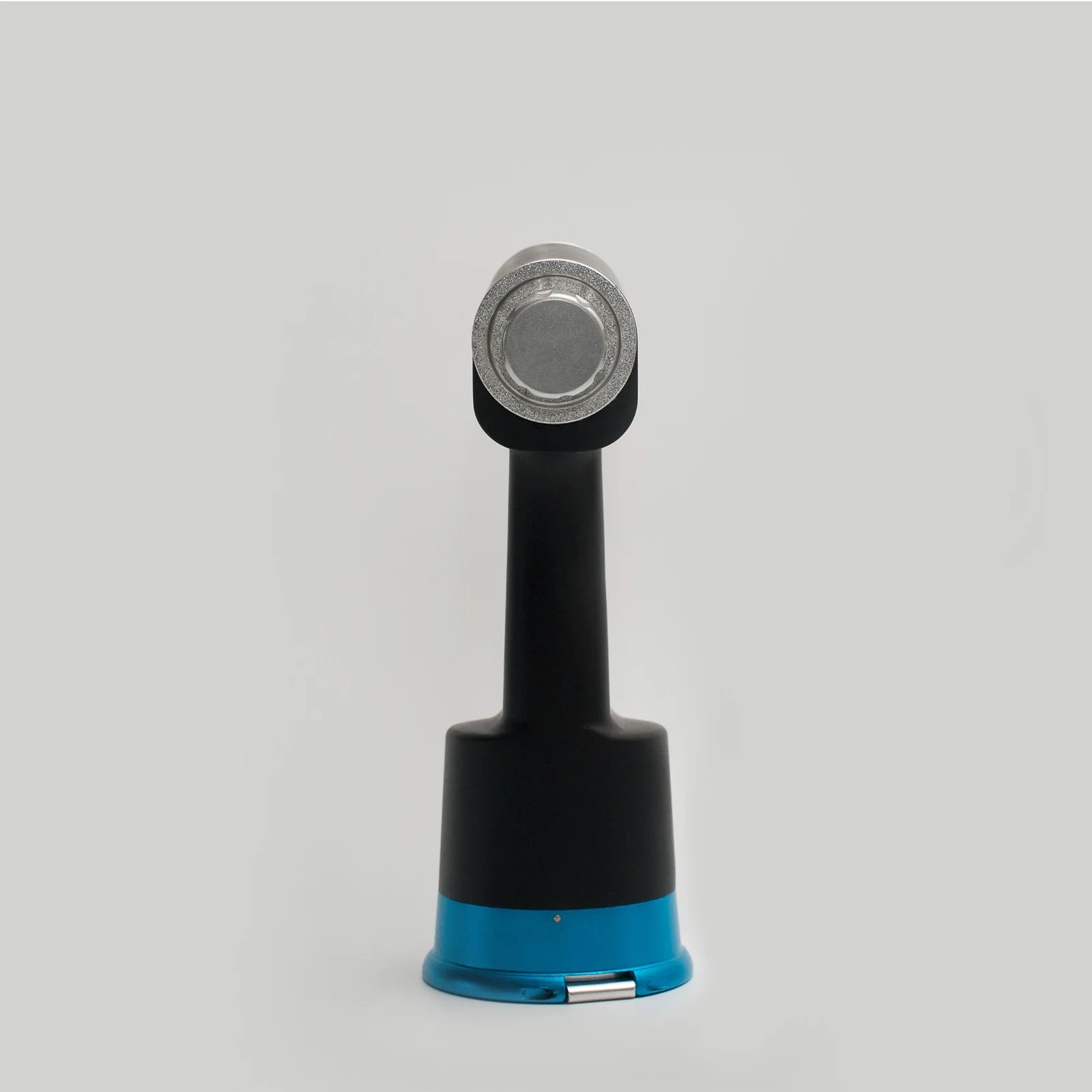

The Medical Electric Bone Drill 107 is purpose-built for orthopedic trauma procedures requiring precise bone drilling and positioning. Its variable speed capability (0–1200 rpm, customizable) and compact ergonomic design enable surgeons to work efficiently across a range of bone densities and surgical approaches. The drill accommodates bits up to 8 mm diameter, making it suitable for standard fixation, plating, and intramedullary techniques.
Engineered for durability in the operating theatre, the unit operates on universal input voltage (110–110V/240V/50/60Hz) and delivers consistent torque output (4.5 Nm) with minimal vibration and noise (≤70 dB). High-temperature sterilization compatibility ensures seamless integration into existing surgical protocols and sterilization workflows.
| Indications | Orthopedic trauma surgery; drilling and positioning of bone tissue |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Input voltage | 110–110V/240V / 50/60Hz |
| Output power | ≤120W |
| Rated speed | 0–1200 rpm (customizable) |
| Rated torque | 4.5 Nm |
| Battery capacity (cordless option) | 1800 mA/h |
| Charging voltage (cordless option) | 14.4V |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Electric Bone Drill Unit | Main handpiece with variable speed motor and quick-change chuck | 1 |
| Power cable | Universal voltage input cable (110–110V/240V/50/60Hz) | 1 |
| Chuck key | For secure bit installation and removal | 1 |
| Instruction manual | Operating, maintenance, and sterilization guidelines | 1 |
Contact our sales team to request a formal quote, discuss customization options, or arrange a product demonstration. We offer fast delivery and comprehensive technical support.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
We've been using this in our theatre for a few weeks now and setup was straightforward with clear documentation. It's stayed accurate and reliable throughout. Happy to recommend it to colleagues.
Nina Harris, RN, CNORVerified buyerFeb 11, 2026
Been putting it through daily use in the clinic and the value at this price point is hard to beat. Though the instructions could be a little clearer. Worth it on balance, with the caveats above.
Megan Turner, Nurse ManagerVerified buyerNov 23, 2025
Ordered this to replace an ageing unit and so far the build quality is genuinely reassuring. It's stayed accurate and reliable throughout. Solid purchase overall.
Robert Novak, RN, CNORVerified buyerOct 1, 2024
