- Suitable for all kinds of orthopedic trauma surgery
- Diameter of drill chuck: 0-8mm
- Rated speed: 0-1200rpm (customize available)
- Battery capacity: 1800A/h
- Output power: ≤120W
- Sterilization method: HTHP
- Noise level: ≤70db
Precision cordless electric bone drill engineered for orthopedic trauma surgery. Delivers consistent drilling and positioning performance with variable speed control, extended battery life, and low operational noise for enhanced surgical workflow and patient safety.

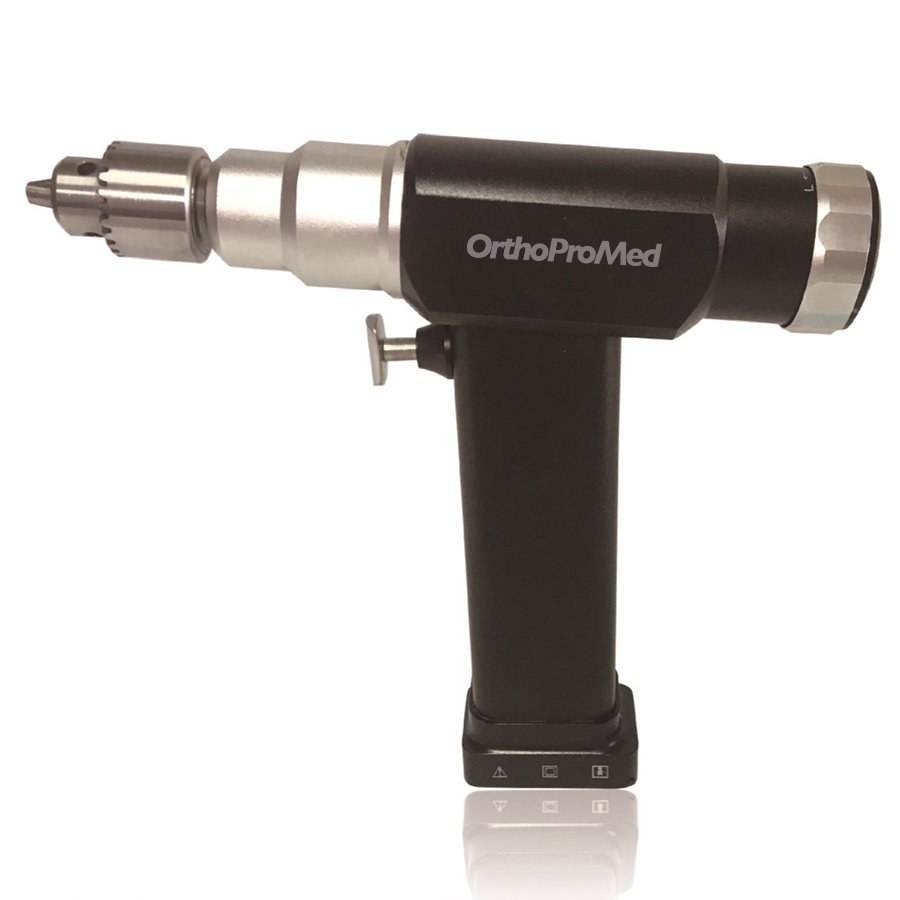

The Medical Electric Bone Drill 101 is purpose-designed for orthopedic trauma applications requiring reliable, controlled bone drilling and positioning. Its variable speed range (0–1200 rpm, customizable) accommodates diverse surgical techniques and bone densities, while the 0–8 mm drill chuck accepts standard instruments. The compact cordless design enhances surgical mobility and reduces entanglement risk in the operative field.
Engineered for durability and ease of sterilization, the drill features HTHP sterilization capability at 134–138°C, ensuring compatibility with standard hospital protocols. Low operational noise (≤70 dB) minimizes acoustic stress in the operating room, and the 1800 mAh battery provides extended runtime per charge, reducing downtime between procedures.
| Indications | Orthopedic trauma surgery, bone drilling and positioning |
|---|---|
| Drill chuck diameter | 0–8 mm |
| Rated speed | 0–1200 rpm (customizable) |
| Output power | ≤120 W |
| Rated torque | 4.5 Nm |
| Battery capacity | 1800 mAh |
| Charging voltage | 14.4 V |
| Input voltage | 110–110V/240V / 50/60Hz |
| Sterilisation method | HTHP (High Temperature High Pressure) |
| Sterilising temperature | 134–138°C |
| Noise level | ≤70 dB |
| Packaging | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
| Item | Description | Qty |
|---|---|---|
| Drill handpiece | Electric cordless bone drill with variable speed control | 1 |
| Battery pack | 14.4 V rechargeable lithium-ion, 1800 mAh | 1 |
| Charger unit | 110–110V/240V universal input charger | 1 |
| Quick-change chuck | 0–8 mm drill chuck with safety lock | 1 |
| Carrying case | Protective storage and transport case | 1 |
Contact our sales team to discuss pricing, delivery timelines, and customization options for the Medical Electric Bone Drill 101. We support institutional purchases, OEM partnerships, and direct clinical inquiries.
Available on request
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
