Sonoview® Full Digital Imaging Ultrasound Scanner
4.3(3 reviews)- Full digital imaging ultrasound scanner with a 15" color LCD screen
- Features PC-based technology with abundant functions for clear image results
- Broadband multi-frequency probes and large capacity storage options
- Includes options for additional probes and a laser printer for enhanced functionality
- SKU
- OD-00425
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Diagnostic Ultrasound

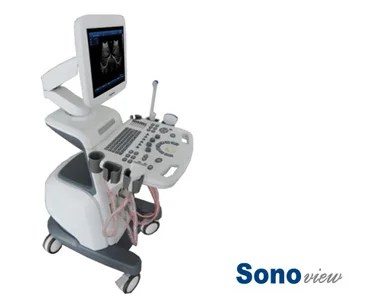

Sonoview® Full Digital Imaging Ultrasound Scanner
Advanced full digital imaging ultrasound system with 15" color LCD display and PC-based technology. Delivers clear, high-resolution images with broadband multi-frequency probes and comprehensive measurement capabilities for general, obstetric, gynecologic, cardiac, vascular, and small parts imaging.
Ordering Ref.
On Request
ConfigurationMainframe + Convex Probe
MaterialElectronic Components, LCD Display
ApplicationMulti-specialty Imaging
Customizable probe configurations and optional accessories available. DICOM-compatible for PACS integration.
Clinical overview
The Sonoview® Full Digital Imaging Ultrasound Scanner represents a comprehensive diagnostic solution combining advanced digital imaging technology with intuitive PC-based operation. The 15" color LCD screen delivers exceptional image clarity with 256 gray scale levels and real-time zoom capabilities, enabling confident diagnostic interpretation across multiple clinical specialties.
With broadband multi-frequency probes, flexible scanning modes (B, 2B, B/M, M, 4B, ZOOM), and optional 3D imaging, the system accommodates diverse clinical workflows. Integrated measurement and calculation packages for obstetrics, gynecology, cardiology, urology, and small parts imaging streamline reporting and documentation. DICOM 3.0 compatibility ensures seamless integration with hospital information systems and PACS networks.
Key features & surgeon benefits
Image Quality
Superior Resolution & Clarity
- Full digital imaging technology with 256 gray scale levels
- Lateral resolution 2 mm, longitudinal resolution 1 mm
- 8 TGC adjustments for optimized depth penetration
- Advanced image processing: pre/post-processing, dynamic range, edge enhancement
- Pseudo-color display with 8 color modes
Workflow
Flexible Scanning & Acquisition
- Multiple scanning modes: B, 2B, B/M, M, 4B, ZOOM with real-time zoom
- Cine loop recording: 64–1024 frames (user-selectable)
- 4 electronic focus points with random combination
- 10 magnification ratios (1.5× to 6.0×)
- Optional 3D imaging for enhanced spatial assessment
Measurement & Reporting
Comprehensive Analysis Tools
- B-mode: distance, circumference, area, volume, angle, stenosis, histogram
- Specialty packages: OB (gestation age, fetal weight, AFI), GYN, cardiac (LV function), urology, small parts

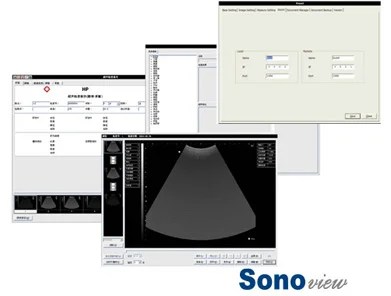

- Built-in workstation software with powerful information management
- 30 body markers and full-screen character editing
- DICOM 3.0 export for seamless PACS integration
Customization
Modular Probe & Accessory Options
- Standard 3.5 MHz electronic convex array probe included
- Optional probes: 7.5 MHz linear, 6.5 MHz trans-vaginal, 7.5 MHz rectal, 3.5 MHz micro-convex
- Optional R/W DVD-ROM and B/W laser printer
- Large local and USB storage for images, cine loops, and reports
- Compatible with laser and inkjet printers
Technical specifications
| Indications | General ultrasound, obstetrics, gynecology, cardiology, urology, vascular, small parts imaging |
|---|---|
| Display | 15" color LCD screen; 14" B/W SVGA progressive scanning monitor |
| Display depth | 240 mm |
| Resolution | Lateral 2 mm, longitudinal 1 mm |
| Gray scale | 256 levels |
| Scanning modes | B, 2B, B/M, M, 4B, ZOOM; real-time zoom; 3D (optional) |
| Main probe | 3.5 MHz electronic convex array (frequency conversion) |
| Probe frequencies | 5 segment multi-frequency conversion |
| Electronic focus | 4 focus points with random combination |
| TGC adjustments | 8 TGC channels |
| Cine loop | 64, 128, 256, 512, 1024 frames (user-selectable) |
| Magnification | 10 ratios: 1.5×, 2.0×, 2.5×, 3.0×, 3.5×, 4.0×, 4.5×, 5.0×, 5.5×, 6.0× |
| Image processing | Pre/post-processing, dynamic range, frame rate, line average, edge enhancement, B/W inversion, contrast, brightness, γ revision |
| Pseudo-color | 8 color modes |
| Probe connectors | 2 |
| Storage | Large capacity local and USB storage for images, cine loops, measurements, reports |
| Output terminals | VGA, PAL-D video output |
| Connectivity | DICOM 3.0 compatible; PACS-ready |
| Dimensions | 790 mm (L) × 660 mm (W) × 1070 mm (H) |
| Weight | Approximately 50 kg |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mainframe Unit | 15" color LCD screen with PC-based control system | 1 |
| Multi-frequency Convex Probe | 3.5 MHz electronic convex array with frequency conversion | 1 |
| Mobile Trolley | Wheeled stand for system mobility and positioning | 1 |
| Power Cable | Mains power connection | 1 |
| Cleaning Cloth | Probe and screen maintenance cloth | 1 |
Optional accessories & probes
| Accessory | Specification |
|---|---|
| 7.5 MHz High-frequency Linear Array Probe | For superficial structures and small parts imaging |
| 6.5 MHz Intra-cavity (Trans-vaginal) Probe | For gynecologic and obstetric applications |
| 7.5 MHz Rectal Probe | For endorectal imaging |
| 3.5 MHz Micro-convex Probe | For intercostal and limited-access scanning |
| R/W DVD-ROM Drive | For archival and data backup |
| B/W Laser Printer | For high-quality hardcopy image output |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and pricing. We provide comprehensive technical support and can arrange demonstrations at your facility.
Phone: +44 (7463) 676084
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsExcellent detail for musculoskeletal work
The image resolution resolves tendon fibrillar architecture and small effusions clearly, which makes it genuinely useful for guided injections. Freeze and measurement tools are responsive during a live scan.
Dr. Edward Ashworth, MD, FRCS (Orth)Verified buyerDec 4, 2024
Strong imaging, sensible workflow
Contrast and depth adjustment let me chase soft-tissue detail without much fiddling with presets. A capable scanner for a clinic doing regular ultrasound-guided procedures.
Dr. Yasmin Farah, MD, FAAOSJul 4, 2025
Related products
See all →
Meditech

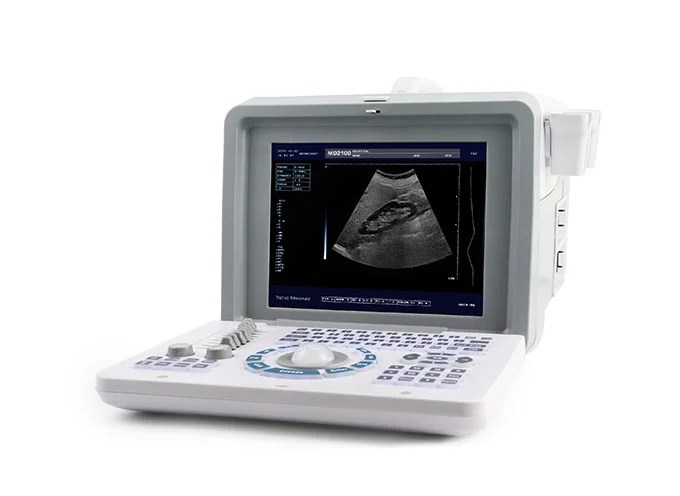

Dolphi® Pro Portable B/W Ultrasound Scanner
- Portable 2D B/W Ultrasound scanner with advanced transducer technology - 10 inch CRT Screen with clear image quality - Multiple imaging modes including B, B/B, 4B, B+M, and M - Comes with a standard multi-frequency convex probe and options for additional probes, printer, battery, and trolley
£2,950.00
Meditech

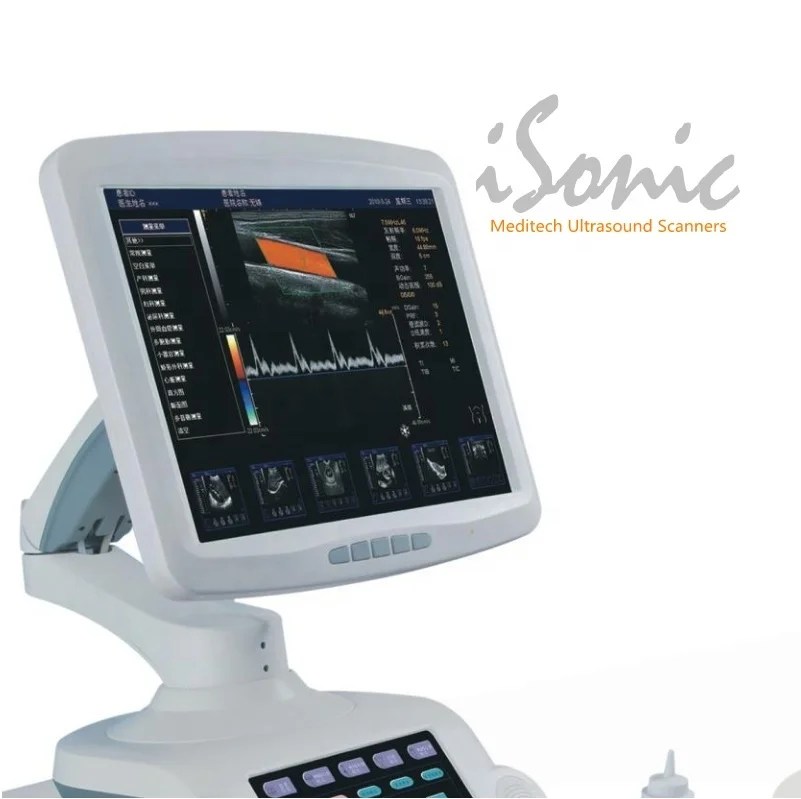

iSonic High Quality Images Color Ultrasound Scanner
- High quality color ultrasound scanner with 17" LCD screen - Features advanced imaging processing and optimization technologies - Offers various imaging modes and measurement specifications for obstetrics, gynecology, urology, and more - Includes mobile trolley, multi-frequency probes, and optional modules for enhanced functionality
£19,000.00
£17,490.00
Meditech

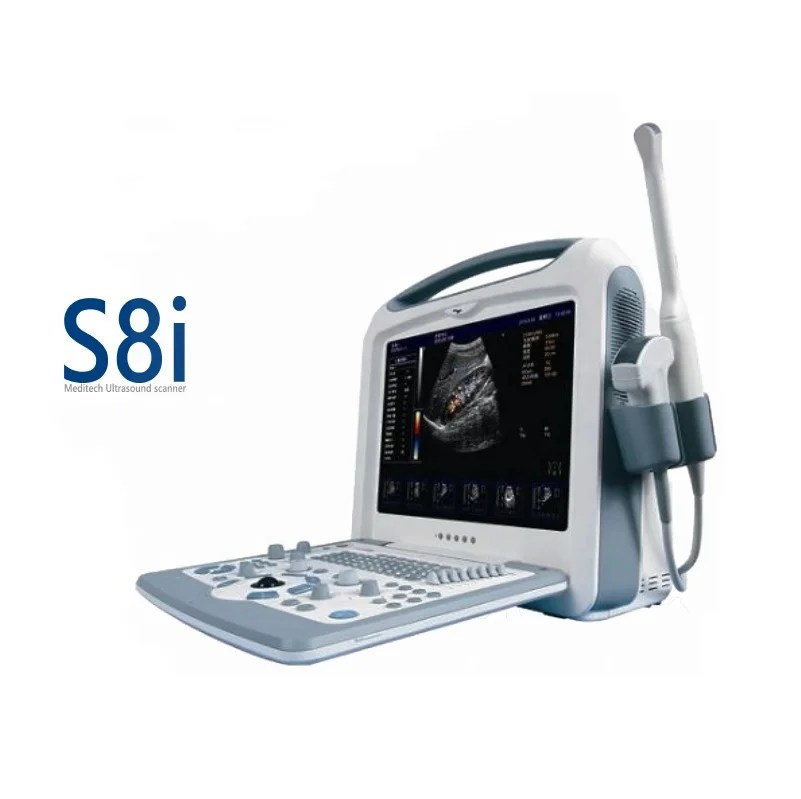

Medical Device S8i Color Portable Ultrasound Scanner
- Full-digital beam forming for clear imaging - Multiple display modes including B, BB, and PW - Extensive image processing options for accurate diagnoses - OB packages for obstetric measurements and fetal monitoring - Comes with multi frequency convex and linear probes - Optional modules for advanced imaging capabilities - Optional probes available for various applications
£8,500.00
£7,990.00
Orthopedic Drills

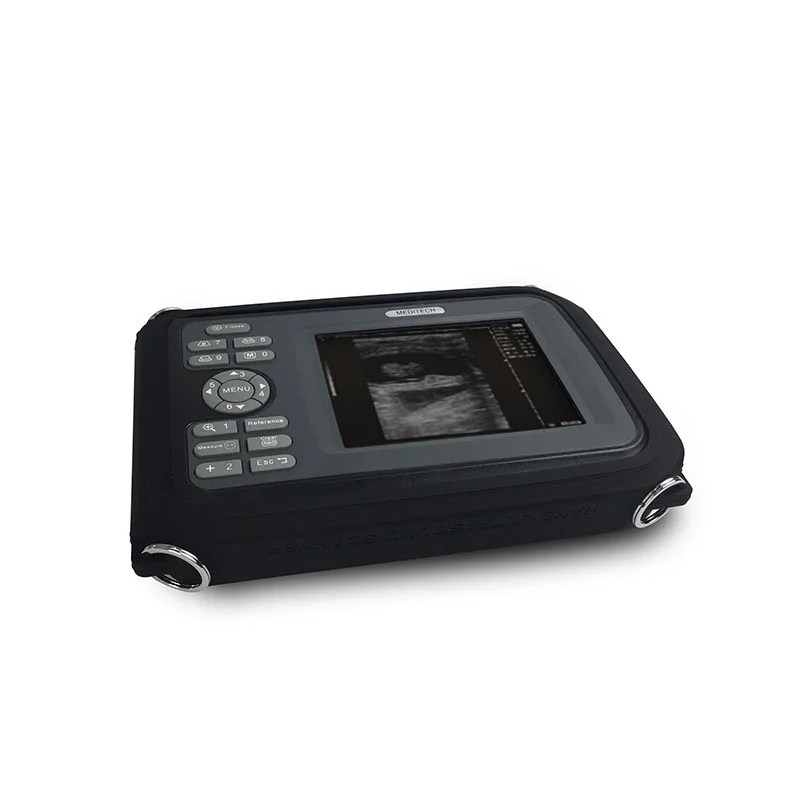

Medical Device Diagnostic Portable Digital Ultrasound Scanner SONO R
