Meditech

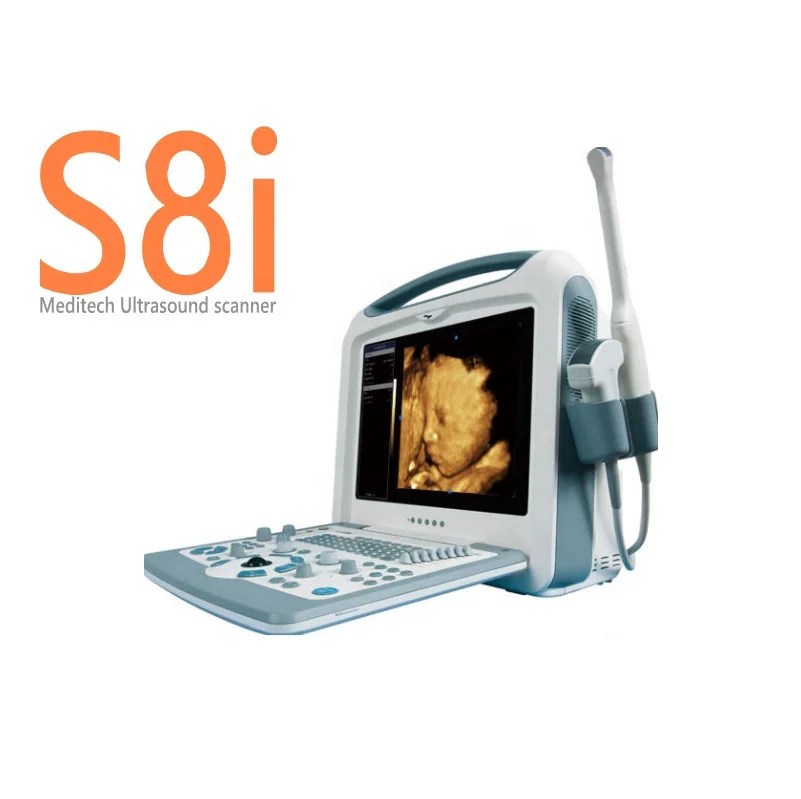

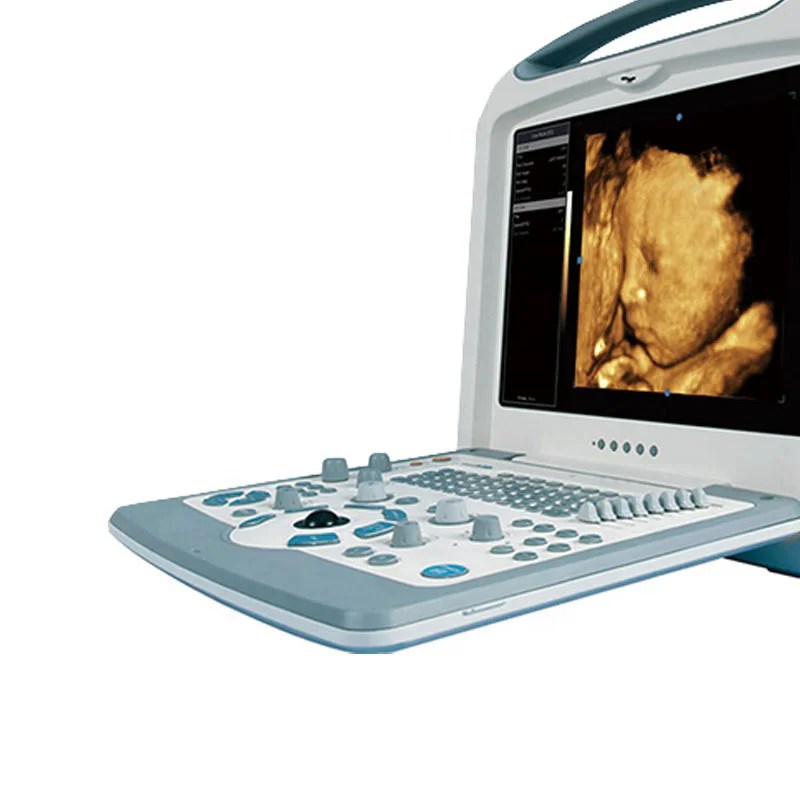

Medical Device S8i Color Portable Ultrasound Scanner
3.7(3 reviews)- Full-digital beam forming for clear imaging
- Multiple display modes including B, BB, and PW
- Extensive image processing options for accurate diagnoses
- OB packages for obstetric measurements and fetal monitoring
- Comes with multi frequency convex and linear probes
- Optional modules for advanced imaging capabilities
- Optional probes available for various applications
- SKU
- OD-00426
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Portable Ultrasound Imaging
Medical Device S8i Color Portable Ultrasound Scanner
Advanced full-digital beam forming ultrasound system with comprehensive imaging modes, extensive signal processing, and integrated obstetric packages. Delivers clinical-grade diagnostic imaging with multi-frequency probes and optional modular enhancements for specialized applications.
Ordering Ref.
On request
ConfigurationPortable Console System
MaterialMedical-grade electronics
ApplicationMulti-specialty diagnostic imaging
Extensive customization available via optional modules and probe configurations. OEM partnerships supported.
Clinical overview
The S8i Color Portable Ultrasound Scanner is a comprehensive diagnostic imaging platform engineered for clinicians requiring versatile, high-fidelity ultrasound across multiple specialties. Featuring full-digital beam forming architecture, the system delivers superior image quality with real-time dynamic focusing and advanced signal processing. The platform supports 13 distinct display modes—including B, M, PW, color flow mapping, and spectral Doppler—enabling detailed morphological and hemodynamic assessment.
Integrated obstetric packages provide automated measurement tables (EDD, BPD, CRL, FL, AC, HC, AFI) with fetal growth curves and physiological scoring. Optional modules extend capability to advanced 3D imaging, cardiac-specific Doppler analysis, and DICOM 3.0 connectivity. The modular architecture allows clinicians to configure the system precisely for their clinical workflow, with optional probes for transvaginal, cardiac, and interventional applications.
Key features & surgeon benefits
Imaging Capability
Advanced Display Modes
- 13 display modes including B, BB, 4B, BM, M, PW, duplex, triplex, and color flow
- Full-digital beam forming with dynamic aperture in all fields
- 256 gray-scale levels with ≥150 dB receiving signal dynamic range
- Real-time dynamic focusing and spectral processing
Signal Processing
Clinical-Grade Image Quality
- Space-time and dynamic filtering for artifact reduction
- Adjustable wall filter, baseline, and PRF for Doppler optimization
- RDA and DRA (receive and dynamic range adjustment)
- CFM processing with adjustable gain and sampling parameters
Obstetric Integration
Comprehensive OB Packages
- Automated EDD tables with GA calculation by LMP and BBT
- Fetal biometry, growth curves, and physiological scoring
- Uterine measurements including cervical length and endometrial thickness
- Integrated OB measurement and calculation reporting
Modularity
Expandable Architecture
- Optional CW Doppler and Free Xrosâ„¢ cardiac imaging module
- Smart3D module for volumetric imaging with 2D probes
- iScape View and DICOM 3.0 modules for advanced workflow
- Multiple probe options for specialized applications
Technical specifications
| Display Modes | B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D, duplex, triplex, part zoom, CFM, CPA |
|---|---|
| Signal Processing | Full-digital beam forming, dynamic filter, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range ≥150 dB, all digital real-time dynamic focusing, dynamic aperture in all fields |
| Image Conversion | Up/down conversion, left/right conversion |
| Doppler Adjustments | Sound output volume, wall filter, baseline, sampling frame, area, angle, spectrum sampling volume, spectrum sampling volume angle, PRF all adjustable |
| Image Processing | Gain control, TGC, PW Gain, CFM gain |
| Measurement Capability | B mode: distance, circumference, area, volume, ratio, angle, %stenosis, histogram; M mode: distance, time, velocity, heart rate |
| OB Packages | EDD table (GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI), GA and EDD by LMP, BBT GA and EDC, fetal physiological score, fetal growth curve, uterine measurements, OB reporting |
| Standard Probes | Multi-frequency convex probe, multi-frequency linear probe |
| Optional Modules | CW Doppler and Free Xrosâ„¢ Imaging (cardiac), Smart3D, iScape View, DICOM 3.0 |
| Optional Probes | Micro-convex array transvaginal, micro-convex, linear, intrarectal linear, phased array 2P2 (cardiac) |
| Optional Accessories | Footswitch (USB), biopsy guides for all probe types, mobile trolley |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Multi-frequency convex probe | Standard imaging probe for general and OB applications | 1 |
| Power cable | Mains power connection | 1 |
| Cleaning cloth | Probe and screen maintenance | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, optional modules, and delivery timelines. We provide comprehensive technical support and clinical training for all S8i installations.
Phone: +44 (7463) 676084
Email: [email protected]
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
3.7· 3 reviewsGood portability, clear colour Doppler
The colour flow is clear enough to check perfusion around a fracture site, and the portable form factor is genuinely useful at the bedside. Image quality holds up well for point-of-care musculoskeletal scanning.
Dr. Benedict Harlow, MD, FRCS (Orth)Verified buyerOct 15, 2024
Capable portable unit
Boots quickly and the greyscale is crisp for guiding joint aspirations. Battery endurance covers a ward round comfortably.
Dr. Anja Kowalski, MD, FAAOSJun 6, 2025
