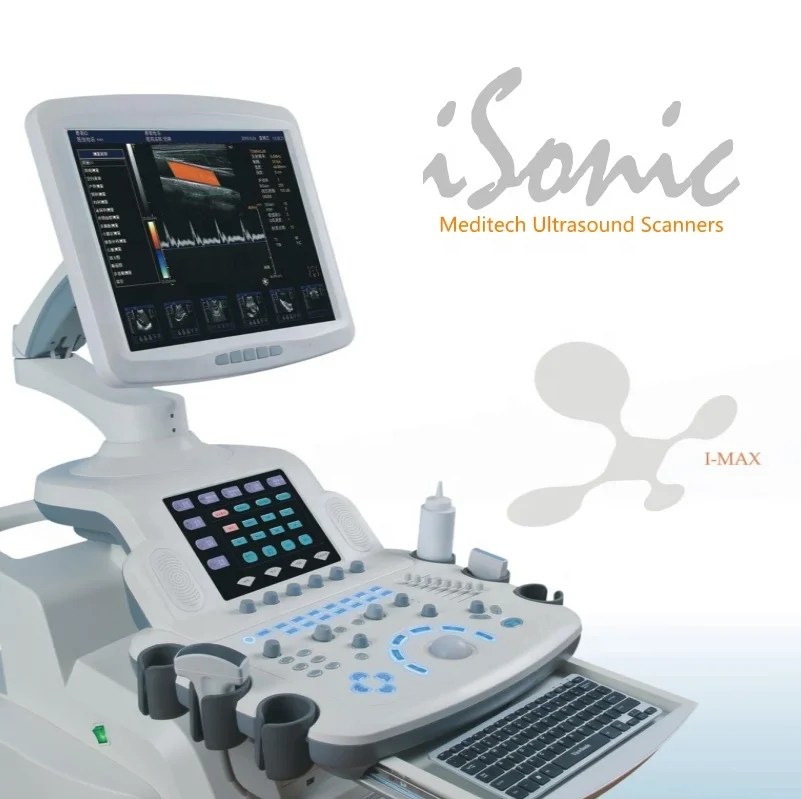

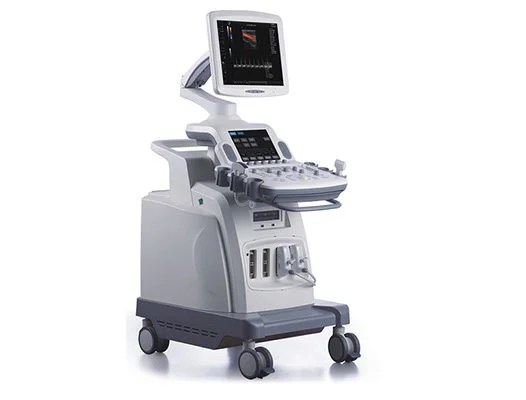

iSonic High Quality Images Color Ultrasound Scanner
- High quality color ultrasound scanner with 17" LCD screen
- Features advanced imaging processing and optimization technologies
- Offers various imaging modes and measurement specifications for obstetrics, gynecology, urology, and more
- Includes mobile trolley, multi-frequency probes, and optional modules for enhanced functionality
- SKU
- OD-00427
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
iSonic High Quality Images Color Ultrasound Scanner
Advanced 17" LCD color ultrasound system with comprehensive imaging processing and optimization technologies. Delivers exceptional diagnostic clarity across obstetrics, gynecology, urology, cardiology, and orthopedic applications. Includes mobile trolley, multi-frequency probes, and expandable modular architecture for specialized clinical workflows.
Clinical overview
The iSonic High Quality Images Color Ultrasound Scanner is a comprehensive diagnostic platform engineered for multi-specialty clinical environments. Featuring a large 17" high-brightness LCD display with 1024×768 resolution and wide viewing angles, the system delivers superior image clarity and diagnostic confidence. The integrated 10" touch-screen control interface provides intuitive navigation and rapid access to advanced imaging modes.
iSonic's proprietary wide-band multi-frequency imaging processing and optimization technologies—including compound enhancement, speckle reduction, multi-beam parallel processing, and tissue harmonic imaging—enable exceptional image quality across all clinical applications. The system supports comprehensive measurement specifications for obstetrical, gynecological, urological, andrological, orthopedic, vascular, cardiac, and small parts imaging, with dedicated reporting templates for each specialty. Expandable modular architecture allows integration of CW Doppler, Smart 3D, iScape View, and DICOM 3.0 capabilities as clinical needs evolve.
Key features & surgeon benefits
Advanced Imaging Processing
- Compound enhancement and speckle reduction for superior tissue visualization
- Multi-beam parallel processing technology for real-time optimization
- Tissue harmonic imaging for enhanced penetration and contrast resolution
- 256 grayscale levels with dynamic range up to 150 dB
Intuitive Multi-Specialty Operation
- Dual display system: 17" diagnostic LCD + 10" touch-screen control interface
- Configurable worksheets and programmable annotations for rapid exam setup
- Cine loop and frame averaging (up to 7 frames) for motion analysis
- Multiple imaging modes: B, M, Color, PW, Duplex/Triplex, 3D, 4D, Panoramic
Comprehensive Specialty Reporting
- Obstetrical: AFI, BPD/OFD, FL/AC, HC/AC, fetal weight estimation, gestational age, biophysical scoring
- Cardiac: Heart rate, blood flow rate, chamber dimensions, valve analysis, stenosis quantification
- Vascular: Vessel diameter, area stenosis, flow velocity, resistance indices
- Up to 27 distance measurements and 3 area measurements on-screen simultaneously
Modular Architecture
- Optional CW Doppler and Free Xros™ Imaging module for advanced cardiac applications
- Smart 3D module enables 3D imaging with standard 2D convex probes
- iScape View module for panoramic imaging and extended field-of-view
- DICOM 3.0 module for seamless EHR integration and network connectivity
Technical specifications
| Indications | Obstetrics, gynecology, urology, andrology, orthopedic, peripheral vascular, small parts, cardiac, multiple births |
|---|---|
| Display System | 17" LCD (1024×768, 230 cd/m², 800:1 contrast) + 10" touch-screen (800×600, 250 cd/m², DVI input) |
| Imaging Modes | B, Dual B, Quad B, M, Color, Dual Color, 2D/Color Compound, PW, Duplex/Triplex, CFM, PD, Directional PD, CD, Freehand 3D, 4D, Panoramic |
| B-Mode Specifications | 17 maps, max 4 focus points, 0–255 gain, 8 TGC sliders, 0–150 dB dynamic range, max 30 cm depth, 0 to −15 dB acoustic power, 256 grayscale levels, max 100 Hz frame rate, 512 line density |
| Color Mode | 6 color maps, 5-step Doppler steering (±10°), PRF 1.8–13.2 kHz, wall filter 0–3, max 256 lines, persistence/frame average 0–7 |
| Transducers Included | Convex array (3.5 MHz central, 2.0–5.5 MHz range, 0.516 mm pitch, 60 mm radius); Linear array (7.5 MHz central, 6.0–12.0 MHz range, 0.352 mm pitch) |
| Optional Transducers | 4D volume probe (4.0 MHz), micro-convex transvaginal, micro-convex, linear, intrarectal linear, phased array 2P2 (cardiac) |
| Storage & Connectivity | 500 GB hard disk, DVD-ROM, USB, RS232, DICOM 3.0, Intranet, parallel printing port |
| Computer | Intel E4300 processor (minimum), ≥500 GB patient data storage |
| Languages | English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese |
| Sterilisation | Autoclave, low temperature plasma disinfection, ethylene oxide gas disinfection |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mobile Trolley | Ergonomic mobile platform with integrated cable management | 1 |
| Multi-Frequency Convex Probe | 3.5 MHz central frequency, 2.0–5.5 MHz range, 195 elements, ZIP260 connector | 1 |
| Multi-Frequency Linear Probe | 7.5 MHz central frequency, 6.0–12.0 MHz range, 195 elements, ZIP260 connector | 1 |
| Power Cable | Standard medical-grade power supply cable | 1 |
| Cleaning Cloth | Microfiber cleaning cloth for display and probe maintenance | 1 |
Optional modules & accessories
| Category | Item |
|---|---|
| Imaging Modules | CW Doppler and Free Xros™ Imaging module (cardiac applications) |
| Imaging Modules | Smart 3D module (3D imaging with standard 2D convex probe) |
| Imaging Modules | iScape View module (panoramic imaging) |
| Imaging Modules | DICOM 3.0 module (EHR integration) |
| Transducers | Micro-convex array transvaginal probe |
| Transducers | Micro-convex probe |
| Transducers | Linear probe |
| Transducers | Intrarectal linear probe |
| Transducers | Phased array probe 2P2 (cardiac applications) |
| Transducers | 4D volume probe (4.0 MHz central frequency) |
| Accessories | Footswitch (USB port) |
| Biopsy Guides | Biopsy guide for convex probe |
| Biopsy Guides | Biopsy guide for micro-convex probe |
| Biopsy Guides | Biopsy guide for linear probe |
| Biopsy Guides | Biopsy guide for micro-convex transvaginal probe |
| Biopsy Guides | Biopsy guide for intrarectal linear probe |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, optional modules, probe selection, and delivery timelines. We provide comprehensive technical support and clinical training to maximize diagnostic capability and operational efficiency.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

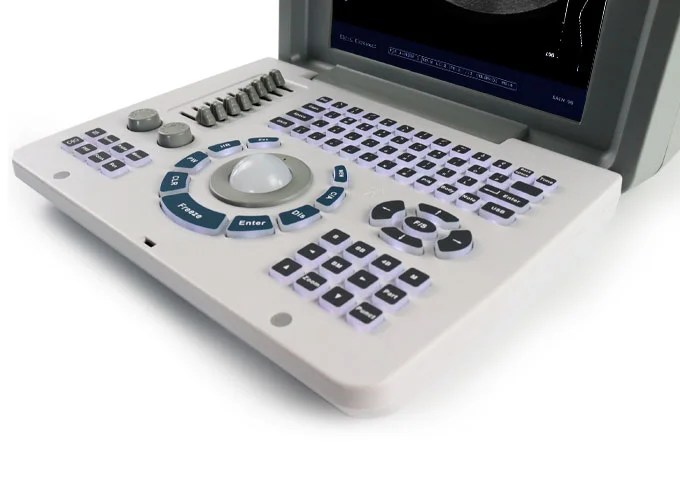

Dolphi® Pro Portable B/W Ultrasound Scanner
- Portable 2D B/W Ultrasound scanner with advanced transducer technology - 10 inch CRT Screen with clear image quality - Multiple imaging modes including B, B/B, 4B, B+M, and M - Comes with a standard multi-frequency convex probe and options for additional probes, printer, battery, and trolley

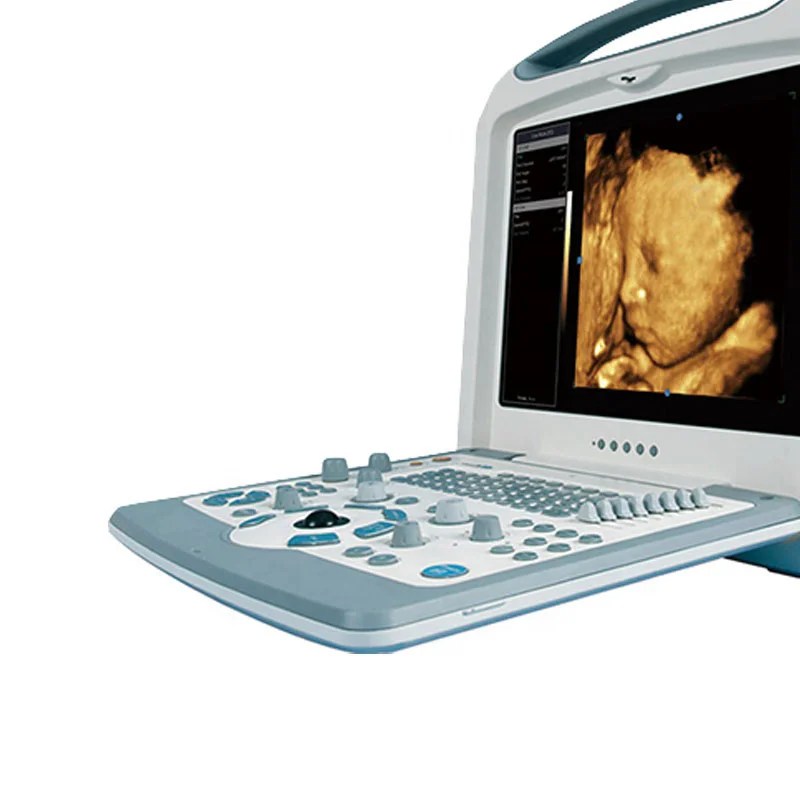

Medical Device S8i Color Portable Ultrasound Scanner
