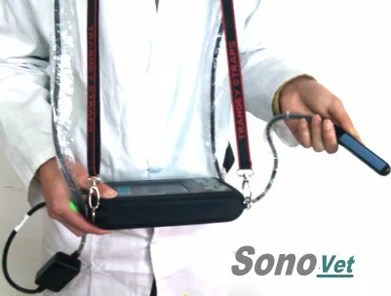

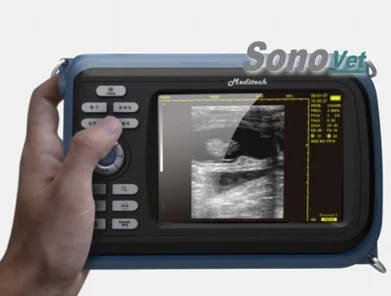

Sonovet Palm Veterinary Ultrasound Scanner with Rectal Probe
- High-quality veterinary ultrasound scanner with rectal probe
- Advanced image processing technology for clear and precise imaging
- Multiple probes available for versatile scanning options
- Portable with a lightweight design, suitable for on-the-go veterinary professionals
- SKU
- OD-00435
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Sonovet Palm Veterinary Ultrasound Scanner with Rectal Probe
Portable, high-resolution veterinary ultrasound system featuring advanced digital beam-forming technology and multiple probe options. Designed for equine, small animal, and reproductive imaging with real-time image processing and comprehensive measurement capabilities.
Clinical overview
The Sonovet Palm is a lightweight, portable veterinary ultrasound system engineered for equine, small animal, and reproductive imaging. Featuring full digital beam-forming technology and advanced image processing (DFS, DRF, RDA), it delivers clear, precise real-time imaging with 256 levels of gray scale resolution. The system supports multiple scanning methods—convex, micro-convex, linear, and rectal—making it versatile for diverse clinical applications.
With 256 frames of cine-memory, 64 permanent image storage, and automatic probe identification, the Sonovet Palm streamlines workflow while maintaining diagnostic accuracy. Comprehensive measurement tools for obstetric, cardiac, and general imaging, combined with USB connectivity for image transfer and reporting, make this system ideal for mobile veterinary practices and clinical facilities.
Key features & surgeon benefits
Advanced Digital Processing
- Full digital beam-forming technology for superior image clarity
- 256 levels gray scale with gamma correction and histogram adjustment
- Real-time image magnification (×1.0 to ×2.0)
- Multiple display modes: B, B+B, 4B, B+M, M
Portable & User-Friendly
- Lightweight design (0.8 kg) for on-the-go veterinary professionals
- Automatic probe identification and 4 selectable focusing combinations
- USB 2.0 and mouse interface for seamless operation
- ≥2 hour operating time on battery power
Comprehensive Clinical Tools
- 16 obstetric measurement tables with GA and fetal weight calculation
- Cardiac measurements: heart rate, EF rate
- 15 body mark types with customizable calipers
- Automatic clinic report generation with full annotation
Multi-Probe System
- Standard L60/6.5 MHz rectal linear probe included
- Optional convex (3.5 MHz), micro-convex (5.0 MHz), and linear (7.5 MHz) probes
- Multi-frequency capability on each probe for flexible imaging
- Display depth ≥220 mm with multi-step adjustment
Technical specifications
| Display | 5.5 inch TFT screen (7 inch option available) |
|---|---|
| Gray Scale | 256 levels |
| Image Processing | DFS, DRF, RDA, VGA/DSC with post-processing; gamma correction and histogram |
| Cine Memory | ≥400 frames |
| Permanent Storage | 128 frames |
| Scanning Methods | Convex, micro-convex, linear, rectal |
| Display Modes | B, B+B, 4B, B+M, M |
| Image Magnification | ×1.0, ×1.2, ×1.5, ×2.0 |
| Display Depth | ≥220 mm (multi-step adjustable) |
| Standard Probes | L60/6.5 MHz rectal linear (multi-frequency: 6.5, 7.5 MHz) |
| Net Weight | 0.8 kg |
| Operating Time | ≥2 hours |
| Connectivity | USB 2.0, PAL-D video output, mouse interface |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Main Unit | Sonovet Palm ultrasound scanner with 5.5 inch TFT display | 1 |
| Rectal Probe | L60/6.5 MHz linear rectal probe (multi-frequency: 6.5, 7.5 MHz) | 1 |
| USB Cable | For image transfer and PC connectivity | 1 |
| Mouse | For system control and navigation | 1 |
| Power Supply | Battery and charger | 1 |
Optional probes & accessories
| Item | Frequency / Specification |
|---|---|
| Convex Probe | R40/3.5 MHz (multi-frequency: 3.5, 5.0 MHz) |
| Micro-Convex Probe | R20/5.0 MHz (multi-frequency: 4.5, 5.0, 5.5 MHz) |
| Linear Probe | L40/7.5 MHz |
| Transvaginal Probe | 6.5 MHz (multi-frequency: 6.5, 7.5 MHz) |
| 7 Inch Display | Optional upgrade from standard 5.5 inch |
| Car Lighter Adapter | For mobile veterinary use |
| Video Printer | For hardcopy image output |
| PC Software | For image transfer and archival |
| Ultrasound Goggles | Optional accessory |
Get in touch for pricing & availability
Contact our sales team to discuss system configuration, probe options, and delivery timelines. We provide comprehensive support for veterinary practices of all sizes.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
