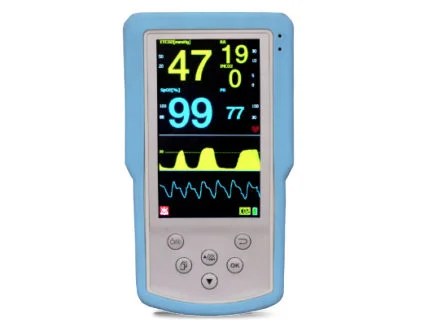

CapnoVet Hand Held CO2 Monitor
- Handheld CO2 monitor for monitoring respiratory status during CPR
- Assists in determining intubation/exubation needs and ET tube placement verification
- Alerts for accidental extubation and verifies ventilation during transport
- Features SpO2, pulse rate, ETCO2, and respiratory rate monitoring capabilities
- SKU
- OD-00433
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
CapnoVet Hand Held CO2 Monitor
Portable capnography and pulse oximetry monitor for real-time respiratory assessment during CPR, intubation verification, and emergency transport. Combines ETCO2, SpO2, pulse rate, and respiratory rate monitoring in a compact, clinician-friendly handheld device.
Clinical overview
The CapnoVet Hand Held CO2 Monitor is a portable, multi-parameter respiratory monitoring device designed for emergency medicine, critical care, and transport settings. It provides real-time capnography (ETCO2) and pulse oximetry (SpO2) measurements, enabling clinicians to assess respiratory status during cardiopulmonary resuscitation, verify endotracheal tube placement, and detect accidental extubation. The device combines NDIR dual-wavelength CO2 sensing with reflectance pulse oximetry, delivering rapid, accurate measurements within seconds of initialization.
With 255 hours of historical data storage and USB connectivity, the CapnoVet integrates seamlessly into clinical workflows, supporting both point-of-care assessment and retrospective data analysis. The included professional analysis software enables trend visualization, report generation, and comprehensive respiratory status documentation—essential for quality assurance, training, and clinical research.
Key features & surgeon benefits
Multi-parameter assessment
- Simultaneous ETCO2, SpO2, pulse rate, and respiratory rate
- 5.0-inch colorful TFT LCD display with real-time waveform
- Dual-color LED alarm indicator (yellow/red) with audible alerts
Rapid deployment & verification
- 5-second initialization time for CO2 waveform display
- Apnea alarm (10–60 s adjustable) for accidental extubation detection
- Portable handheld design for bedside, transport, and field use
Comprehensive analysis & documentation
- 255-hour historical data replay via USB to PC
- Professional analysis software with trend tables and graphing
- Unlimited patient data storage and printer-compatible reports
Customizable sensor options
- SpO2 module selectable (SpO2 only or SpO2+CO2 combination)
- Multiple SpO2 sensor variants: adult hard/soft, pediatric, neonatal, finger clip
- External cable and multi-site Y-type configurations available
Technical specifications
| Indications | CPR monitoring, intubation/extubation assessment, ET tube placement verification, accidental extubation detection, ventilation verification during transport, sleep condition analysis |
|---|---|
| CO2 Range | 0–99 mmHg (0–13%); Respiratory rate: 2–150 bpm |
| SpO2 Range | 0–100%; Pulse rate: 35–254 BPM |
| CO2 Resolution | 0.1 mmHg (0–40 mmHg); 0.25 mmHg (40–99 mmHg); Respiratory rate: 1 bpm |
| CO2 Accuracy | ±2 mmHg (0–40 mmHg); ±5% of reading (40–99 mmHg); Respiratory rate: ±1 bpm |
| SpO2 Accuracy | ±2% (70–100%); Pulse rate: ±2 or ±2 BPM |
| CO2 Sampling | 50 mL/min (±10 mL/min); NDIR single beam, dual wavelength, no moving parts |
| Display | 5.0-inch colorful TFT LCD with real-time waveform and trend data |
| Battery | 4× rechargeable lithium (3.7 V, 2200 mAh each); 10-hour runtime; 4-hour recharge time |
| Interfaces | 12 VDC power socket, Mini USB for data export and charging |
| Data Storage | 255 hours historical data; USB export to PC for analysis |
| Apnea Alarm | 10–60 seconds adjustable |
| Sterilisation | As applicable |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| CO2 Sample Line | Standard capnography sampling line | 1 |
| Nasal Tube | Nasal cannula for CO2 sampling | 1 |
| Power Adapter | 12 VDC power supply and charging adapter | 1 |
| Water-trap Column | Condensation trap for sample line | 1 |
| Airway Adapter | Adapter for intubated patients | 1 |
Optional accessories
| Accessory | Description |
|---|---|
| SpO2 Cable (Adult hard shell sensor) | Reusable finger sensor for adult patients |
| SpO2 Cable (Adult soft shell sensor) | Soft, flexible sensor for adult patients |
| SpO2 Cable (Neonatal soft sensor) | Specialized sensor for neonatal applications |
| SpO2 Cable (Pediatric hard shell sensor) | Reusable sensor for pediatric patients |
| SpO2 Cable (Pediatric soft shell sensor) | Soft sensor for pediatric patients |
| SpO2 Cable (Child finger clip) | Finger clip design for children |
| SpO2 Cable (Multi-site Y type) | Dual-site measurement capability |
| SpO2 External Cable | Extended cable for remote sensor placement |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss clinical requirements, or arrange a product demonstration. We provide rapid delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →
MD910 Veterinary Syringe Pump
- The MD910 Veterinary Syringe Pump features audible and visual alarms for various alerts such as occlusion, low battery, and end of infusion - It is compatible with syringes of any brand ranging from 10ml to 60ml, offering flexibility in usage - With three work modes available, including Rate mode, Time Volume mode, and Dosage Weight mode, it provides versatile options for medical professionals - The pump also offers Purge and Bolus functions, KVO automatic opening feature, and the ability to stack multiple pumps for different solutions

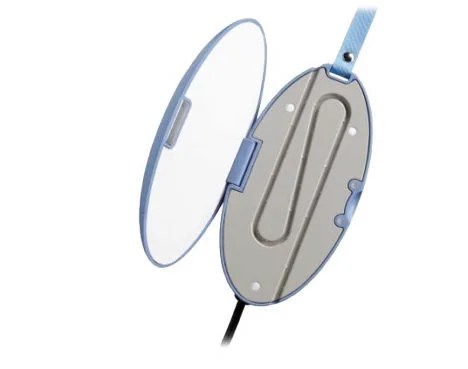

MD-T1 Veterinary Fluid Blood Warmer
- Lightweight and portable veterinary fluid warmer for use with standard fluids, blood, and TPN fluids - Features special hooks to accommodate thinner tubing sets - Fast and easy setup with auto start-up on main power - Helps maintain body temperature during anesthesia to prevent risks like shock, heart problems, and hypothermia

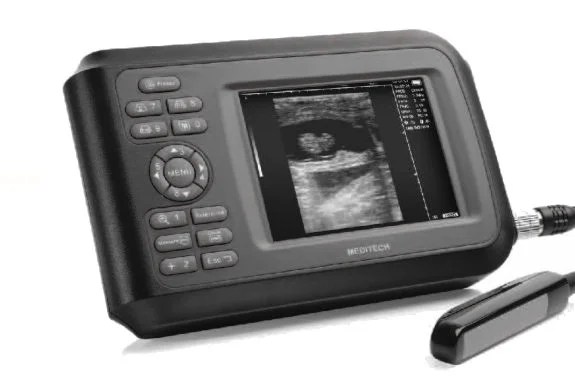

Sonovet Palm Veterinary Ultrasound Scanner with Rectal Probe
- High-quality veterinary ultrasound scanner with rectal probe - Advanced image processing technology for clear and precise imaging - Multiple probes available for versatile scanning options - Portable with a lightweight design, suitable for on-the-go veterinary professionals

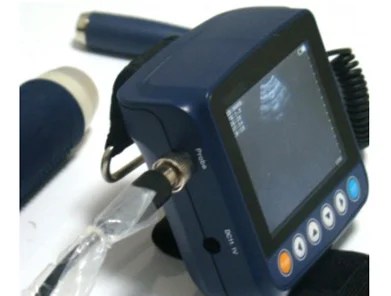

MiniScan Veterinary Mini Ultrasound Scanner Designed For Small And Large Animal Pregnancy
- MiniScan Veterinary Mini Ultrasound Scanner for small and large animal pregnancy - Multi-frequency waterproof ultrasound probe - Portable with rechargeable lithium ion battery pack - Comes with a carrying case and wrist bandage for convenience - Designed specifically for fertility and pregnancy scanning of horses, cattle, sheep, deer, and goats

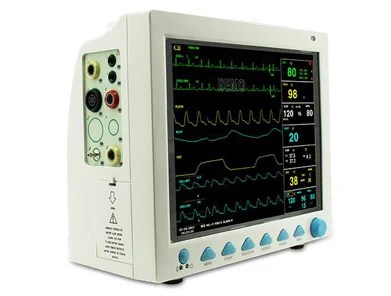

MD9000VET Veterinary 12.1 Inch Color TFT Patient Monitor, 7 Channels ECG (Copy)
- High resolution 12.1” color TFT display - Lightweight and portable design for easy use - Features ECG, SpO2, NIBP, RESP, and 2-TEMP monitoring capabilities - Suitable for adult, pediatric, and neonatal patients
MD9000VET Veterinary 12.1 Inch Color TFT Patient Monitor, 7 Channels ECG
- MD9000VET Veterinary 12.1 Inch Color TFT Patient Monitor - Features professional veterinary software - Monitors ECG, SpO2, NIBP, RESP, and 2-TEMP - Compact and portable design with built-in rechargeable lithium battery - Displays ECG waveforms of 7-leads on the same screen

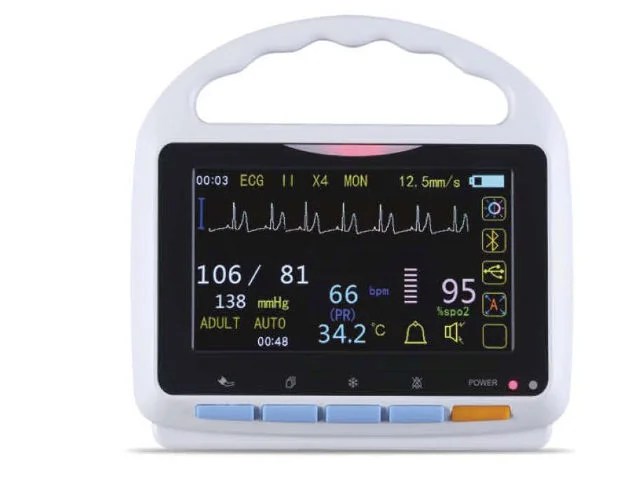

MD905 Veterinary Touch Screen Patient Monitor, 5.0 inch Color TFT Screen
