Small Fragment Instrument Set
- Complete set of small fragment instruments for orthopedic procedures
- Includes drill guides, drill bits, elevators, taps, reamers, countersink, and forceps
- Comes with a depth gauge for accurate measurements
- All instruments conveniently organized in an aluminium box
- SKU
- 4200-01
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Small Fragment Instrument Set
Complete set of small fragment instruments for orthopedic trauma procedures. Includes drill guides, drill bits, elevators, taps, reamers, countersink, and reduction forceps—all organized in a durable aluminium box with depth gauge for precise measurements.
Clinical overview
The Small Fragment Instrument Set is a comprehensive, ready-to-use solution for trauma surgeons and orthopedic specialists performing small fragment fixation procedures. This complete kit combines all essential instruments—from initial drilling and tapping through to final reduction and fixation—in a single, organized aluminium case. The set supports both cortical and cancellous bone techniques, making it ideal for complex fracture management in hand, wrist, and small bone trauma.
Each instrument is precision-manufactured from medical-grade stainless steel and engineered for durability and ease of use. The integrated depth gauge (0–60 mm) ensures accurate screw placement, while the variety of drill guides, reamers, and reduction forceps provides surgeons with the flexibility needed for diverse clinical scenarios. Sterilizable and field-proven, this set reduces operative time and improves workflow efficiency in the operating room.
Key features & surgeon benefits
Complete surgical pathway
- Drill guides for neutral and load positioning
- Multiple drill bit sizes (Φ2.5, Φ3.2 mm)
- Cortical and cancellous taps (3.5, 4.0 mm)
- Hollow reamer and countersink for optimal screw seating
Optimized OR efficiency
- All instruments pre-organized in aluminium case
- Integrated depth gauge for precise measurements
- Self-centering and reduction forceps for stable bone holding
- Minimal setup time; ready-to-use configuration
Cost-effective solution
- Single investment covers multiple procedure types
- Durable stainless steel construction minimizes replacement costs
- Reusable instruments reduce per-case consumable expenses
- Competitive pricing with 2-year manufacturer warranty
Flexible configurations
- Available as complete 20-piece set or custom subsets
- OEM branding and custom packaging options
- Additional instruments can be sourced individually
- Sterilization and case modifications on request
Technical specifications
| Indications | Small fragment fixation, trauma reduction, cortical and cancellous bone procedures, hand and wrist trauma |
|---|---|
| Sizes / range | Φ2.5, Φ3.2, Φ3.5, Φ4.0, Φ6.0 mm; depth gauge 0–60 mm |
| Material | Medical-grade stainless steel (ISO 5832-1); aluminium case |
| Sterilisation | Steam sterilizable; supplied non-sterile |
| Packaging | Aluminium instrument case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition

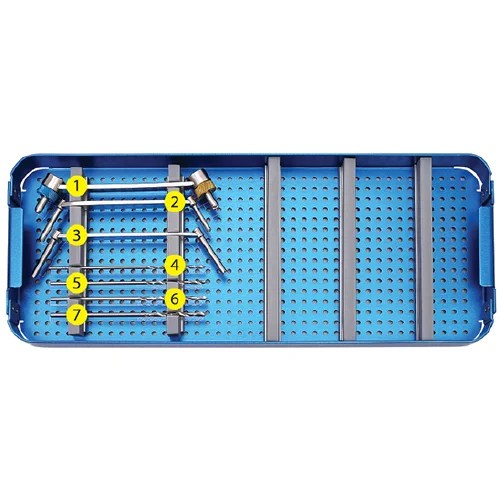

| Item | Description | Qty |
|---|---|---|
| 1 | Neutral and Load Drill Guide Φ2.5 | 1 |
| 2 | Drill & Tap Guider (Φ2.5/Φ3.5) | 1 |
| 3 | Drill & Tap Guider (Φ3.5/Φ4.0) | 1 |
| 4 | Drill Bit (Φ2.5×115 mm) | 1 |
| 5 | Drill Bit (Φ2.5×115 mm) | 1 |
| 6 | Drill Bit (Φ3.2×115 mm) | 1 |
| 7 | Drill Bit (Φ3.2×115 mm) | 1 |
| 8 | Periosteal Elevator 6 mm | 1 |
| 9 | Tap Cancellous 4.0 mm | 1 |
| 10 | Hollow Reamer Φ6.0 | 1 |
| 11 | Countersink | 1 |
| 12 | Extraction Screw Hexagonal 2.5 mm Conical | 1 |
| 13 | Periosteal Elevator 12 mm | 1 |
| 14 | Depth Gauge (0–60 mm) | 1 |
| 15 | Tap Cortex 3.5 mm | 1 |
| 16 | Extraction Screw Hexagonal 2.5 mm Conical | 1 |
| 17 | Self-centering Bone Holding Forcep (190 mm) | 2 |
| 18 | Sharp Reduction Forcep (190 mm) | 1 |
| 19 | Oblique Reduction Forcep (170 mm) | 1 |
| 20 | Bending Iron | 1 |
| 21 | Aluminium Box | 1 |
Get in touch for pricing & availability
Request a quote or discuss your specific surgical requirements with our clinical team. We offer flexible configurations, OEM options, and rapid delivery to UK and international locations.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Frequently bought together
Related products
See all →

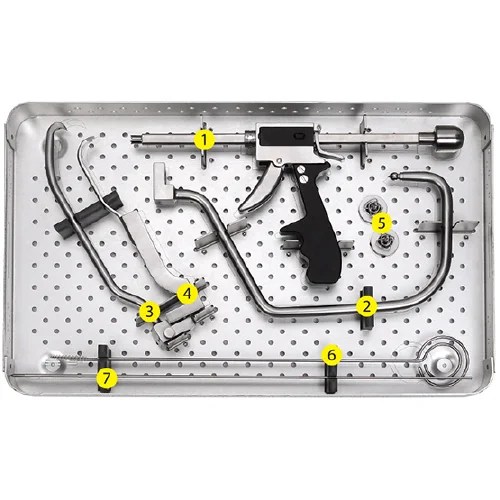

Collinear Reduction Clamp Instrument Set
- Complete Collinear Reduction Clamp Instrument Set - Includes handpiece, various arm sizes, protective sleeve, clean pins, and brushes - Comes with threaded and regular K-wires for surgical precision - Conveniently stored in an aluminum box for easy access and organization
Surgical Screw Removal Instrument Set, Universal Orthopedic Screw Extraction
- Premium quality surgical instrument set designed for orthopedic screw removal - Compatible with all brands for extracting various screw sizes from bones and plates - Includes a wide range of hollow reamers, extraction bolts, screwdrivers, pliers, and other essential tools - Ideal for surgeons and medical professionals performing orthopedic surgeries

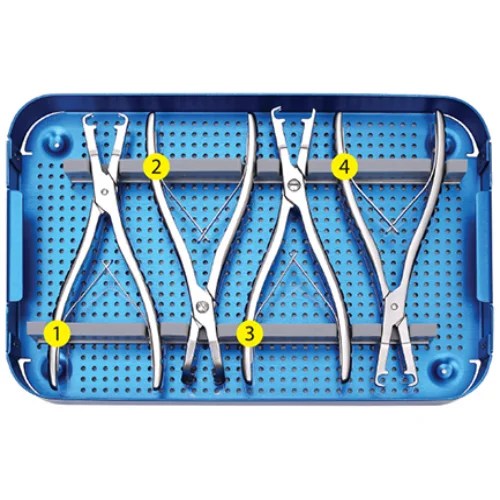

Rib Plate Instrument Set
- Complete set of instruments for rib plate fixation surgery - Includes reduction forceps of different sizes and designs - Comes with periosteal elevators and a rib plate cutter - Also includes a plate insert forceps and an aluminium box for storage

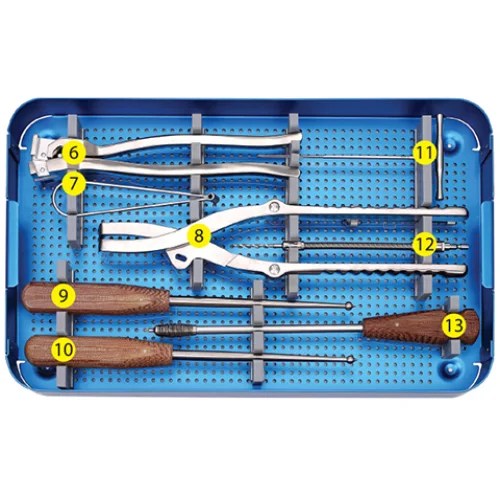

Pelvic Reconstruction Plate Instrument Set
- Complete instrument set for pelvic reconstruction procedures - Includes a variety of forceps, benders, drill guides, spikes, taps, drill bits, screwdriver, and more - High-quality stainless steel tools for durability and precision - Designed for ease of use and efficiency in pelvic surgery

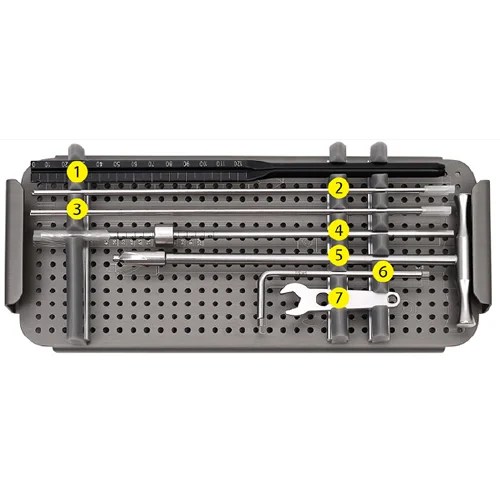

6.5mm Cannulated Screw Instrument Set
- Complete set of instruments for 6.5mm cannulated screw placement - Includes depth gauge, threaded guider wires, drill bits, countersinks, and screwdrivers - Features wrench for adjustable wire guider and cleaning stylet - Comes in a durable aluminum box for easy storage and transportation

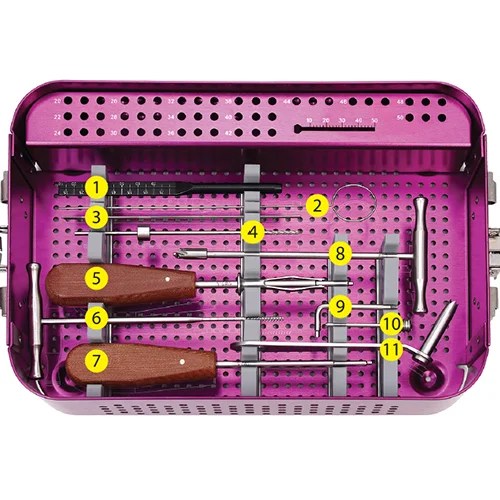

4.0mm Cannulated Screw Instrument Set
- Complete instrument set for 4.0mm cannulated screw procedures - Includes depth gauge, cleaning stylet, threaded guider wire, and cannulated drill bit - Also comes with screwdriver, tap, countersink, hex key, and drill sleeve - Conveniently organized in an aluminum box for easy storage and transport

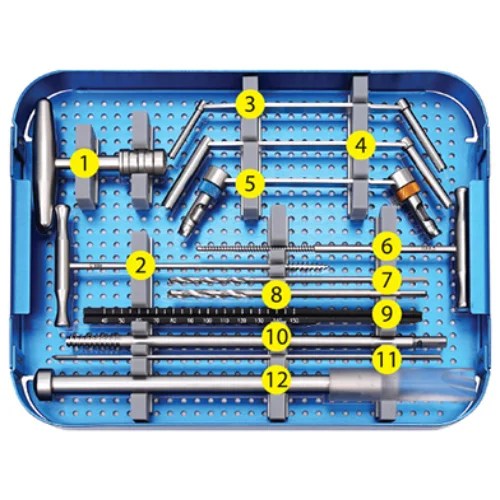

DHS & DCS Plate Instrument Set
