Orthopromed
Large Fragment Instrument Set
3.5(2 reviews)- Complete set of instruments for large fragment orthopedic surgeries
- Includes drill guides, drill bits, depth gauge, forceps, elevators, screwdriver, retractor, countersink, reamers, taps, bending iron, and more
- Comes in a convenient aluminum box for easy storage and portability
- Ideal for precise and efficient bone surgeries
- SKU
- 4200-02
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Instrument Sets for Trauma
Large Fragment Instrument Set
Complete surgical instrumentation for large fragment orthopedic procedures. This comprehensive set includes drill guides, drill bits, depth gauges, reduction forceps, elevators, screwdrivers, reamers, taps, and specialized bone handling instruments—all organized in a durable aluminum case for efficient OR workflow and portability.
Ordering Ref.
4200-02
Configuration20-piece set
MaterialStainless steel, silicon handles
ApplicationLarge fragment trauma fixation
Custom configurations and OEM branding available upon request. All instruments supplied sterile and ready for use.
Clinical overview
The Large Fragment Instrument Set is purpose-designed for open reduction and internal fixation (ORIF) procedures involving large bone fragments. This comprehensive kit provides surgeons with all essential instruments required for accurate drilling, tapping, reduction, and fixation in trauma and orthopedic surgery. The set combines precision-engineered drill guides and bits with robust reduction forceps and bone-holding instruments, enabling efficient and reliable surgical outcomes.
Each instrument is manufactured from medical-grade stainless steel with ergonomic handles for extended operative use. The complete set is supplied in a protective aluminum case, facilitating sterile storage, transport, and inventory management in the operating room.
Key features & surgeon benefits
Comprehensive Coverage
Complete surgical workflow
- Neutral and load drill guides for precise hole placement
- Multiple drill bits and taps for cortical and cancellous bone
- Specialized reduction forceps for fragment manipulation
- Depth gauges and countersinks for accurate screw placement
Workflow Efficiency
Optimized OR integration
- All instruments organized in a single aluminum case
- Rapid setup and minimal instrument handling time
- Ergonomic handles reduce surgeon fatigue during prolonged procedures
- Self-centering bone-holding forceps improve stability and control
Precision & Reliability
Surgical accuracy
- Precision-engineered drill guides ensure accurate hole placement
- Hollow reamers and extraction screws for efficient bone preparation
- Depth gauge (0–90 mm) enables accurate screw length determination
- Bending iron for plate contouring and adjustment
Customisation
Flexible solutions
- Available in standard or custom configurations
- OEM branding and packaging options
- Instrument selection can be tailored to specific surgical protocols
- Compatible with standard orthopedic power tools and accessories
Technical specifications
| Indications | Large fragment fixation, ORIF, trauma surgery, bone fracture reduction |
|---|---|
| Sizes / range | Drill guides Φ3.2–Φ6.5 mm; drill bits Φ3.2–Φ4.5 × 115 mm; depth gauge 0–90 mm |
| Material | Medical-grade stainless steel; silicon handles; aluminum storage case |
| Sterilisation | Autoclavable (steam sterilization, 121°C, 15 min at 2.1 bar) |
| Packaging | Protective aluminum case with foam insert |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|

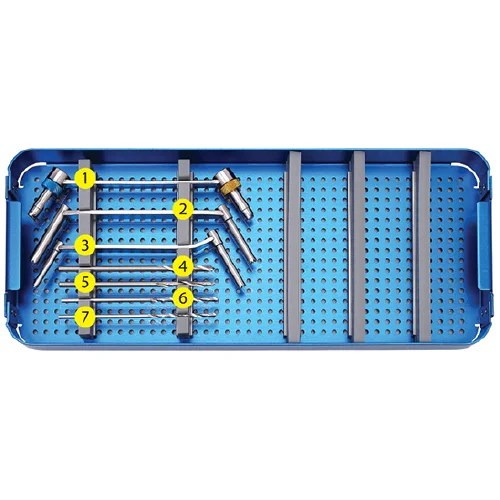

| 1 | Neutral and Load Drill Guide Φ3.2 | 1 |
| 2 | Drill & Tap Guider (Φ4.5/Φ6.5) | 1 |
| 3 | Drill & Tap Guider (Φ3.2/Φ4.5) | 1 |
| 4 | Drill Bit (Φ4.5 × 115 mm) | 1 |
| 5 | Drill Bit (Φ4.5 × 115 mm) | 1 |
| 6 | Drill Bit (Φ3.2 × 115 mm) | 1 |
| 7 | Drill Bit (Φ3.2 × 115 mm) | 1 |

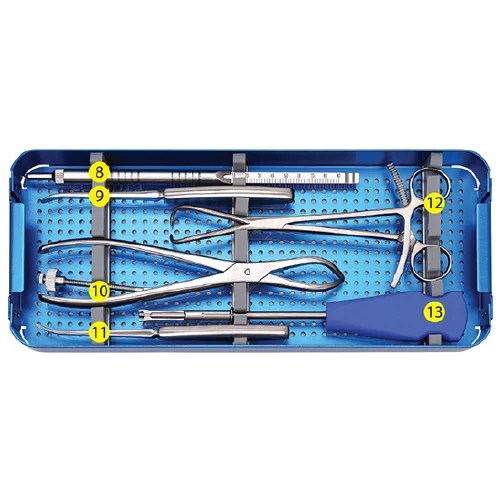

| 8 | Depth Gauge (0–90 mm) | 1 |
| 9 | Periosteal Elevator 15 mm | 1 |
| 10 | Oblique Reduction Forcep (230 mm) | 1 |
| 11 | Periosteal Elevator 8 mm | 1 |
| 12 | Sharp Reduction Forcep (200 mm) | 1 |
| 13 | Silicon Handle Screwdriver Hexagonal 3.5 mm | 1 |

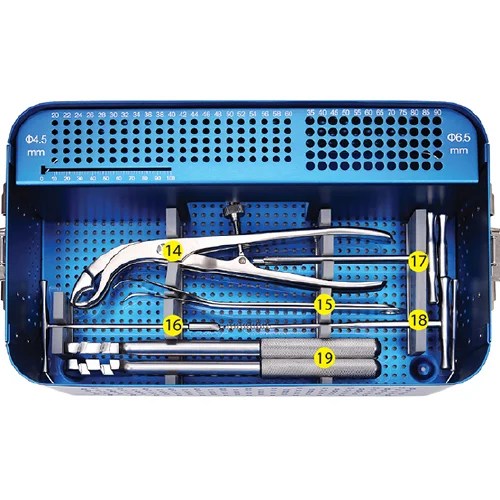

| 14 | Self-centering Bone Holding Forcep (270 mm) | 2 |
| 15 | Retractor Width 40 mm / 18 mm | 1 |
| 16 | Countersink Φ8.0 | 1 |
| 17 | Hollow Reamer Φ8.0 | 1 |
| 17 | Extraction Screw Hexagonal 3.5 mm Conical | 1 |
| 18 | Tap Cortex 4.5 mm | 1 |
| 18 | Tap Cancellous 6.5 mm | 1 |
| 19 | Bending Iron | 1 |
| 20 | Aluminium Box | 1 |
