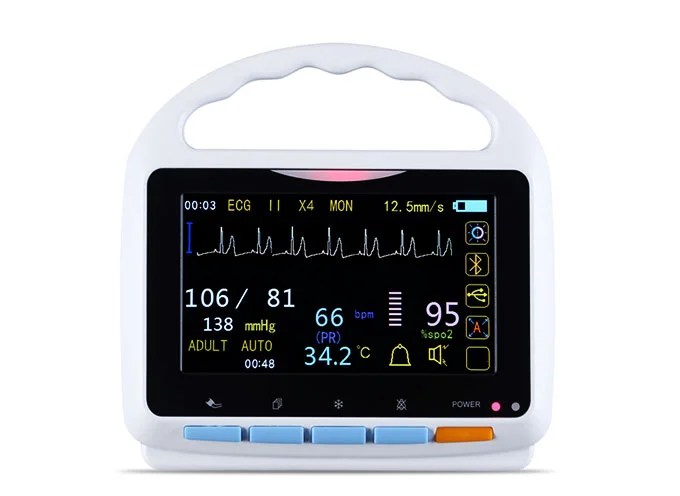

MD905 Patient Monitor Touch Screen 5.0 inch Color TFT Screen with Android App
– 5.0 inch color TFT screen with touch screen functionality
– Intelligent measuring of ECG, NIBP, SpO2, PR, PLETH, and temperature
– Storage and review trend data for up to 129.6 hours and 3888 groups
– Portable and compact design for easy carrying and operation
Original price was: £990.00.£975.00Current price is: £975.00.
Guaranteed Safe Checkout
Features & Compatibility
MD905 Patient Monitor — 5.0″ Touch Screen Color TFT Display
Portable, compact multiparameter monitor with intelligent ECG, NIBP, SpOâ‚‚, pulse rate, plethysmography, and temperature measurement. Features a bright 5.0-inch color touch screen, extended data storage for up to 129.6 hours, and seamless PC connectivity via USB or Bluetooth for comprehensive patient monitoring and data management.
Clinical overview
The MD905 is a portable, compact multiparameter patient monitor designed for real-time vital signs assessment across acute care, clinical, and field settings. The bright 5.0-inch color TFT touch screen with intuitive interface enables rapid parameter selection and waveform visualization. Simultaneous measurement of ECG (3/5-lead), NIBP (oscillometric), SpOâ‚‚, pulse rate, plethysmography, and core temperature provides comprehensive hemodynamic and oxygenation data essential for clinical decision-making.
Extended data storage—up to 129.6 hours of trend data and 3,888 measurement groups—allows longitudinal monitoring without frequent data export. Integrated Bluetooth and USB connectivity enable seamless transfer of historical data to PC-based software for archival, analysis, and printing. Built-in rechargeable lithium-ion battery (7.2V, 1700–2000 mAh) delivers up to 15 hours of continuous operation, supporting both in-hospital and transport scenarios. Audio-visual alarm functionality ensures immediate clinical notification of parameter deviations.
Key features & surgeon benefits
Clear, Responsive Touch Screen
- 5.0-inch color TFT-LCD with full touch functionality
- Adjustable backlight for optimal visibility in varied lighting
- Real-time waveform and numeric parameter display
Six-Parameter Simultaneous Monitoring
- ECG with 3/5-lead selection and gain adjustment (×1 to ×8)
- NIBP via oscillometric method with manual, auto, and STAT modes
- SpO₂ and pulse rate with ±1–2% accuracy; temperature to ±0.1°C
Extended Storage & Connectivity
- Store up to 3,888 measurement groups over 129.6 hours continuous
- ECG waveform review (8-second sections, 30 total); 100-group NIBP/SpOâ‚‚/temperature history
- USB and Bluetooth export to PC software for printing and archival
Compact Design, Extended Runtime
- Lightweight (655 g) with dimensions 209 × 104 × 47.5 mm
- Rechargeable Li-ion battery: 15-hour operation, 10-hour recharge
- AC adapter (100–240 VAC, 50/60 Hz) for continuous bedside use
Technical specifications
| Indications | Continuous and intermittent vital signs monitoring; acute care, clinical, and portable patient assessment |
|---|---|
| Display | 5.0-inch color TFT-LCD touch screen; 209 × 104 × 47.5 mm; net weight 655 g |
| ECG | 3/5-lead AAMI connector; sweep speed 12.5, 25, 50 mm/s; frequency response 0.05–100 Hz (no filter) or 0.5–40 Hz (filtered); heart rate 20–300 bpm, ±1 bpm accuracy |
| SpO₂ | Measuring range 0–100%; accuracy ±2% (90–99%), ±3% (70–89%); pulse rate 20–300 bpm, ±1 bpm |
| NIBP | Oscillometric method; cuff pressure 0–300 mmHg; adult range 30–255 mmHg, pediatric 30–160 mmHg; pressure resolution 1 mmHg; over-pressure protection 300 mmHg (adult), 220 mmHg (pediatric) |
| Temperature | Range 0–50°C; accuracy ±0.1°C via thermal-sensitive resistor sensor |
| Data Storage | Maximum 3,888 measurement groups; continuous trend data up to 129.6 hours; ECG waveform 30 sections (8 seconds each); NIBP/SpOâ‚‚/temperature history 100 groups |
| Battery | Li-ion rechargeable 3.7V/7200 mAh; operating time 15 hours (full capacity, 25°C, NIBP 15-min interval); recharge time 10 hours; charge/discharge cycles ≥1000 |
| Power Supply | AC adapter: 100–240 VAC, 50/60 Hz, 0.7 A input; DC 5V, 1.5 A output |
| Operating Environment | Temperature 0–45°C; humidity 30–85% (no condensation) |
| Storage Environment | Temperature −25 to +85°C; humidity 30–95% (no condensation) |
| Connectivity | USB data cable and Bluetooth wireless interface for PC software communication, data upload, and optional thermal printer connection |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable | 3/5-lead AAMI standard connector | 1 |
| SpOâ‚‚ Cable (Adult) | Adult finger clip sensor | 1 |
| NIBP Cuff (Adult) | Standard adult cuff (26–35 cm) | 1 |
| Temperature Probe | Thermal-sensitive resistor sensor | 1 |
| Power Adapter | AC 100–240 VAC, DC 5V 1.5A output | 1 |
| USB Cable | Data transfer and charging | 1 |
| Cleaning Cloth | Microfiber for display and housing | 1 |
Optional accessories & customisation
| Accessory | Description |
|---|---|
| ECG Cable (3-lead) | Alternative 3-lead configuration with alligator clips |
| SpOâ‚‚ Cables | Adult hard/soft shell, pediatric hard/soft, neonatal soft, child finger clip, multi-site Y-type, external cable |
| NIBP Cuffs | Infant (8–14 cm), child (13–20 cm), small adult (18–26 cm), adult (26–35 cm), adult long (29–38 cm), large adult (32–42 cm), large adult long (35–44 cm), thigh (42–50 cm); 5-bag packs available |
| NIBP Tube | 150 cm extension tubing |
| Thermal Printer | Bluetooth wireless interface; 58 mm thermal paper; real-time and review data printing |
| Paper Rolls | 58 mm thermal paper rolls (33 mm diameter) |
