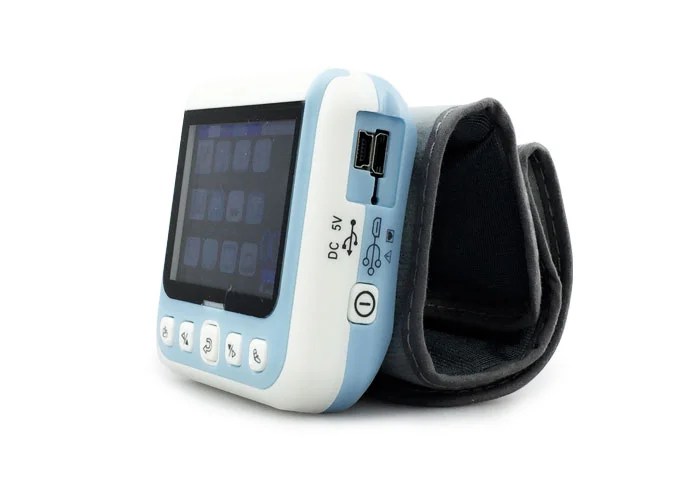

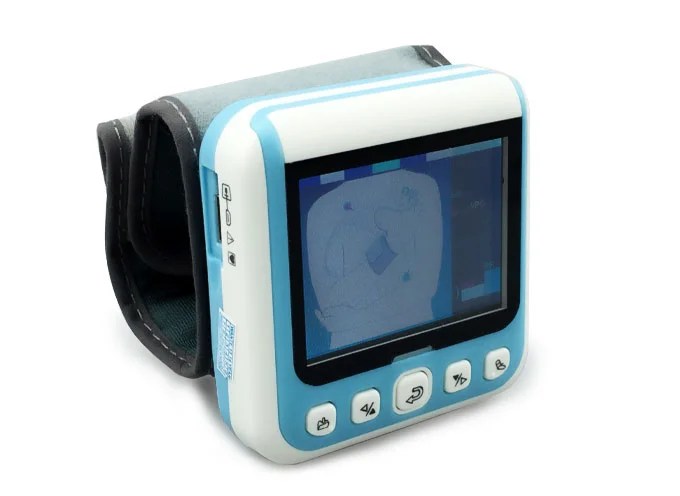

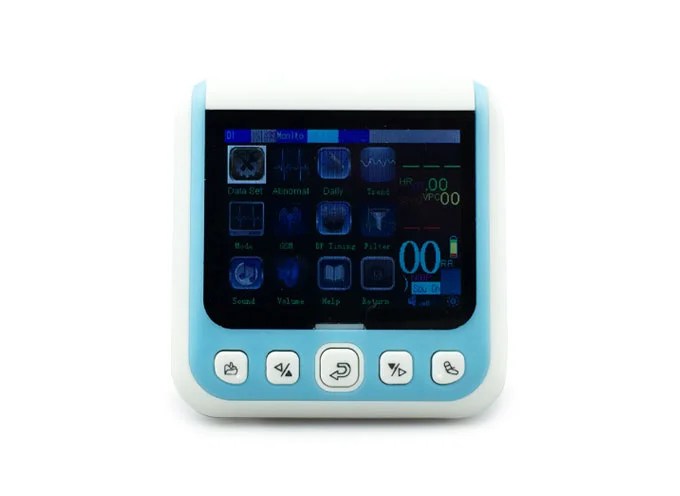

MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor
– MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor
– 2.4 inch TFT color screen with 320*240 resolution
– Displays 2 channels waveform of ECG, respiration, blood pressure, and SpO2
– Features ECG with abnormal data store, daily data store, and trend display
– Includes ECG Cable with 3 leads and 10 leads
– NIBP offers manual measurement and automatic identification for adult and child
– SpO2 with anti-low per-fusion and motion artifact detection
Original price was: £795.00.£595.00Current price is: £595.00.
Guaranteed Safe Checkout
Features & Compatibility
MD09X Wrist Multi-Parameters and Individual Parameter Patient Monitor
Compact wrist-worn multiparameter monitor with 2.4-inch TFT color display. Simultaneously monitors ECG, respiration, blood pressure, and SpO2 with advanced signal processing, abnormal data storage, and 96-hour trend analysis. Bluetooth 4.0 connectivity enables seamless integration with Android and iOS smart devices for remote patient monitoring.
Clinical overview
The MD09X is a portable, wrist-worn multiparameter patient monitor designed for continuous and spot-check monitoring in clinical, acute care, and home settings. The device simultaneously displays two-channel waveforms of ECG, respiration, blood pressure, and SpO2, enabling rapid assessment of patient hemodynamic and respiratory status. The 2.4-inch TFT color display (320×240 resolution) provides clear visualization of real-time waveforms and trend data, supporting clinical decision-making and early detection of abnormal cardiac rhythms and vital sign changes.
Advanced signal processing includes abnormal ECG detection (tachycardia, bradycardia, VPC, bigeminal rhythm, trigeminal rhythm, RonT, VTAC, escape beat, and sinus arrest), ST-segment measurement, and pacing pulse suppression. The NIBP module automatically identifies adult and child patients and adjusts measurement parameters accordingly. SpO2 measurement incorporates anti-low perfusion and motion artifact detection for reliable readings in challenging clinical environments. Embedded data storage, 96-hour trend analysis, and dual-mode alarms (visual and audible) ensure comprehensive patient surveillance and timely clinical alerts.
Key features & surgeon benefits
Multi-Channel Waveform Display
- 2.4-inch TFT color screen with 320×240 resolution
- Simultaneous display of ECG, respiration, blood pressure, and SpO2 waveforms
- Real-time blood pressure waveform visualization during measurement
- 96-hour trend display for ECG, blood pressure, SpO2, ST segments, and respiration
Intuitive Operation & Connectivity
- Wrist-worn design for portability and patient comfort
- Bluetooth 4.0 for seamless integration with Android and iOS devices
- Embedded e-manual for self-guided operation
- Automatic adult/child identification with adaptive measurement parameters
- Dual alarm modes: visible and audible alerts with adjustable thresholds
Advanced ECG & Vital Sign Analysis
- Abnormal ECG detection: tachycardia, bradycardia, VPC, bigeminal/trigeminal rhythms, RonT, VTAC, escape beat, sinus arrest
- ST-segment measurement (±2.0 mV range, ±0.02 mV precision)
- Pacing pulse suppression (±2 mV to 500 mV range)
- Abnormal data and daily data storage for retrospective analysis
- SpO2 with anti-low perfusion and motion artifact detection
Configurable Monitoring Parameters
- ECG cable options: 3-lead or 10-lead configurations
- Adjustable ECG waveform gain (0.5, 1.0, 2.0 mm/mV)
- Selectable scanning speed (7.5 mm/s or 15 mm/s)
- Customizable heart rate and vital sign alarm ranges
- Adaptable measurement protocols for adult and pediatric patients
Technical specifications
| Indications | Continuous and spot-check monitoring of cardiac rhythm, heart rate, blood pressure, oxygen saturation, and respiration in adult and pediatric patients |
|---|---|
| Display | 2.4-inch TFT color screen, 320×240 resolution; dual-channel waveform display |
| Sizes / range | Wrist circumference 135–215 mm; blood pressure 30–280 mmHg; SpO2 40–99%; heart rate 30–250 bpm |
| Material | Plastic housing, silicone wrist strap |
| Dimensions | 7 cm (W) × 7 cm (H) × 2.6 cm (D), excluding strap |
| Weight | Net: 130 g; Gross: 0.5 kg |
| Power | Built-in 3.7 V, 1000 mAh lithium battery; 5 V/1 A power adapter (2 W) |
| Operating environment | Temperature: 5–40 °C; Humidity: 15–80%; Atmospheric pressure: 80–105 kPa |
| Storage environment | Temperature: −20–55 °C; Humidity: 10–90%; Atmospheric pressure: 50–106 kPa |
| Connectivity | Bluetooth 4.0; compatible with Android and iOS devices |
| Safety | CF-type electrical shock protection; leakage current <10 µA |
| Warranty | 2 Year Manufacturer Warranty |
ECG specifications
| Parameter | Specification |
|---|---|
| Waveform gain | 0.5, 1.0, 2.0 mm/mV |
| Scanning speed | 7.5 mm/s, 15 mm/s |
| Heart rate range (adult) | 30–250 bpm |
| Heart rate precision | ±5%; resolution 1 bpm |
| Sensitivity | >200 µV (peak-to-peak) |
| Trigger level threshold | 200 nV (Lead II) |
| Differential input impedance | >5 MΩ |
| CMRR | ≥90 dB |
| Input signal range | ±5 mV |
| Frequency response (filter) | 0.67–40 Hz |
| Abnormal detection | Tachycardia, bradycardia, VPC, bigeminal rhythm, trigeminal rhythm, RonT, VTAC, escape beat, sinus arrest |
| ST-segment measurement range | −2.0 to +2.0 mV; precision ±0.02 mV or ±10% (−0.8 to +0.8 mV) |
| Pacing pulse suppression range | ±2 mV to 500 mV; width 0.1–2 ms |
Blood pressure (NIBP) specifications
| Parameter | Specification |
|---|---|
| Measurement method | Oscillometric |
| Measuring range | 30–280 mmHg |
| Measurement accuracy | ±5 mmHg or ±5% |
| Maximum cuff pressure | 300 mmHg; duration at ≥15 mmHg not to exceed 3 minutes |
| Overvoltage protection | Yes |
| Alarm accuracy | Systolic/diastolic ±2 mmHg |
| Patient identification | Automatic adult/child detection with adaptive pressure limits |
| Wrist circumference range | 135–215 mm |
SpO2 and pulse rate specifications
| Parameter | Specification |
|---|---|
| SpO2 measuring range | 40–99% |
| SpO2 accuracy (90–99%) | ±2% |
| SpO2 accuracy (70–89%) | ±4% |
| SpO2 accuracy (40–69%) | ±6% |
| SpO2 alarm range | 50–99% |
| SpO2 features | Anti-low perfusion; motion artifact detection |
| Pulse rate range (30–80 bpm) | ±2 bpm |
| Pulse rate range (80–150 bpm) | ±4 bpm |
| Pulse rate range (150–240 bpm) | ±5 bpm |
| Pulse rate accuracy | ±5% |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| ECG Cable (3-Lead) | Standard ECG lead set for cardiac monitoring | 1 |
| SpO2 Probe (Soft Tip) | Finger-mounted pulse oximetry sensor | 1 |
| Power Adapter | 5 V/1 A USB charging adapter | 1 |
| Cleaning Cloth | Microfiber cloth for device maintenance | 1 |
Optional accessories
| Item | ECG Cable (10-Lead) — for extended diagnostic ECG monitoring |
|---|
