Small Fragment Locking Plate Instrument Set
- Complete set of instruments for small fragment locking plate procedures
- Includes guider wires, drill bits, hex key, screwdrivers, taps, forceps, and more
- Comes in an aluminum box for easy storage and organization
- Ideal for orthopedic surgeries requiring precise instrumentation
- SKU
- 3200-01
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Small Fragment Locking Plate Instrument Set
Complete surgical instrumentation system designed for small fragment locking plate procedures. This comprehensive set includes guider wires, precision drill bits, specialized taps, reduction forceps, and torque-limiting handles—all organized in a durable aluminum storage box for optimal OR workflow and instrument protection.
Clinical overview
The Small Fragment Locking Plate Instrument Set represents a comprehensive solution for orthopedic surgeons performing small fragment fixation procedures. This 29-piece system integrates all essential instruments required for accurate plate positioning, guidewire placement, drilling, tapping, and screw insertion—ensuring consistent surgical technique and reduced operative time.
Engineered for precision and durability, each instrument is manufactured to exacting tolerances and supplied in a protective aluminum box designed for efficient sterilization, storage, and transport. The set includes redundant components (multiple guider wires and drill guides) to support high-volume surgical centers and teaching institutions, while the torque-limiting handle ensures optimal screw insertion torque and minimizes iatrogenic damage to bone and implant interfaces.
Key features & surgeon benefits
Complete Surgical Workflow
- Guider wires (threaded and non-threaded) for precise plate alignment
- Drill bits with and without limitators for controlled bone penetration
- Taps for both cortical (3.5mm) and locking (4.0mm) screws
Optimized OR Efficiency
- Quick-coupling handles (T-handle and straight) for rapid instrument changes
- Torque-limiting handle (1.5 N·m) prevents over-tightening and screw stripping
- Depth gauge (0–60mm) ensures accurate screw length selection
Cost-Effective Solution
- Single comprehensive set eliminates need for multiple instrument trays
- Redundant components reduce replacement frequency and downtime
- Durable stainless steel construction ensures long service life and minimal maintenance
Flexible Configuration
- Available as complete 29-piece set or custom sub-sets per institutional preference
- OEM branding and custom packaging options for hospital systems and distributors
- Compatible with standard quick-coupling power drill systems
Technical specifications
| Indications | Small fragment locking plate fixation; orthopedic trauma, reconstructive, and hand surgery |
|---|---|
| Sizes / range | Guider wires φ1.5mm (200mm length); drill bits φ2.5–3.2mm (200mm length); taps 3.5mm (cortical) and 4.0mm (locking) |
| Material | Stainless steel (instruments); aluminum (storage box and handles) |
| Sterilisation | Autoclavable; steam sterilization at 121–134°C, 15–30 minutes |
| Packaging | Protective aluminum box with foam insert and instrument identification labels |
| Warranty | 2 Year Manufacturer Warranty |

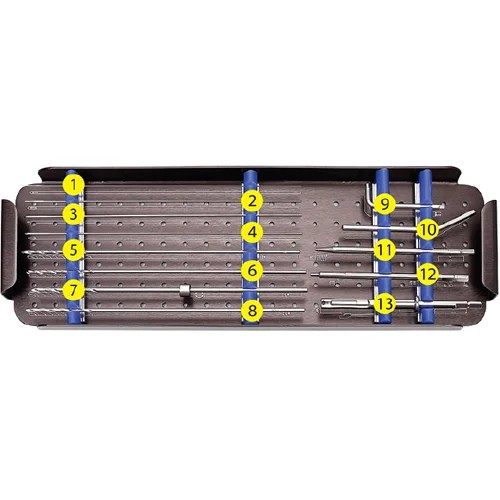

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Threaded Guider Wire φ1.5×200mm | 1 |
| 2 | Threaded Guider Wire φ1.5×200mm | 1 |
| 3 | Guider Wire φ1.5×200mm | 1 |
| 4 | Guider Wire φ1.5×200mm | 1 |
| 5 | Drill Bit φ2.5×200mm | 1 |
| 6 | Drill Bit φ2.5×200mm | 1 |
| 7 | Drill Bit φ3.2×200mm with Limitator | 1 |
| 8 | Drill Bit φ3.2×200mm | 1 |
| 9 | Hex Key | 1 |
| 10 | Sleeve Key | 1 |
| 11 | Extraction Screw | 1 |
| 12 | Screwdriver Hexagonal 2.5mm | 1 |
| 13 | Screwdriver Hexagonal 2.5mm + Sleeve | 1 |
| 14 | Depth Gauge 0–60mm | 1 |
| 15 | Push-pull Reduction Forcep | 1 |
| 16 | Tap for Cortical Screw 3.5mm | 1 |
| 17 | Tap for Locking Screw 4.0mm | 1 |
| 18 | Threaded Wire Guider 1.5mm | 1 |
| 19 | Threaded Wire Guider 1.5mm | 1 |
| 20 | Threaded Drill Guider 3.2mm | 1 |
| 21 | Threaded Drill Guider 3.2mm | 1 |
| 22 | Threaded Drill Guider 3.2mm | 1 |
| 23 | Screw Forcep | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Screwdriver Hexagonal 2.5mm | 1 |
| 27 | Torque Limiting Handle 1.5 N·m | 1 |
| 28 | Protective Sleeve | 1 |
| 29 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a formal quotation, discuss volume pricing, or arrange a product demonstration. We offer flexible delivery options and can customize instrument sets to meet your facility's specific surgical protocols.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
