Large Fragment Locking Plate Instrument Set
- Complete set of instruments for large fragment locking plate procedures
- Includes threaded wire guiders, drill guiders, sleeve key, screw forceps, and extraction screw
- Also includes taps for cortical and locking screws, drill bits, depth gauge, and screwdrivers
- Comes in a convenient aluminum box for easy storage and transportation
- SKU
- 3200-02
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Large Fragment Locking Plate Instrument Set
Complete surgical instrument set for large fragment locking plate procedures. Includes threaded wire guiders, drill guiders, taps, drill bits, depth gauge, screwdrivers, and reduction forceps. Supplied in a protective aluminum box for convenient storage and transport.
Clinical overview
The Large Fragment Locking Plate Instrument Set is a comprehensive surgical toolkit designed for orthopedic trauma surgeons performing fracture fixation with locking plate technology. This 26-piece set includes all essential instruments required for accurate plate positioning, drilling, tapping, and screw insertion, ensuring consistent surgical outcomes and reduced operative time.
The set combines precision-engineered guiders, depth measurement tools, and torque-limiting handles to facilitate safe, controlled screw placement. Supplied in a durable aluminum box, the instruments are organized for rapid access and easy sterilization, making this set ideal for high-volume trauma centers and orthopedic surgical facilities.
Key features & surgeon benefits
Complete surgical workflow
- Threaded wire and drill guiders for precise plate alignment
- Cortical and locking screw taps (4.5mm and 5.0mm)
- Multiple drill bits (φ3.2, φ4.2) with blocking options
Efficient operative technique
- Torque-limiting handle (4.0 N·M) prevents over-tightening
- Depth gauge (0–90mm) ensures accurate screw length selection
- Push-pull reduction forceps for controlled fracture reduction
Cost-effective solution
- Single comprehensive kit reduces instrument procurement complexity
- Durable stainless steel construction ensures long service life
- Aluminum storage box protects instruments and facilitates transport
Adaptable configuration
- Available with alternative handle couplings (T-handle or straight)
- OEM customisation options for specialized surgical protocols
- Individual components available for replacement or upgrade
Technical specifications
| Indications | Large fragment locking plate fixation; orthopedic trauma and fracture reduction |
|---|---|
| Sizes / range | Drill bits φ3.2–4.2mm; taps 4.5mm (cortical) and 5.0mm (locking); depth gauge 0–90mm; wire guiders φ2.0mm; drill guiders 4.3mm |
| Material | Stainless steel instruments; aluminum storage box |
| Sterilisation | As applicable |
| Packaging | Protective aluminum box with organized compartments |
| Warranty | 2 Year Manufacturer Warranty |

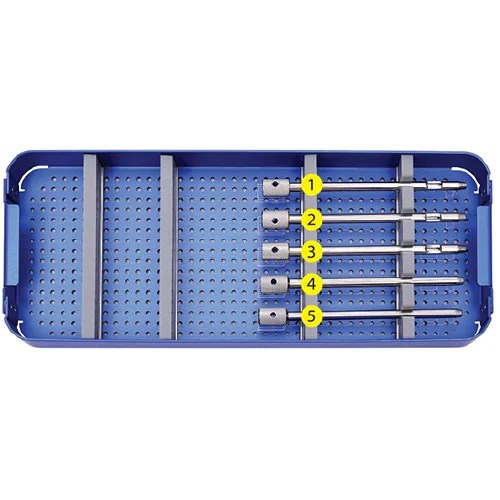

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Threaded Wire Guider 2.0mm | 1 |
| 2 | Threaded Wire Guider 2.0mm | 1 |
| 3 | Threaded Drill Guider 4.3mm | 2 |
| 4 | Threaded Drill Guider 4.3mm | 2 |
| 5 | Threaded Drill Guider 4.3mm | 1 |
| 6 | Sleeve Key | 1 |
| 7 | Screw Forcep | 1 |
| 8 | Extraction Screw | 1 |
| 9 | Tap for Cortical Screw 4.5mm | 1 |
| 10 | Tap for Locking Screw 5.0mm | 1 |
| 11 | Drill Bit φ3.2 | 1 |
| 12 | Guider Wire φ2.0 | 1 |
| 13 | Threaded Guider Wire φ2.0 | 1 |
| 14 | Drill Bit φ4.2 | 1 |
| 15 | Drill Bit φ3.2 with Block | 1 |
| 16 | Depth Gauge 0–90mm | 1 |
| 17 | Screwdriver Hexagonal 3.5mm | 1 |
| 18 | Screwdriver Hexagonal 3.5mm + Sleeve | 1 |
| 19 | Screwdriver Hexagonal 3.5mm | 1 |
| 20 | Push-pull Reduction Forcep | 1 |
| 21 | Torque Limiting Handle 4.0 N·M | 1 |
| 22 | Hex Key | 1 |
| 23 | Protective Sleeve | 1 |
| 24 | T-handle Quick Coupling | 1 |
| 25 | Straight Handle Quick Coupling | 1 |
| 26 | Aluminum Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quote, discuss customisation options, or arrange a product demonstration. We offer fast delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
