PFNA Nail Instrument Set
- PFNA Nail Instrument Set includes various tools for precise and efficient orthopedic surgeries
- Set includes guide sleeves, drill bits, wrenches, and impactors for comprehensive usage
- Designed with high-quality materials for durability and reliability in surgical procedures
- The set comes in a convenient instrument box for organized storage and easy access
- SKU
- 1200-07
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
PFNA Nail Instrument Set
Comprehensive surgical instrument set for proximal femoral nail antirotation procedures. Includes guide sleeves, drill bits, wrenches, impactors, and positioning devices for precise and efficient orthopedic trauma surgery. Engineered with high-quality materials for durability and reliability in demanding surgical environments.
Clinical overview
The PFNA Nail Instrument Set is a comprehensive surgical solution designed for proximal femoral nail antirotation procedures. This 62-piece instrument set provides surgeons with all necessary tools for safe, efficient, and precise fixation of intertrochanteric and subtrochanteric femoral fractures. The set includes specialized guide sleeves, hollow drill bits, hollow tappers, impactors, positioning devices, and locking mechanisms that work together to facilitate accurate nail placement and secure distal locking.
Each instrument is manufactured to exacting standards using high-grade stainless steel and titanium alloys, ensuring durability through repeated sterilization cycles and demanding surgical use. The organized instrument box provides convenient storage and rapid instrument identification in the operating theatre, supporting efficient surgical workflow and reducing operative time.
Key features & surgeon benefits
Complete Surgical Solution
- 62 precision instruments for all procedural steps
- Proximal, distal, and tail fixation components included
- Multiple guide sleeves and drill bit sizes for anatomical variation
Optimized Surgical Process
- Organized instrument box for rapid access and identification
- Quick-coupling handles and universal wrenches reduce setup time
- Depth gauges and positioning devices ensure accurate placement
Durability & Reliability
- High-grade stainless steel and titanium alloy construction
- Autoclavable for repeated sterilization without degradation
- Precision engineering for consistent performance
Flexible Solutions
- Available as complete 62-piece set or custom configurations
- OEM partnerships and white-label options supported
- Modular design allows selective instrument procurement
Technical specifications
| Indications | Proximal femoral fractures, intertrochanteric and subtrochanteric fracture fixation |
|---|---|
| Sizes / range | Guide sleeves φ16.5, φ11.2; drill bits φ3.2, φ4.3, φ5.2; locking pins φ2.8, φ3.2, φ4.3; wrench sizes SW3–SW11 |
| Material | Stainless steel, titanium alloy |
| Sterilisation | Steam sterilisable (autoclavable) |
| Packaging | Organized instrument box with 62 components |
| Warranty | 2 Year Manufacturer Warranty |

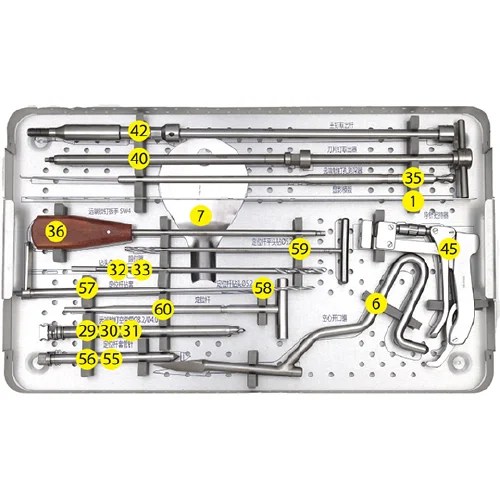

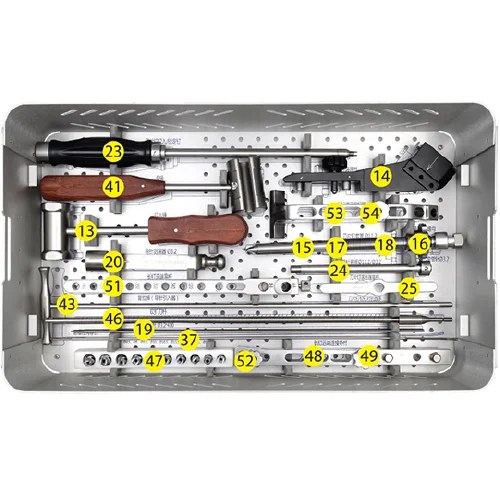

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Template for Development | 1 |
| 2 | Guide Sleeve φ16.5 | 1 |
| 3 | Guide Pin Sleeve φ16.5/φ3.2 | 1 |
| 4 | Handle with Quick Coupling | 1 |
| 5 | Proximal Hollow Drill Bit φ16.5/φ3.2 | 1 |
| 6 | Hollow Open Tapper | 1 |
| 7 | Protected Plate for Soft Tissue | 1 |
| 8 | Handle | 1 |
| 9 | Connecting Bolt M10*1.5/SW8 | 1 |
| 10 | Universal Wrench of Connecting Bolt SW8 | 1 |
| 11 | Main Pin Impactor | 1 |
| 12 | Open Wrench SW11 | 1 |
| 13 | Impactor Hammer | 1 |
| 14 | Proximal Guide Bar | 1 |
| 15 | Guide Sleeve φ11.2 | 1 |
| 16 | Support/Compression Nut | 1 |
| 17 | Guide Sleeve for Pins φ11.2/φ3.2 | 1 |
| 18 | Pins φ3.2 | 1 |
| 19 | Thread Pin φ3.2*400mm | 1 |
| 20 | Depth Gauge φ3.2 | 1 |
| 21 | Proximal Hollow Position Stopper φ10.6/φ3.2 | 1 |
| 22 | Position Stopper | 1 |
| 23 | Screwdriver M7*1 L/SW4.5/φ3.2 | 1 |
| 24 | Connector | 1 |
| 25 | Wrench | 1 |
| 26 | Distal Guide Bar 180 | 1 |
| 27 | Distal Guide Bar 240 | 1 |
| 28 | Distal 90 Degree Guide Bar 180/240 | 1 |
| 29 | Distal Locking Pin Sleeve φ11/φ8.2 | 1 |
| 30 | Soft Tissue Separating Device φ8.2/φ4.3 | 1 |
| 31 | Sleeve Pin φ4.3 | 1 |
| 32 | Drill Bit φ4.3 | 1 |
| 33 | Position Stopper φ4.3/SW3 | 1 |
| 34 | Small Wrench SW3/φ4 | 1 |
| 35 | Distal Locking Holes Depth Gauge | 1 |
| 36 | Distal Locking Screw Wrench SW4 | 1 |
| 37 | Tail Hook Guide Pin φ2.8 | 1 |
| 38 | Tail Hollow Screwdriver φ2.8/SW6.5/SW11 | 1 |
| 39 | Tail Hollow Sleeve/Extension Rod SW11 | 1 |
| 40 | Blade Nail Device M7*1 L/SW4.5 | 1 |
| 41 | Sliding Hammer | 1 |
| 42 | Nail Remove Rod M10*1.5 | 1 |
| 43 | Reduction Rod (Guide Pin Leading Device) | 1 |
| 44 | Ball Head Guide Pin φ2.5/φ4 | 1 |
| 45 | Guide Pin Control Device | 1 |
| 46 | Soft Expansion Tool Rod φ2.5/φ8 | 1 |
| 47 | Soft Expansion Metallurgy φ8–φ13 | 1 |
| 48 | Long Nail Distal Connection Guide Pin | 1 |
| 49 | Long Nail Distal Connection Guide Bar Lock Wheels M8*1/SW5 | 1 |
| 50 | Locking Wheel Spanner | 1 |
| 51 | Long Nail Distal Guide Bar | 1 |
| 52 | Long Nail Distal Guide Pin Locking Wheels M8*1/SW5 | 1 |
| 53 | Long Nail Distal Positioning Frame | 1 |
| 54 | Long Nail Distal Positioning Frame Lock Wheels M6/SW5 | 1 |
| 55 | Positioning Pipe φ10/φ8.1 | 1 |
| 56 | Positioning Stem Bushing Needle φ8.1 | 1 |
| 57 | Positioning Stem Drilling Sheath φ8.1/φ5.2 | 1 |
| 58 | Positioning Drill Rod φ5.2 | 1 |
| 59 | Positioning Stem Flats Drill φ5.2 | 1 |
| 60 | Positioning Rod φ8.1/φ5.2 | 1 |
| 61 | Positioning Card | 1 |
| 62 | Instrument Box | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, discuss custom configurations, or arrange a product demonstration. We provide fast delivery and comprehensive technical support for all PFNA nail instrument sets.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
