New Tibia Intramedullary Nail Instrument Set
- Complete set of instruments for tibia intramedullary nailing
- Includes a variety of rods, drills, drivers, and connectors
- Features protective sleeves, reamers, chisels, and locking screws
- Essential tools for proper positioning, drilling, and insertion
- Durable construction for reliable surgical use
- SKU
- 1200-09
- Brand
- Orthopromed
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
New Tibia Intramedullary Nail Instrument Set
Complete surgical instrumentation system for tibia intramedullary nailing procedures. This comprehensive 47-piece set includes all essential tools for proximal and distal locking, positioning, drilling, and nail insertion. Engineered for precision, reliability, and efficient surgical workflow in tibial fracture fixation.
Clinical overview
The New Tibia Intramedullary Nail Instrument Set is a comprehensive surgical system designed to streamline tibial fracture fixation procedures. This 47-piece instrumentation kit provides surgeons with all necessary tools for accurate guide pin placement, sequential reaming, precise drilling for proximal and distal locking, and reliable nail insertion. The set encompasses positioning rods, multiple drill sizes, locking mechanisms, protective sleeves, and specialised drivers to ensure optimal anatomical reduction and secure fixation.
Each instrument is manufactured from durable surgical-grade materials and engineered for repeated sterilisation and clinical use. The modular design allows for flexible surgical approaches while maintaining consistency in technique and outcome. Whether performing standard locked nailing or complex fracture patterns requiring custom positioning, this instrument set provides the precision and reliability demanded in modern orthopaedic trauma surgery.
Key features & surgeon benefits
Complete Surgical Workflow
- 47 precision instruments in single set
- Covers all procedural steps from guide pin to final locking
- Proximal and distal targeting devices included
Optimised Instrumentation
- Multiple drill sizes (φ3.2, φ4.0, φ5.2) for varied anatomy
- Integrated depth gauges and positioning rods
- Specialised drivers for proximal and distal locking screws
Built for Repeated Use
- Surgical-grade steel construction
- Steam sterilisable for standard OR protocols
- Designed for long-term clinical reliability
Flexible Solutions
- OEM configurations available
- Bespoke instrument combinations on request
- Scalable for institutional and training programmes
Technical specifications
| Indications | Tibial shaft fractures, intramedullary nailing fixation |
|---|---|
| Sizes / range | Drill sizes φ3.2, φ4.0, φ5.2; multiple locking configurations |
| Material | Surgical-grade steel |
| Sterilisation | Steam sterilisable |
| Packaging | Complete set in protective case |
| Warranty | 2 Year Manufacturer Warranty |

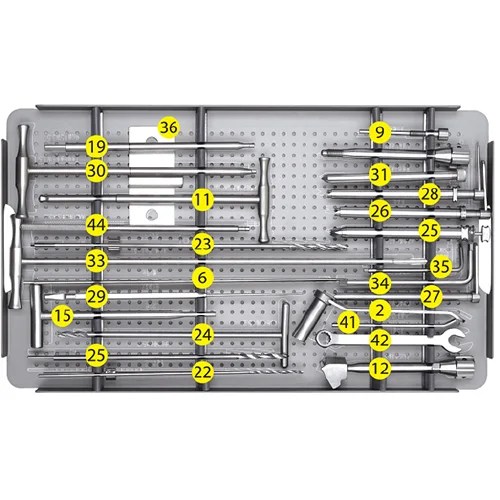

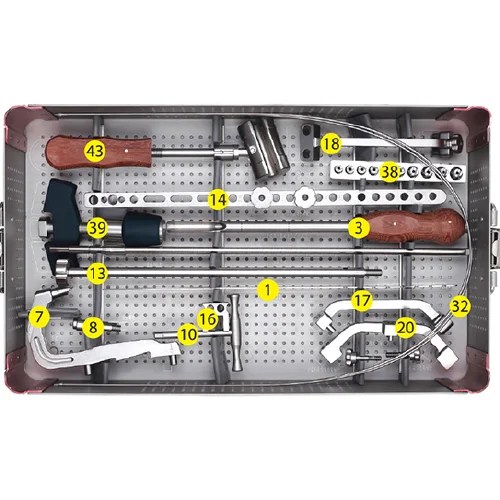

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 1 | Proximal Knife Rod T Handle | 1 |
| 2 | Proximal Knife Rod φ12/φ3.2 | 1 |
| 3 | Right Angle Locking Rod | 1 |
| 4 | Cannulated AWL | 1 |
| 5 | Nail Driver Extractor Connector | 1 |
| 6 | Wrench | 1 |
| 7 | Connector Wrench | 1 |
| 8 | Protection Sleeve φ12 | 1 |
| 9 | Positioning Rod Sleeve φ3.2 | 1 |
| 10 | Frame Rods Locking Screw Driver SW5 | 1 |
| 11 | Drill Stopper Screw Driver SW3 | 1 |
| 12 | Cancellous Screw Drill Sleeve Set φ3.2, 8.6, 11 | 1 |
| 13 | Drill Sleeve Set φ4.0 | 1 |
| 14 | Trocar | 1 |
| 15 | Nail Extract Connecting Rod | 1 |
| 16 | Compression Bolt | 1 |
| 17 | Bone Drill φ3.2 | 1 |
| 18 | Drill Stopper | 1 |
| 19 | Bone Drill φ5.2 | 1 |
| 20 | Positioning Rod Flat Head Drill φ5.2 | 1 |
| 21 | Position Rod | 1 |
| 22 | Depth Gauge | 1 |
| 23 | Threaded Guide Pin | 1 |
| 24 | Guide Pin Guider | 1 |
| 25 | Bone Drill φ4.0 | 1 |
| 26 | Drill Stopper φ4.0 | 1 |
| 27 | Hex Screw Holder SW3.5 | 1 |
| 28 | Connecting Rod Universal Driver SW6.5 | 1 |
| 29 | Locking Screw Driver SW3.5 | 1 |
| 30 | Protection Plate | 1 |
| 31 | Guide Pin | 1 |
| 32 | Sliding Hammer | 1 |
| 33 | Frame Guide Rod | 1 |
| 34 | Guide Pin Holder | 1 |
| 35 | Reamer Shaft | 1 |
| 36 | Sliding Hammer Guide Rod | 1 |
| 37 | Developing Calculator | 1 |
| 38 | Connecting Bolt | 1 |
| 39 | Insertion Handle | 1 |
| 40 | U-shaped Locking Block | 1 |
| 41 | Connecting Rod Screwdriver SW6.5 | 1 |
| 42 | Distal Target Device | 1 |
| 43 | Flexible Reamer Bit φ7.5–12 | 1 |
| 44 | Cannulated Chisel φ12/3.2 | 1 |
| 45 | Proximal Target Device | 1 |
| 46 | Proximal Cancellous Target Device | 1 |
| 47 | Proximal Cancellous Target Device Locking Screw | 1 |
Get in touch for pricing & availability
Contact our sales team to request a detailed quote, arrange a product demonstration, or discuss customisation options for your institution. We provide rapid turnaround on orders and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
