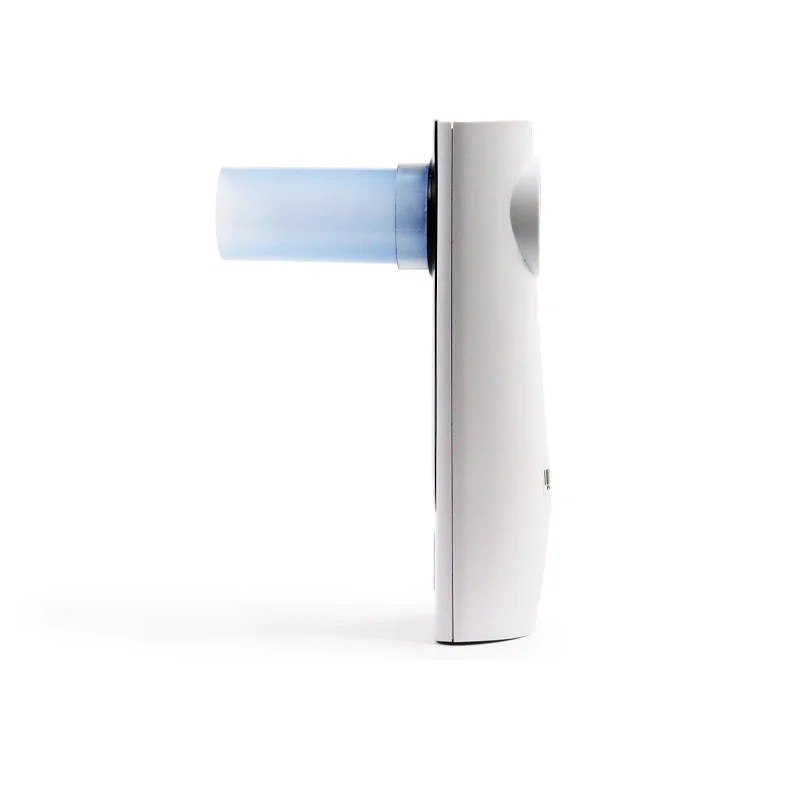

Spirometer Pulmonary Lung Function Spirox Plus
- Measures Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), and FEV1/FVC ratio
- Displays Peak Expiratory Flow (PEF) and various flow rates
- Provides data memory, trend chart display, and calibration features
- Comes with PC software for printing reports and USB socket for data upload
- SKU
- OD-00401
- Brand
- Meditech
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Spirometer Pulmonary Lung Function Spirox Plus
Advanced portable spirometry system with large color display, comprehensive flow and volume measurements, and integrated PC software for clinical reporting. Ideal for respiratory assessment in clinical, occupational health, and research settings.
Clinical overview
The Spirox Plus is a next-generation portable spirometer designed for comprehensive pulmonary function testing in clinical, occupational health, and research environments. Featuring a large 2.8-inch color TFT-LCD display with 240×320 resolution, the device delivers clear, real-time visualization of respiratory parameters and flow-volume curves. The 2019/2020 version represents a significant upgrade in user interface and measurement reliability.
This device measures all essential spirometric parameters including Forced Vital Capacity (FVC), Forced Expired Volume in one second (FEV1), Peak Expiratory Flow (PEF), and flow rates at 25%, 50%, and 75% of FVC (FEF25, FEF50, FEF75), as well as the average flow between 25% and 75% (FEF25-75). Integrated data memory, trend analysis, and automatic quality control features support evidence-based clinical decision-making. Built-in Bluetooth and USB connectivity enable seamless data transfer to PC software for comprehensive report generation and archival.
Key features & surgeon benefits
Comprehensive Spirometric Parameters
- FVC, FEV1, FEV1/FVC ratio measurement
- Peak expiratory flow (PEF) and flow rates (FEF25, FEF50, FEF75, FEF25-75)
- Predicted vs. measured value comparison for clinical interpretation
Intuitive Interface & Data Management

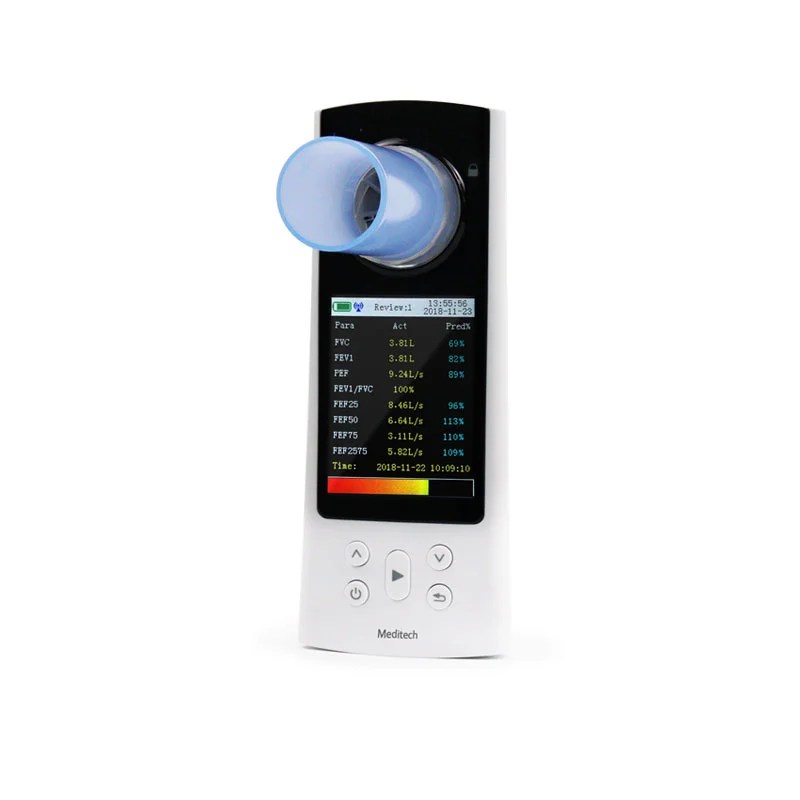

- Large 2.8-inch color TFT-LCD display with flow-volume and volume-time charts
- Data memory, review, delete, and upload functions
- Trend chart display for longitudinal patient monitoring
Mobile & Reliable Operation
- Rechargeable lithium battery with power display and 2-minute auto-shutoff
- Lightweight, portable design for clinic, bedside, or field use
- Low working current (200 mA) for extended battery life
Integrated Reporting & Data Transfer
- PC software included for printing professional clinical reports
- USB socket and Bluetooth module for wireless data upload and integration
- Automatic calibration and quality control alerts
Technical specifications
| Display | 2.8-inch color TFT-LCD, 240×320 resolution |
|---|---|
| Volume range | 0–10 L |
| Volume accuracy | ±3% or ±0.05 L (whichever is greater) |
| Flow range | 0–16 L/s |
| Flow accuracy | ±5% or ±0.2 L/s (whichever is greater) |
| Power supply | DC 3.7 V rechargeable lithium battery |
| Working current | 200 mA |
| Safety classification | Internally powered equipment, Type BF applied part |
| Connectivity | USB socket, Bluetooth module |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Mouthpiece | Disposable spirometer mouthpiece | 1 |
| USB Cable | USB data transfer cable | 1 |
| Cleaning Cloth | Device cleaning cloth | 1 |
| USB Charger | DC 3.7 V USB charging adapter | 1 |
| PC Software | Included for report generation and data management | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your pulmonary function testing requirements, request a demonstration, or arrange a trial unit for your facility.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
