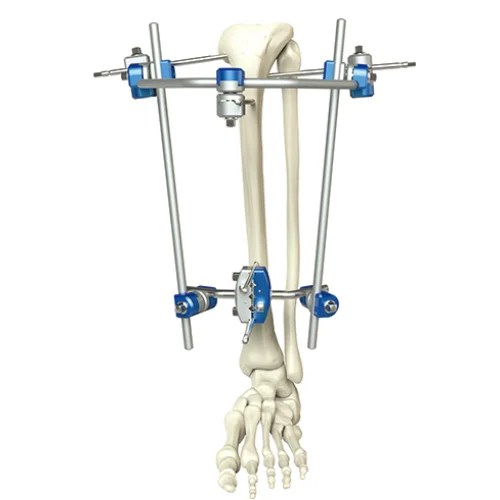

Proximal Tibia External Fixator
- Complete set for proximal tibia external fixation
- Includes rod-rod and rod-pin couplings for stability
- Features angled posts and various length rods for flexibility
- Self-drilling apex pins for easy application
- SKU
- 7100-12
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Proximal Tibia External Fixator
Complete modular system for proximal tibia external fixation. Features rod-rod and rod-pin couplings, angled posts, and self-drilling apex pins for flexible, stable fixation in trauma and reconstructive applications.
Clinical overview
The Proximal Tibia External Fixator is a comprehensive modular system designed for secure fixation of proximal tibia fractures and complex trauma cases. The system combines rod-rod and rod-pin couplings with angled posts and variable-length rods to provide surgeons with maximum flexibility in frame construction and alignment. Self-drilling apex pins enable rapid application with minimal soft-tissue trauma, reducing operative time and improving patient outcomes.
This system is particularly valuable in acute trauma settings where rapid stabilisation is critical, as well as in reconstructive procedures requiring staged fixation adjustments. The modular design allows surgeons to adapt the frame configuration to individual patient anatomy and injury patterns.
Key features & surgeon benefits
Dual Coupling System
- Rod-rod couplings for frame-to-frame connections
- Rod-pin couplings for secure pin-to-frame attachment
- 5-hole pin clamp for multi-directional fixation
Rapid Application
- Self-drilling apex pins reduce insertion time
- Angled posts enable anatomically correct frame positioning
- Modular components allow quick assembly and adjustment
Configurable Design
- Multiple rod lengths (180mm semi-circular, 250mm straight)
- 30-degree angled posts for complex anatomy
- Adaptable to various fracture patterns and patient sizes
Complete System Value
- All essential components included in single set
- Reduces need for multiple purchases
- Proven durability and long service life
Technical specifications
| Indications | Proximal tibia fractures, trauma fixation, reconstructive procedures |
|---|---|
| Sizes / range | 5–6mm pins, 8mm rods, 180mm semi-circular and 250mm straight configurations |
| Material | Stainless steel (pins, couplings, clamps), aluminum (rods) |
| Sterilisation | Steam sterilisable |
| Packaging | Complete set in protective case |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 7100-1201 | Rod-Rod Coupling (8mm Rod) | 4 |
| 7100-1202 | Rod-Pin Coupling (5/6mm Pin, 8mm Rod) | 3 |
| 7100-1203 | 5-Hole Pin Clamp (5/6mm Pin) | 1 |
| 7100-1204 | 30 Degree Angled Post 8mm | 2 |
| 7100-1205 | Semi Circular Rod 8×180mm | 1 |
| 7100-1206 | Aluminum Connecting Rod 8×250mm | 2 |
| 7100-1207 | Apex Pin Self-drilling 5×150mm | 5 |
Get in touch for pricing & availability
Contact our sales and technical team to discuss your proximal tibia fixation requirements, request a detailed quote, or arrange a product demonstration.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
