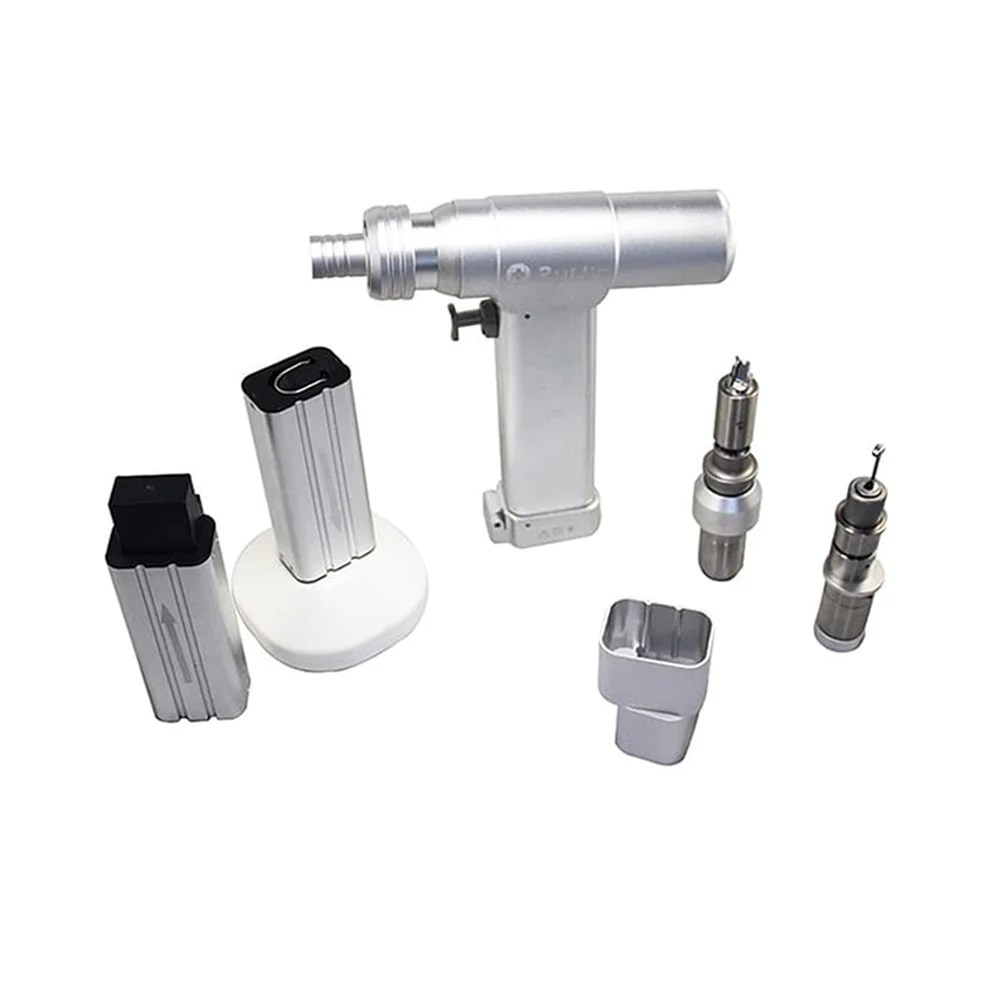

NM-200 Craniotomy Drill Mill System
- The NM-200 Craniotomy Drill Mill System is a versatile and cost-effective medical device designed for orthopedic applications
- This system features a reusable design made of durable stainless steel, suitable for Type 2 medical device regulations
- It includes a variety of attachments such as a sternum saw, bone drill, craniotomy drill, and mill, providing high quality performance
- With a range of speeds for different attachments, ergonomic design, and easy assembly, this system offers convenience and efficiency for surgical procedures
- SKU
- D190BE886896
- Brand
- Ruijin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
NM-200 Craniotomy Drill Mill System
A versatile and cost-effective multifunctional surgical platform engineered for orthopedic and neurosurgical applications. The NM-200 combines a durable stainless steel mainframe with seven quick-change attachments—including craniotomy drill, sternum saw, bone drill, and high-speed mill—delivering exceptional performance across diverse surgical sites with ergonomic precision and ease of assembly.
Clinical overview
The NM-200 Craniotomy Drill Mill System is a multifunctional surgical platform designed to streamline complex orthopedic and neurosurgical procedures. By integrating seven precision attachments into a single ergonomic handpiece, the system eliminates the need for multiple standalone instruments, reducing operative time, improving workflow efficiency, and lowering total cost of ownership. The mainframe is constructed from high-strength stainless steel and is fully autoclavable at 135°C, ensuring durability and compliance with infection control standards.
Each attachment is engineered for specific surgical tasks: the craniotomy mill operates at 40,000 rpm for rapid, safe bone removal; the auto-pause cranial drill prevents inadvertent perforation in neurosurgery; the sternum saw features a 360° rotating head with blade guard for soft tissue protection; and the reamer provides high-torque performance for acetabular and medullary operations. The system is powered by Ni-MH batteries without memory effect, offering extended runtime and environmental sustainability.
Key features & surgeon benefits
Seven Quick-Change Attachments
- Single handpiece drives all seven attachments without tool changeover
- Covers craniotomy, sternum, bone drilling, reaming, and milling in one system
- Reduces instrument inventory and sterilisation burden
Precision Engineering
- Auto-pause cranial drill prevents unintended perforation
- 360° rotating head on sternum saw and oscillating saw for ergonomic access
- Imported quick chuck ensures consistent, reliable performance
Speed & Performance
- Craniotomy mill at 40,000 rpm enables fast, efficient bone removal
- Variable speed ranges (40–16,000 rpm) optimised for each attachment
- Wrenchless collet for rapid, safe blade loading and unloading
Reusable & Sustainable
- High-strength stainless steel mainframe rated for extended service life
- Autoclavable at 135°C; environment-friendly Ni-MH batteries
- Easy assembly and disassembly of all attachments
Technical specifications
| Model | RJ-MP-NM-200 |
|---|---|
| Type | Multifunctional Drill & Saw System |
| Indications | Orthopedic surgery, neurosurgery, craniotomy, sternum procedures, acetabular operations, intramedullary fixation |
| Material | Stainless Steel (mainframe & key components) |
| Sterilisation | Autoclavable at 135°C |
| Power Source | Ni-MH rechargeable battery (no memory effect) |
| Frequency | 50 Hz |
| Weight | 8 kg |
| Colour | Black / Silver |
| Regulatory Status | Type 2 Medical Device (Reg. No. Wsyjxzz2012-2100053) |
| Packaging | Aluminium alloy box (38 × 28 × 13 cm) in carton (41 × 32 × 15 cm) |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Main multifunctional drive unit with 360° rotating capability | 1 |
| Quick Chuck | Imported precision chuck (0–1,300 rpm) | 1 |
| Sternum Saw | 360° rotating head with blade guard (0–15,000 rpm) | 1 |
| Oscillating Saw | Swing saw with wrenchless collet (0–16,000 rpm) | 1 |
| Bone Drill | Standard bone drilling attachment | 1 |
| Canulated Drill | For intramedullary pin and Kirschner wire fixation (4.0 mm canula) | 1 |
| Craniotomy Drill | Auto-pause perforation safety feature (900 rpm) | 1 |
| Craniotomy Mill | High-speed bone removal (40,000 rpm) | 1 |
| Reamer | Hi-torque acetabular and medullary reamer (0–300 rpm) | 1 |
| Wire & Pin Chuck | For intramedullary pin and Kirschner pin fixation (0–600 rpm) | 1 |
| Acetabulum Burnishing Drill | Specialised acetabular preparation attachment | 1 |
| Charger | Battery charging unit | 1 |
| Batteries | Ni-MH rechargeable (no memory effect) | 2 |
| Aluminium Alloy Box | Protective storage and transport case | 1 |
Get in touch for pricing & availability
The NM-200 is available for immediate delivery. Contact our sales team for competitive pricing, bulk discounts, and customisation options tailored to your surgical programme.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

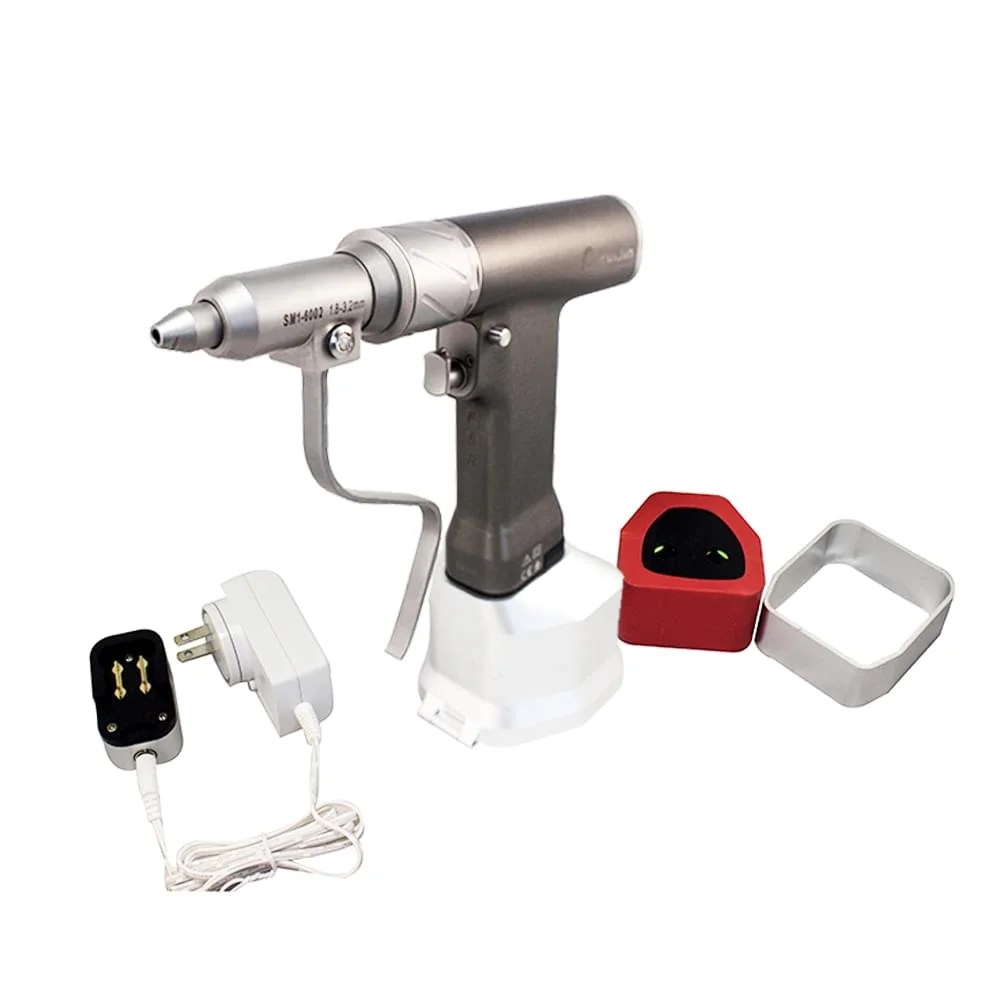

SM-100 Handpiece Of Multifunctional System
