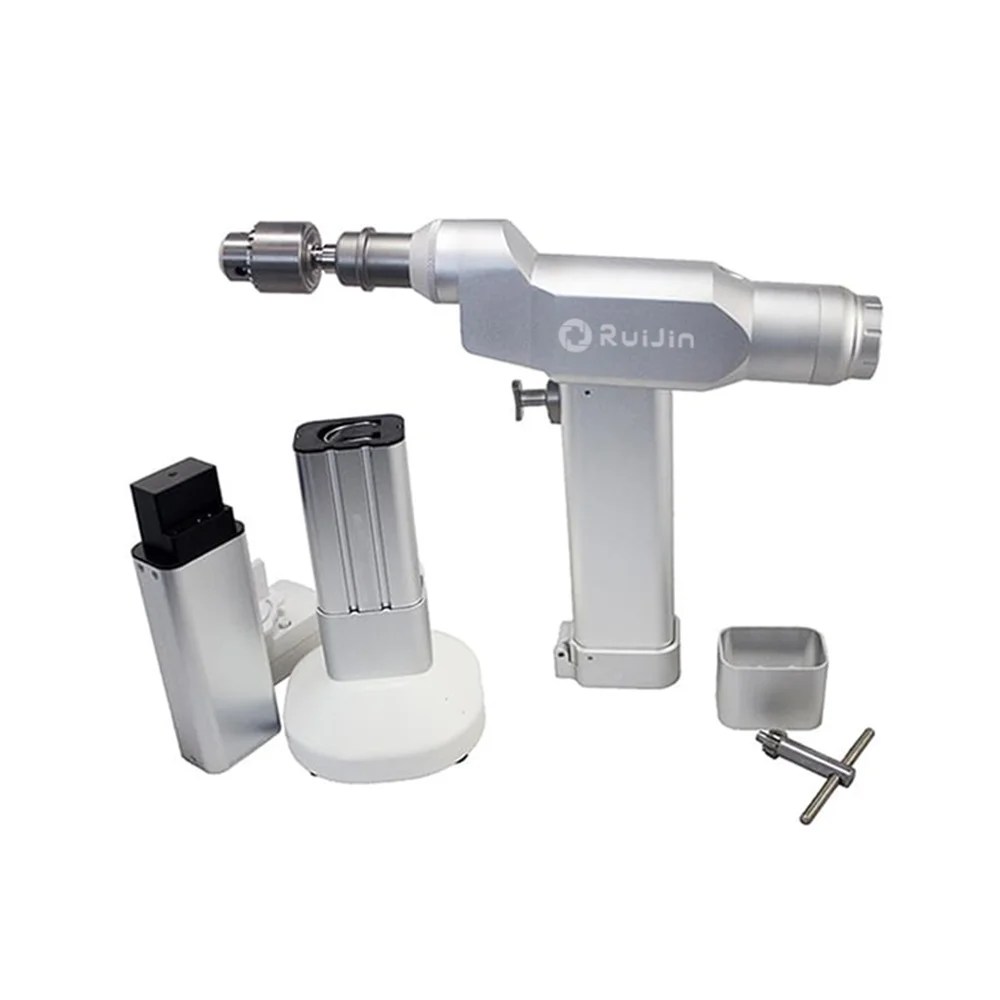

ND-2011 Dual Function Cannulated Drill
- Portable and lightweight design
- Reliable performance for orthopedic procedures
- Autoclavable for easy sterilization
- Features axial run-out of concentricity within 0.05mm
- SKU
- 489D8F374983
- Brand
- Ruijin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
ND-2011 Dual Function Cannulated Drill
A portable, lightweight, and reliable cannulated drill system designed for orthopedic procedures. Features exceptional concentricity (0.05mm axial run-out), autoclavable construction, and a 4.0mm hollow bore to accommodate standard needles and guidewires.
Clinical overview
The ND-2011 is a cordless, battery-powered cannulated drill engineered for precision orthopedic applications. Its dual-function design supports both drilling and reaming operations, making it suitable for a wide range of bone fixation procedures. The 4.0mm hollow bore accommodates standard guidewires and cannulated needles, enabling seamless integration into existing surgical workflows.
With an axial run-out of concentricity within 0.05mm and a maximum torque of 3.5N/m, the ND-2011 delivers consistent, reliable performance. The ergonomic handpiece features semi-laser surface treatment for enhanced operator comfort during extended procedures. Full autoclavability ensures compliance with infection control protocols and supports cost-effective reusable instrument management.
Key features & surgeon benefits
Exceptional Concentricity
- Axial run-out within 0.05mm ensures accurate bore alignment
- 600 rpm operating speed provides controlled drilling
- 4.0mm hollow bore accommodates all standard guidewires
Cordless Convenience
- Battery-powered design eliminates cable constraints
- Dual-function capability supports drilling and reaming
- Multipurpose interface simplifies clinical setup
Reusable & Durable
- Fully autoclavable construction reduces consumable costs
- Stainless steel components ensure long service life
- Ni-MH battery without memory effect maximizes lifespan
Operator Comfort
- Semi-laser surface treatment reduces hand fatigue
- Lightweight, portable design for extended procedures
- Low noise output (63dB) minimizes OR disruption
Technical specifications
| Indications | Orthopedic surgical procedures; cannulated drilling and reaming |
|---|---|
| Sizes / range | 4.2mm canula diameter; 600 rpm operating speed |
| Material | Stainless steel handpiece and accessories |
| Sterilisation | Autoclavable handpiece and sterilizing channel included |
| Packaging | Aluminium box; one set per carton |
| Warranty | 2 Year Manufacturer Warranty |
| Power specifications | Handpiece: 14.4V, >20W output; Charger: AC 220V/50Hz, 14.4V/900mA output; Charging time: ~3 hours |
| Performance | Axial run-out: 0.05mm; Torque: 3.5N/m; Noise: 63dB |
| Regulatory | Type 2 Medical Device; Reg. No. Wsyjxzz2012-2100053 |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Cordless cannulated drill unit, 14.4V | 1 |
| Battery | Ni-MH rechargeable battery, 14.4V | 1 |
| Charger | AC 220V/50Hz input, 14.4V/900mA output | 1 |
| Drill chuck | Standard interface chuck with key | 1 |
| Sterilizing channel | Autoclavable accessory for handpiece | 1 |
| Aluminium box | Protective storage and transport case | 1 |
Get in touch for pricing & availability
Contact our sales team to request a quotation, arrange a demonstration, or discuss customization options for the ND-2011. We offer rapid delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

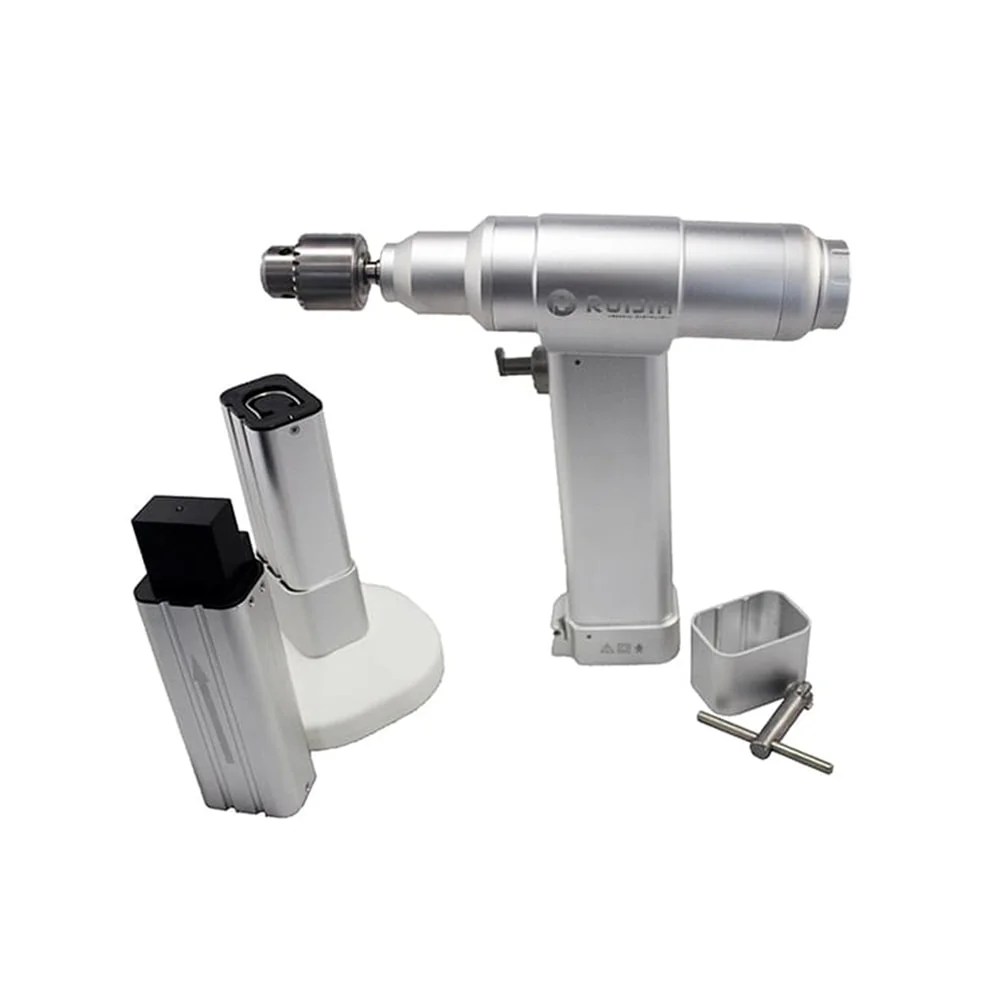

ND-1001 Surgical Bone Drill
- Professional surgical bone drill machine (Model: ND-1001) - Autoclavable and stainless steel material - Variable speed with high coaxiality and lower noise level - Comes with standard configuration including drill chuck, battery, charger, handpiece, sterilizing channel, and aluminum box

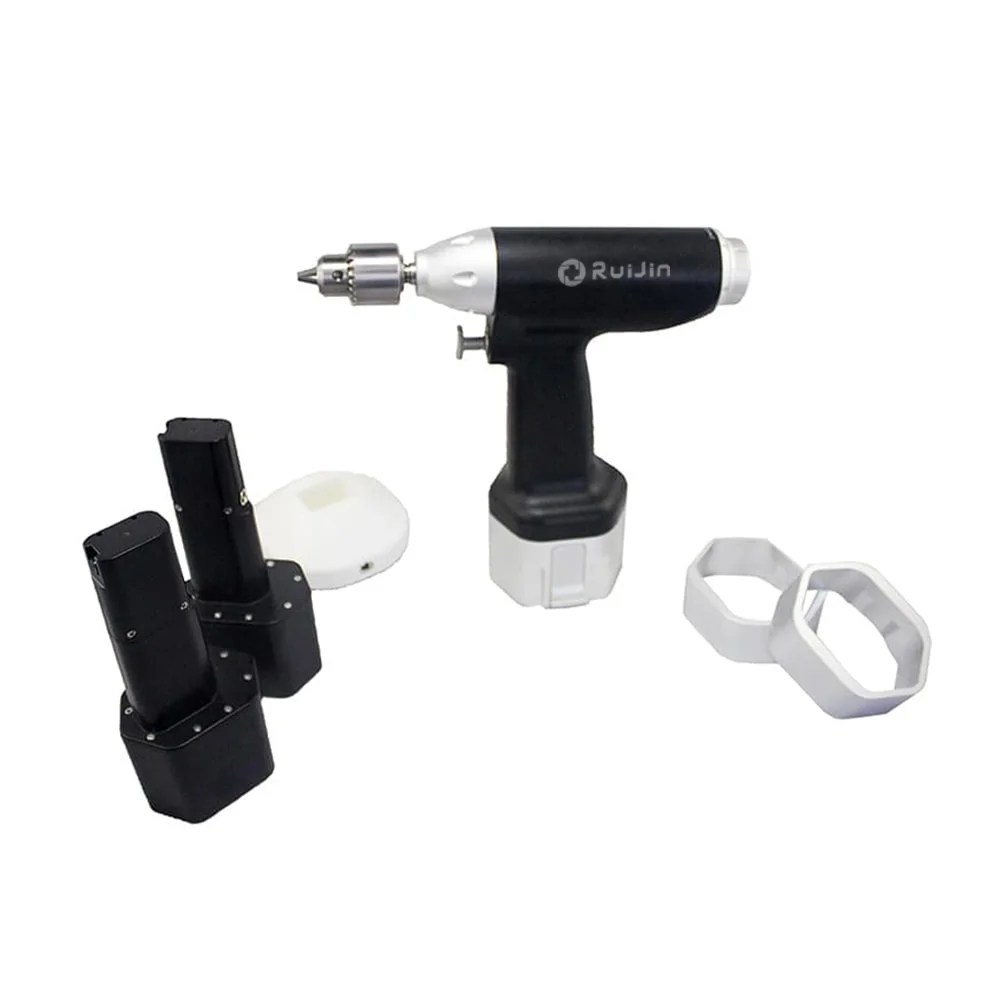

MD-1001 Orthopedic Bone Drill
- Model NO.: RJ-MP-NM-100 - Material: Stainless Steel - Features: Reusable - Output Power: 150W - Speed: 0-1200rpm - Voltage: AC220V/50Hz - Can be sterilized up to 135°

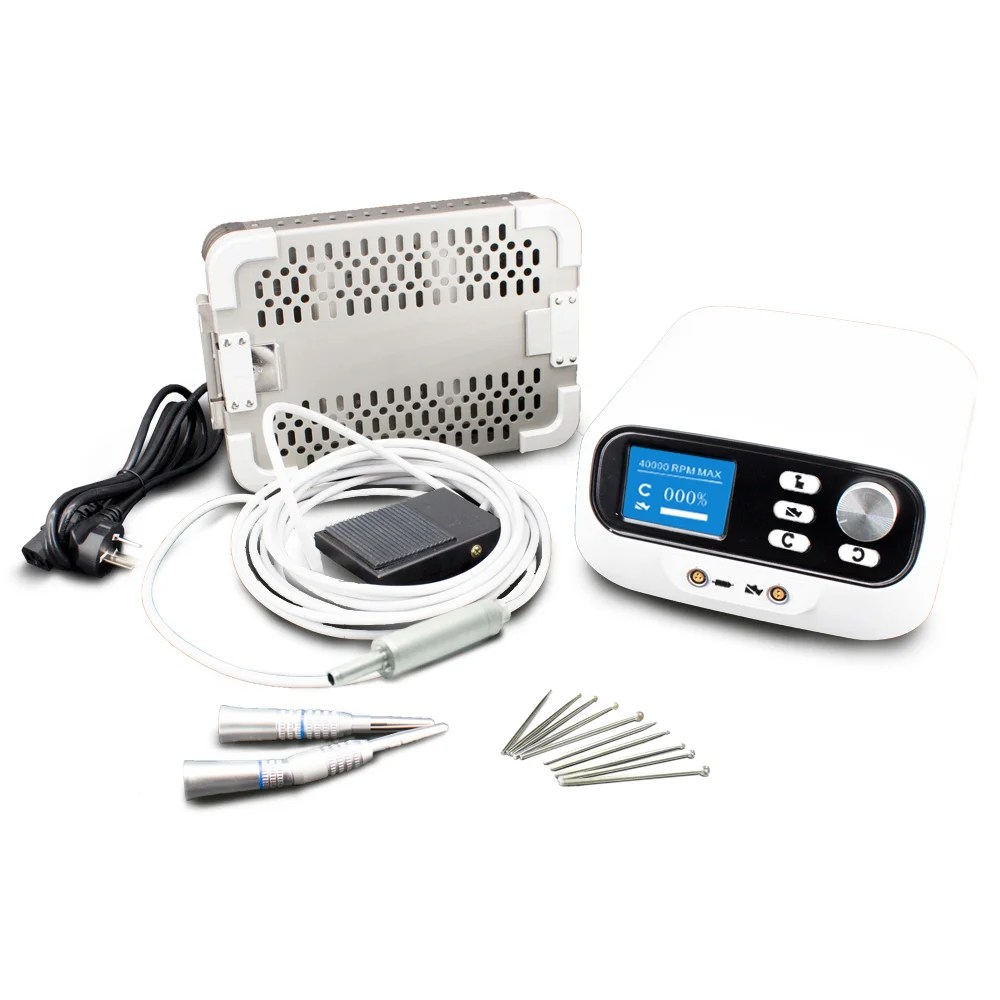

Micro Medical Electric Spine Drill RJ-W-MZ-1
- The RJ-W-MZ-1 Micro Medical Electric Spine Drill is a versatile tool suitable for orthopedic, ENT, neurosurgery, microsurgery, and burns applications. - Made of stainless steel, this drill is reusable and certified with CE and ISO13485. - It operates at a speed of 40000rpm with a max drilling diameter of 4.3mm and a torque of 125gcm. - The ergonomic design and autoclavable feature make it a practical, durable, and cost-effective choice for surgeons.

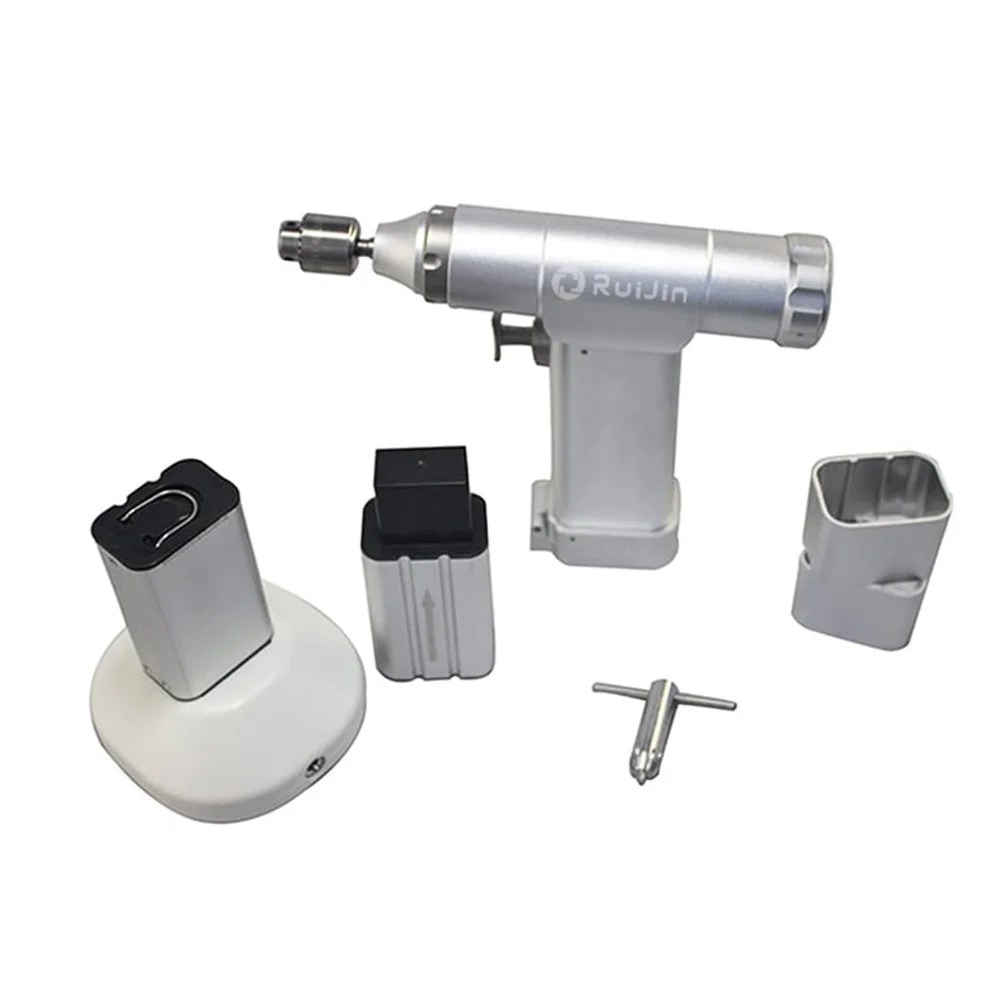

ND-5001 Mini Bone Drill Machine
- The ND-5001 Mini Bone Drill Machine is a surgical electric orthopedic small bone drill. - It is suitable for orthopedic, ENT, neurosurgery, and microsurgery applications. - Made of aluminum and stainless steel, this drill is reusable and certified with CE and ISO13485. - It features an input power of 110V/60Hz~220V/50Hz, weighs 1700g, and has a noise level of 63db.

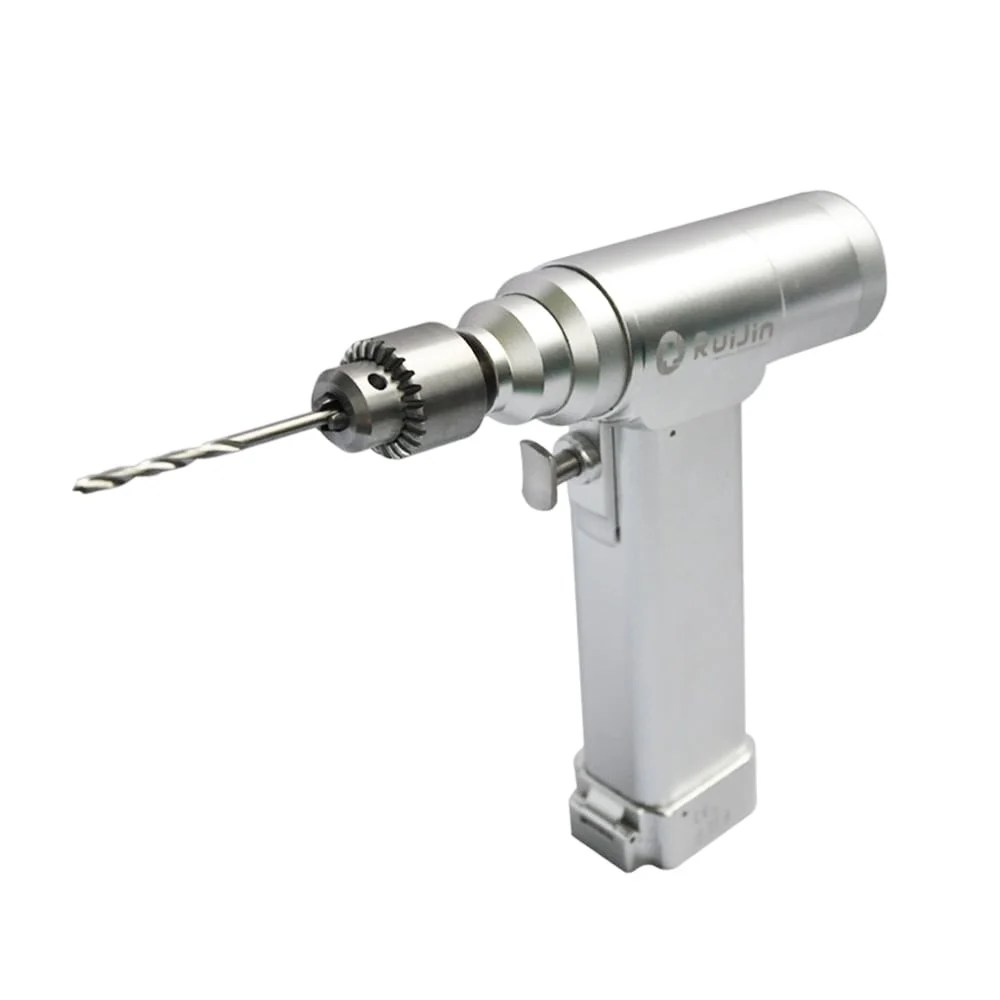

ND-1011 Dual Functional Electric Orthopedic Bone Drill
- The ND-1011 Dual Functional Electric Orthopedic Bone Drill is a versatile surgical drill suitable for orthopedic procedures and internal fixation with steel plates. - Made from stainless steel, this reusable drill is CE and ISO13485 certified. - With a torque of 7500g/cm, it offers precise and stable performance with a non-load speed of 1300r/m. - The drill features discretionary speed control, accommodating a variety of drilling demands accurately and efficiently. - Ideal for basic surgeries in both human and animal cases, this bone drill is easy to use and comes with a one-year warranty.

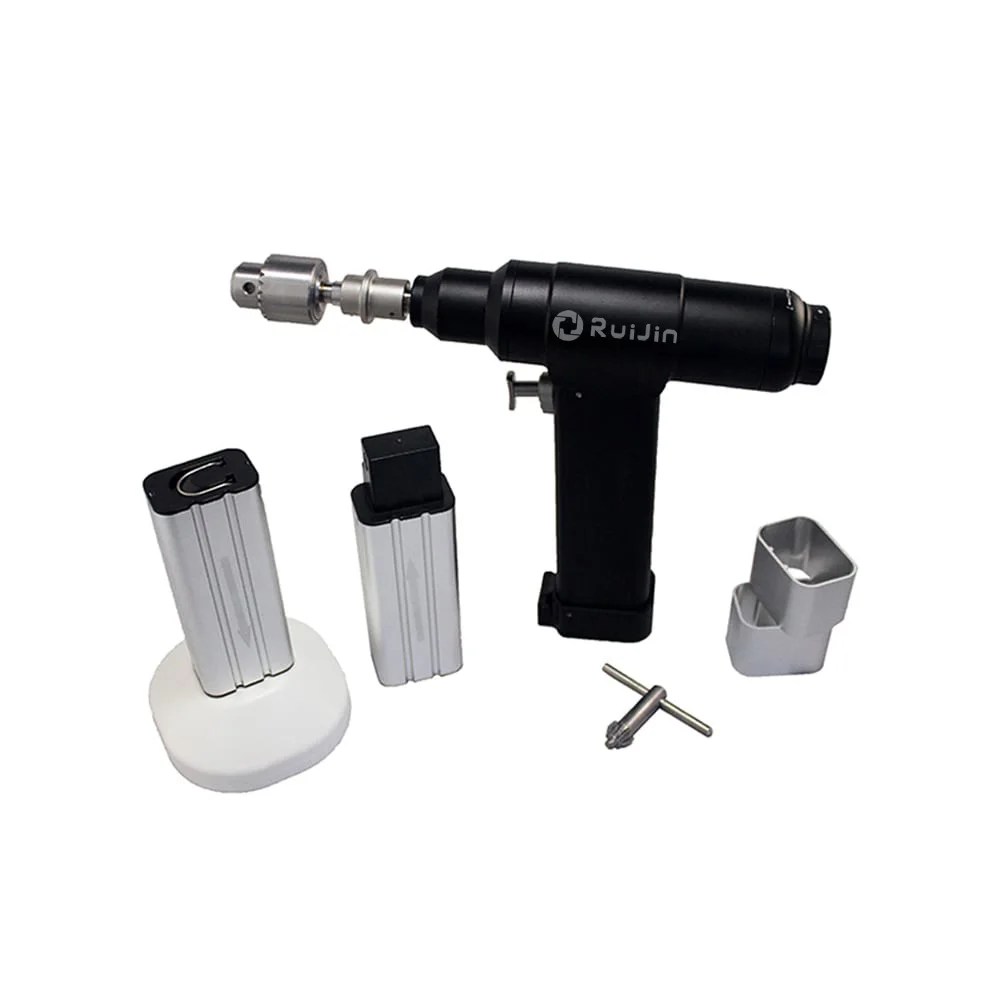

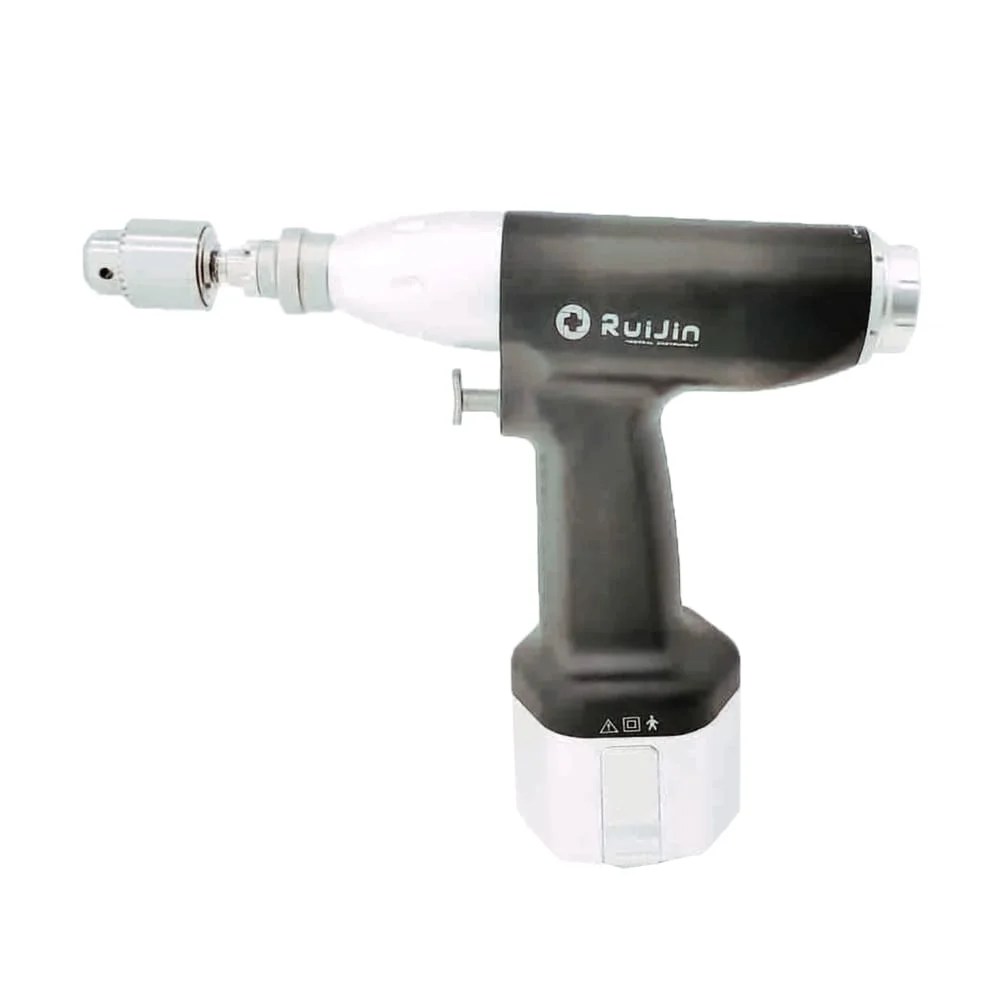

ND-3011 High Torque Hip Joint Drill
- Orthopaedics slow speed drill with high torque for joint operations - Autoclavable and versatile, suitable for orthopedic, microsurgery, and burns applications - Features discretionary speed control and low noise operation - Comes with a mainframe, charger, battery, sterilizing channel, drill chuck, and aluminum alloy box for convenient use

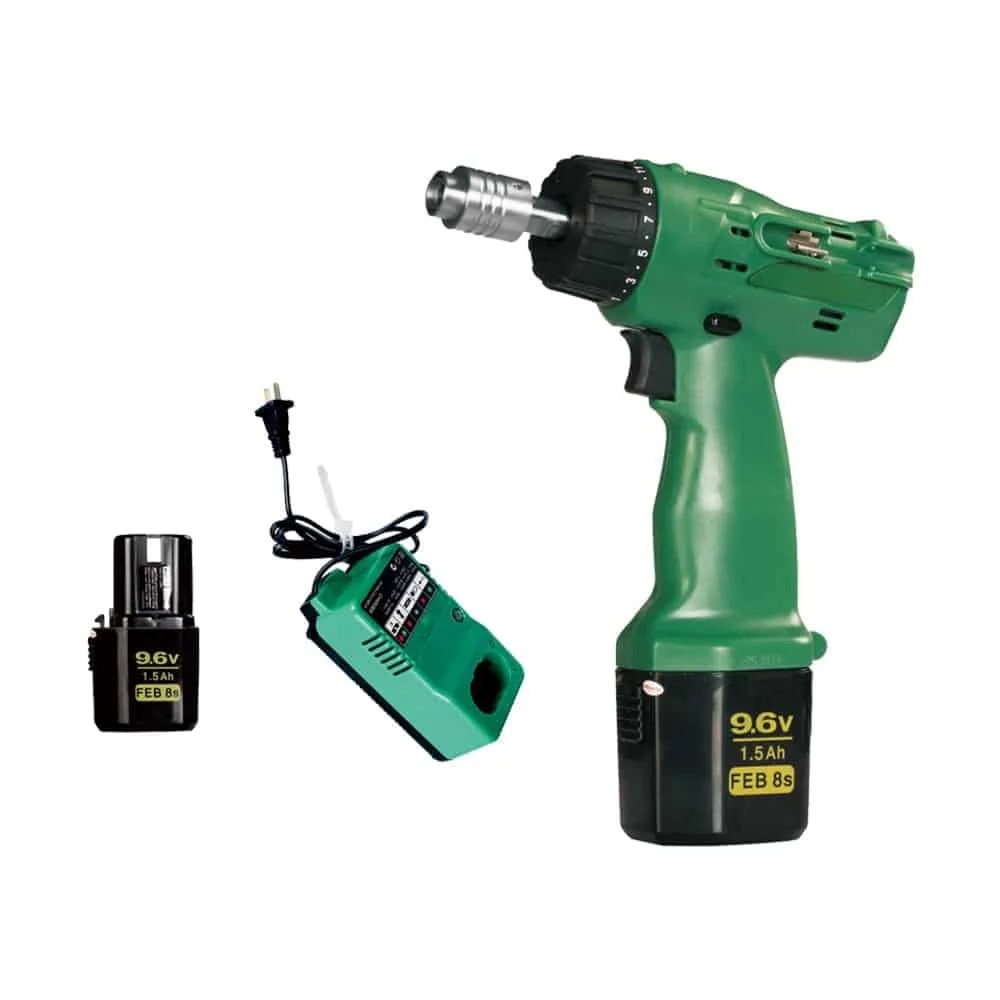

CD-6011 Fumigate Orthopedic Drill
