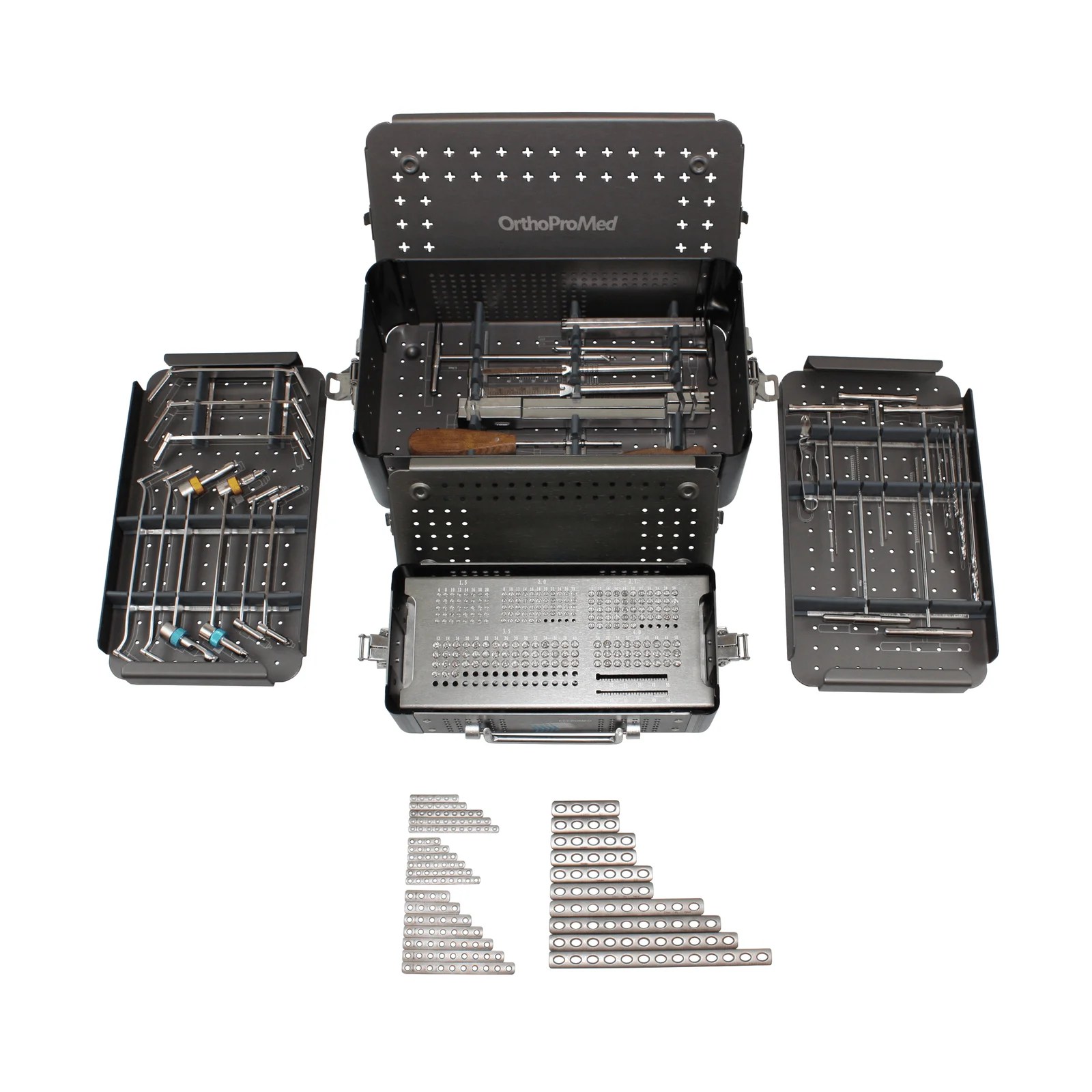

Complete Orthopedic System for Small Autoclaves
- Complete kit of orthopedic instruments, bone screws, and bone plates
- Constructed of high-quality stainless steel
- Includes self-tapping screws with hex heads
- Comes in durable aluminum cases
- Suitable for small autoclaves
- SKU
- CCFB2C7DDD19
- Brand
- Orthoprovet
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Complete Orthopedic System for Small Autoclaves
A comprehensive, ready-to-use surgical kit featuring precision-engineered instruments, self-tapping bone screws, and bone plates across all standard sizes. Constructed entirely from high-quality stainless steel and housed in durable aluminum cases designed for small autoclave sterilisation and efficient OR workflow.
Clinical overview
This complete orthopedic system delivers a fully integrated solution for bone fixation procedures across all standard implant sizes. The kit combines precision drilling, tapping, and screw placement instruments with a comprehensive selection of self-tapping cortical and cancellous screws, plus bone plates for multi-directional fixation. Every component is manufactured from medical-grade stainless steel to ensure durability, sterility, and reliable performance in the operating theatre.
Designed specifically for small autoclave environments, the system is housed in compact aluminium cases that maintain instrument organisation whilst optimising sterilisation cycles. The multi-size approach (1.5–4.0 mm) eliminates the need for multiple kits, reducing inventory complexity and ensuring surgeons have immediate access to the full range of fixation options for any orthopedic case.
Key features & surgeon benefits
Complete size range in one kit
- 1.5, 2.0, 2.7, 3.5, and 4.0 mm instruments and screws
- Cortical and cancellous screw options for all sizes
- Bone plates for each size category
Streamlined surgical efficiency
- Neutral and loaded drill guides for precision hole placement
- Dedicated taps and sleeves for each size
- Hex head screwdrivers and depth gauges for controlled insertion
Single-kit solution reduces costs
- Eliminates need for multiple separate kits
- Optimised for small autoclave sterilisation cycles
- Durable aluminium cases protect investment long-term
Adaptable to your practice
- Instrument composition customisable on request
- OEM configurations available
- Expandable with additional screws and plates
Technical specifications
| Indications | Orthopedic fixation, bone plating, cortical and cancellous screw placement |
|---|---|
| Sizes / range | 1.5 / 2.0 / 2.7 / 3.5 / 4.0 mm |
| Material | Medical-grade stainless steel instruments; aluminium cases |
| Sterilisation | Autoclavable; designed for small autoclave compatibility |
| Packaging | 1 × Aluminium case (11¾″L × 7″W × 4″H); 1 × Screw case (9½″L × 4½″W × 2⅝″H) |
| Warranty | 2 Year Manufacturer Warranty |

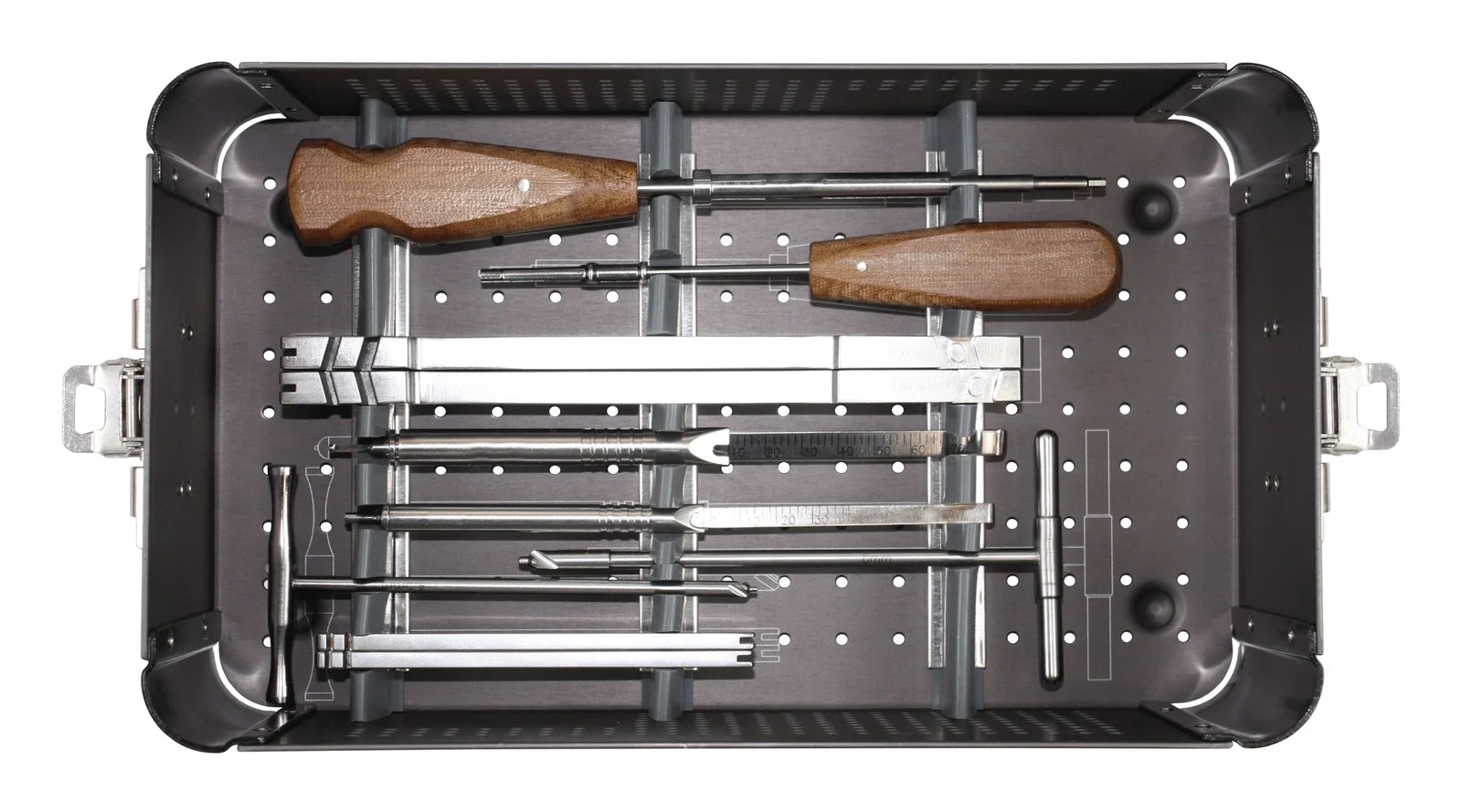

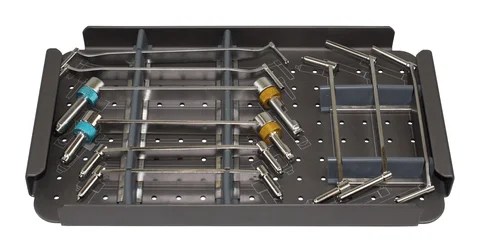

Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Drill Bit | 1.1 mm | 2 |
| Drill Bit | 1.5 × 80 mm | 2 |
| Drill Bit | 2.0 × 80 mm | 2 |
| Drill Bit | 2.5 × 115 mm | 2 |
| Drill Bit | 3.2 × 150 mm | 2 |
| Drill Guide | 1.1 mm Neutral & Loaded | 1 |
| Drill Guide | 1.5 mm Neutral & Loaded | 1 |
| Drill Guide | 2.0 mm Neutral & Loaded | 1 |
| Drill Guide | 2.5 mm Neutral & Loaded | 1 |
| Drill Guide | 3.2 mm Neutral & Loaded | 1 |
| Tap Sleeve | 1.1 mm & 1.5 mm | 1 |
| Tap Sleeve | 2.0 mm & 2.7 mm | 1 |
| Tap Sleeve | 2.5 mm & 3.5 mm | 1 |
| Tap Sleeve | 3.2 mm & 4.0 mm | 1 |
| Tap | HA 1.5 mm | 1 |
| Tap | HA 2.0 mm | 1 |
| Tap | HA 2.7 mm | 1 |
| Tap | HA 3.5 mm | 1 |
| Tap | HA 4.0 mm | 1 |
| Screw Forceps | Small | 1 |
| Hex Head Screwdriver | SW 2.5 mm | 1 |
| Hex Head Screwdriver | 1.5 mm | 1 |
| Depth Gauge | Large 70 mm | 1 |
| Depth Gauge | Small 40 mm | 1 |
| Counter Sink | Large 6.0 mm | 1 |
| Counter Sink | Small 4.5 mm | 1 |
| Plate Bender | Small (pair) | 1 |
| Plate Bender | Large (pair) | 1 |
| Bone Plate | 1.5 mm | 1 |
| Bone Plate | 2.0 mm | 1 |
| Bone Plate | 2.7 mm | 1 |
| Bone Plate | 3.5 / 4.0 mm | 1 |
| Cortical Screw | Self-tapping hex head 1.5 mm | 10 |
| Cortical Screw | Self-tapping hex head 2.0 mm | 10 |
| Cortical Screw | Self-tapping hex head 2.7 mm | 10 |
| Cortical Screw | Self-tapping hex head 3.5 mm | 10 |
| Cancellous Screw | Self-tapping hex head 4.0 mm | 10 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and any custom configurations for your practice or facility. We offer flexible ordering and rapid dispatch for established accounts.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
