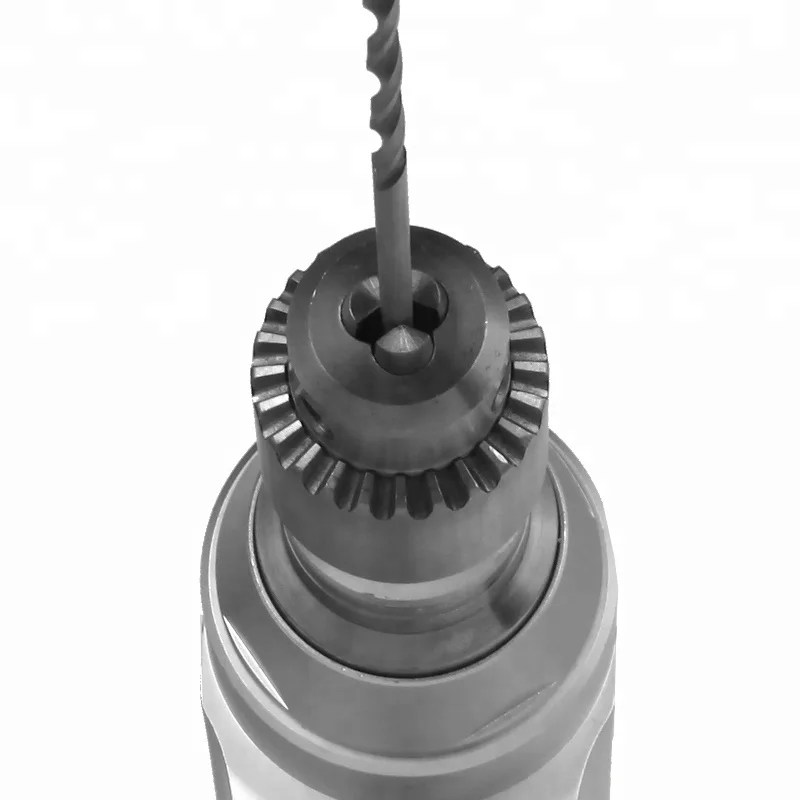

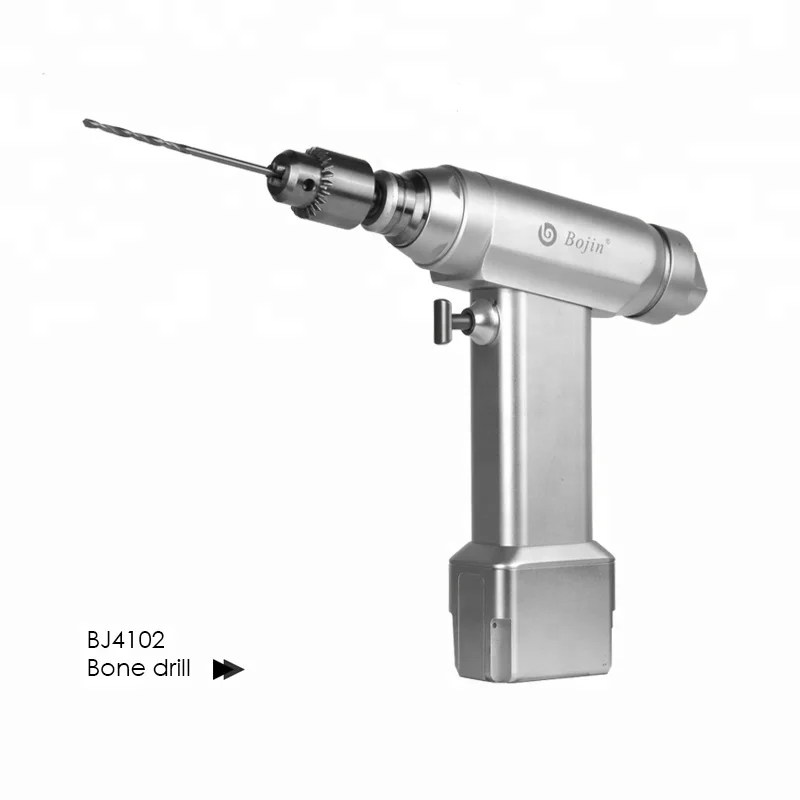

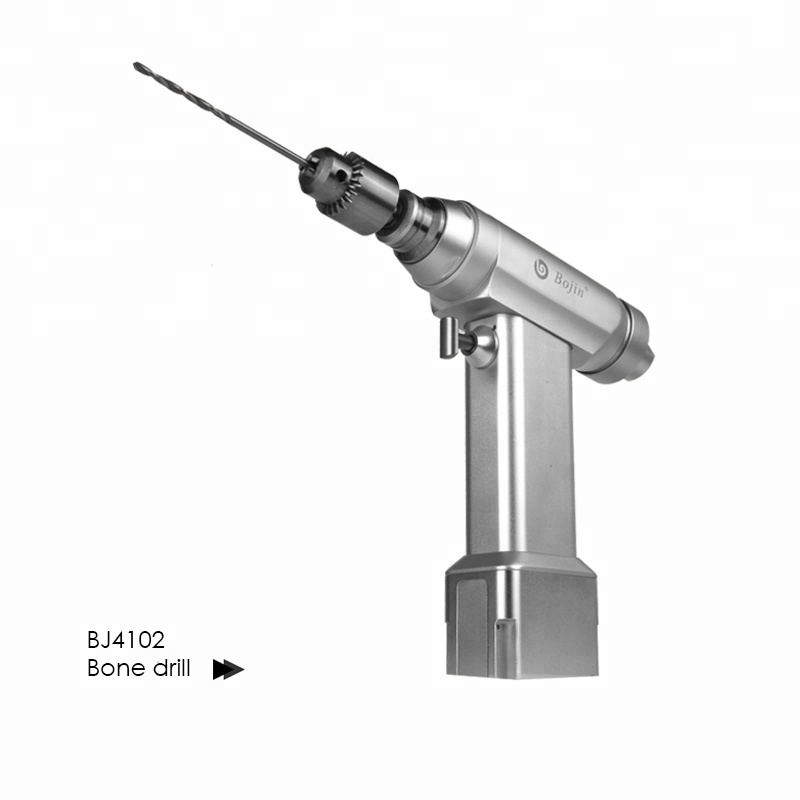

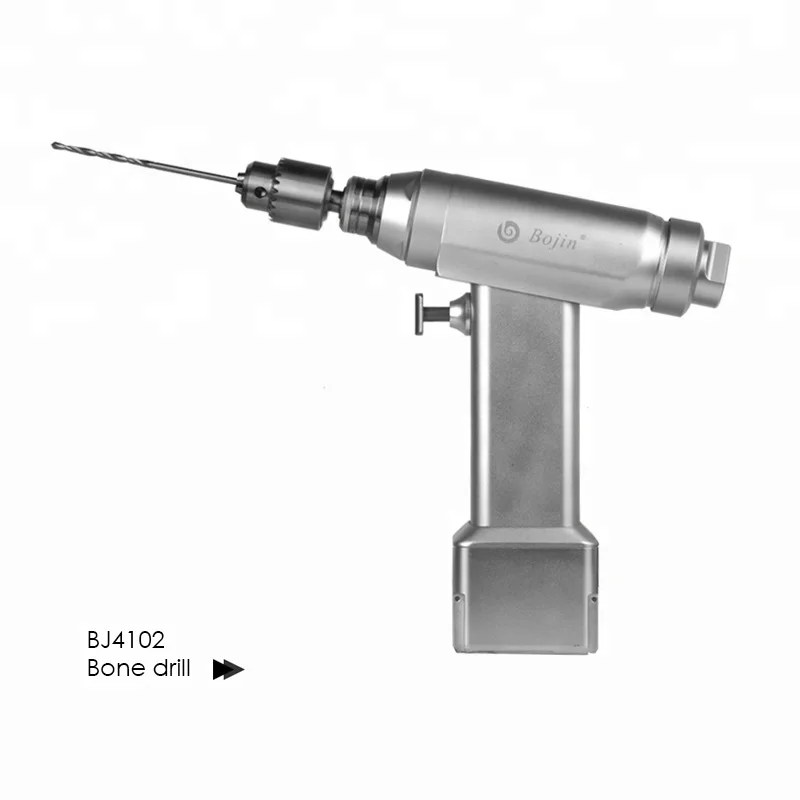

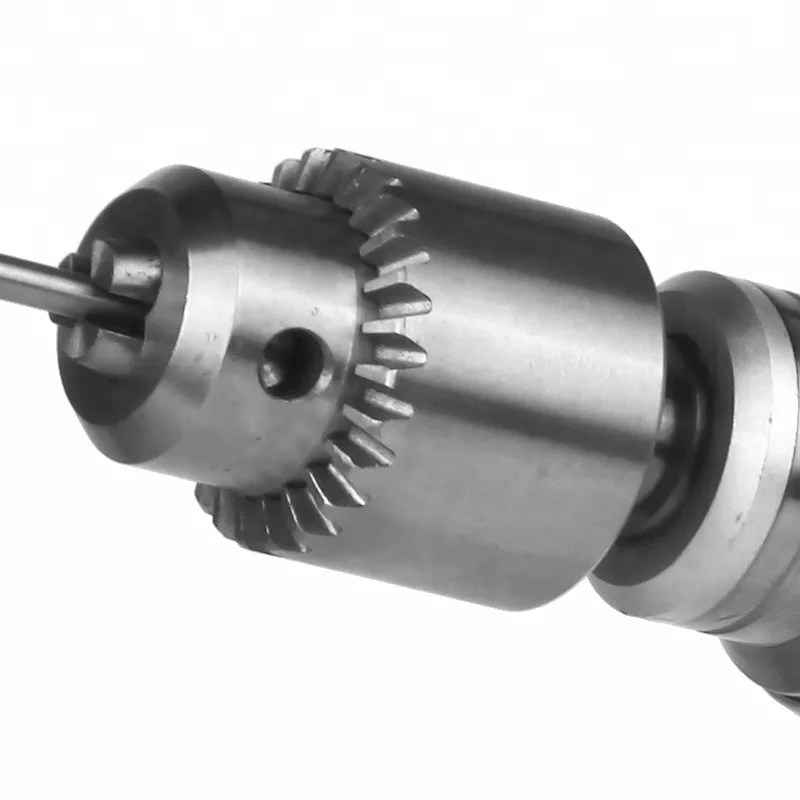

BJ4102 Bone drill (System 4000)
- High power output of 110w
- Operates at a speed of 1100 r.p.m
- Torque of 3.2 Nm
- Operates at a voltage of 14.4V
- Low noise level of ≤75 db
- Autoclavable for sterilization at 155°C
- Comes with a 2-year warranty
- SKU
- D645A1D6A79D
- Brand
- Bojin
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
BJ4102 Bone Drill
High-performance cordless bone drill engineered for trauma surgery plate and screw fixation. Delivers 110W output at 1100 rpm with 3.2 Nm torque, operates at 14.4V, and maintains low noise levels ≤75 dB. Fully autoclavable handpiece with ergonomic design for extended surgical precision and reliability.
Clinical overview
The BJ4102 is a cordless bone drill system designed specifically for trauma surgery applications, particularly for drilling holes in bone to accommodate plates and screws. With its imported motor, ergonomic handpiece design, and full autoclavability, it delivers consistent performance across high-volume surgical environments. The system operates at 1100 rpm with 3.2 Nm torque, providing the balance of speed and power required for efficient bone preparation without thermal damage or excessive vibration.
The handpiece is fully autoclavable at 155°C, enabling rapid sterilisation cycles without compromising motor integrity. The nickel-metal hydride battery system is environmentally friendly and provides reliable cordless operation, with the battery removed post-surgery to preserve longevity. Low noise operation (≤75 dB) reduces surgical suite fatigue and improves communication during procedures.
Key features & surgeon benefits
Optimised power & torque
- 110W output with 3.2 Nm torque for consistent drilling
- 1100 rpm speed suitable for standard bone drilling
- Reliable motor alignment ensures precision hole placement
Cordless convenience
- 14.4V battery system eliminates cable entanglement
- Ergonomic handpiece design reduces surgeon fatigue
- Quick battery swap enables continuous surgical flow
Full autoclavability
- Handpiece autoclavable at 155°C for rapid turnaround
- Eliminates cold sterilisation delays
- Supports high-throughput surgical schedules
Long service life
- 2-year handpiece warranty with 3-month battery coverage
- Low noise operation (≤75 dB) reduces component stress
- Environmentally friendly NiMH battery technology
Technical specifications
| Output power | 110 W |
|---|---|
| Speed | 1100 rpm |
| Torque | 3.2 Nm |
| Operating voltage | 14.4 V |
| Noise level | ≤75 dB |
| Sterilisation temperature | 155°C (handpiece); battery non-autoclavable |
| Sterilisation pressure | 1.6 MPa |
| Warranty | 2 Year Manufacturer Warranty (handpiece); 3 months (battery & consumables) |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| Handpiece | Cordless bone drill handpiece with ergonomic design | 1 |
| Battery | 14.4V nickel-metal hydride rechargeable battery | 1 |
| Charger | Battery charging unit | 1 |
| Aseptic battery transfer ring | Sterile battery interface for intraoperative use | 1 |
| Operating manual | User and maintenance instructions | 1 |
| Guarantee card | Warranty documentation | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss pricing, delivery timelines, and customisation options for the BJ4102 Bone Drill system. We provide technical support and clinical guidance to ensure optimal integration into your surgical workflow.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
Related products
See all →

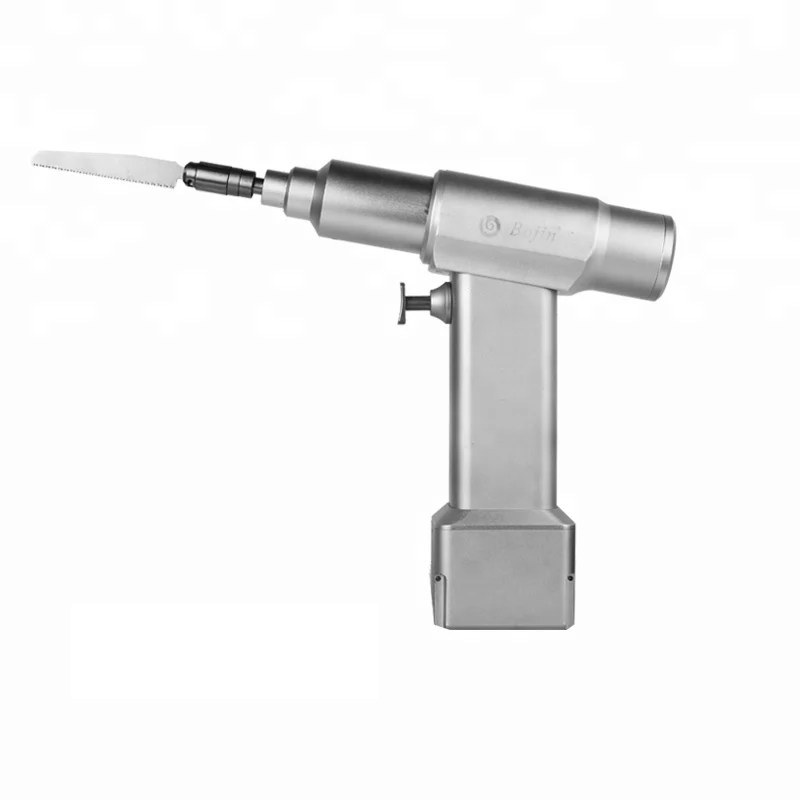

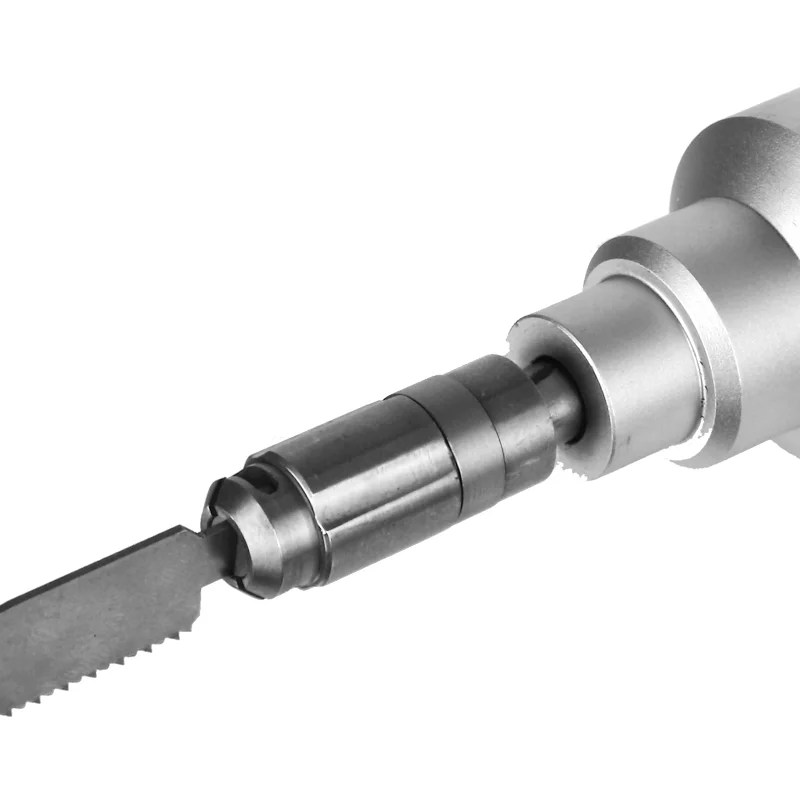

BJ4109 Surgical Reciprocating Saw for Joint Replacement Surgery
