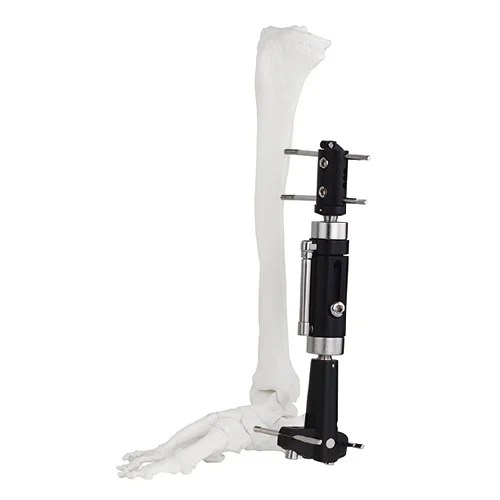

Ankle Joint Fragment External Fixator
- External fixator for ankle joint fragments
- Available in sizes: M, L, XL
- Includes 4 pieces of 6*130mm pins
- Comes with a 6mm hex wrench and screwdriver
- Helps stabilize and align ankle joint fractures.
- SKU
- 6100-05000
- Brand
- Orthopedic Drills
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Ankle Joint Fragment External Fixator
Precision external fixation system designed for stabilization and alignment of ankle joint fractures. Available in three sizes (M, L, XL) with comprehensive instrumentation for reliable intraoperative control and patient outcomes.
Clinical overview
The Ankle Joint Fragment External Fixator is engineered for surgeons managing complex ankle fractures requiring precise fragment reduction and sustained stabilization. This system provides rigid fixation across the ankle joint, enabling early mobilization protocols and reducing complications associated with malunion or nonunion. The modular design accommodates anatomical variation across patient populations while maintaining biomechanical integrity throughout the healing phase.
Each configuration includes four 6mm pins (130mm or 150mm depending on size) and essential instrumentation—6mm hex wrench and screwdriver—ensuring complete operative readiness. The system's straightforward assembly and intuitive adjustment mechanism minimize operative time and learning curve, making it suitable for high-volume trauma centers and specialist foot and ankle units.
Key features & surgeon benefits
Multi-Size Range
- Three size options (M, L, XL) accommodate diverse patient anatomy
- Flexible pin lengths (130mm and 150mm) for optimal cortical purchase
- Comprehensive fixation across ankle joint complex
Streamlined Assembly
- Four precision-engineered pins per set ensure rapid deployment
- Integrated hex wrench and screwdriver eliminate setup delays
- Intuitive adjustment mechanism reduces operative time
Cost-Effective Fixation
- Complete instrumentation included—no additional purchases required
- Durable stainless steel construction ensures longevity
- Competitive pricing without compromise on quality
Adaptable Design
- Available in M, L, and XL configurations for anatomical fit
- OEM customization options for specialized applications
- Compatible with standard orthopedic instrumentation
Technical specifications
| Indications | Ankle joint fragment fractures, complex ankle injuries requiring external stabilization |
|---|---|
| Sizes / range | M, L, XL |
| Material | Stainless Steel |
| Sterilisation | As applicable |
| Packaging | Complete kit with pins, hex wrench, and screwdriver |
| Warranty | 2 Year Manufacturer Warranty |
Standard instrument composition
| Item | Description | Qty |
|---|---|---|
| 6mm Pins (M size) | 6×130mm stainless steel pins | 4 |
| 6mm Pins (L/XL size) | 6×150mm stainless steel pins | 4 |
| Hex Wrench | 6mm hex wrench for pin assembly | 1 |
| Screwdriver | 6mm screwdriver for adjustment | 1 |
Get in touch for pricing & availability
Contact our sales team to discuss your ankle fixation requirements, request a detailed quote, or arrange a product demonstration. We offer rapid delivery and comprehensive technical support.
Email: [email protected]
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
No reviews yet — be the first to share your experience.
